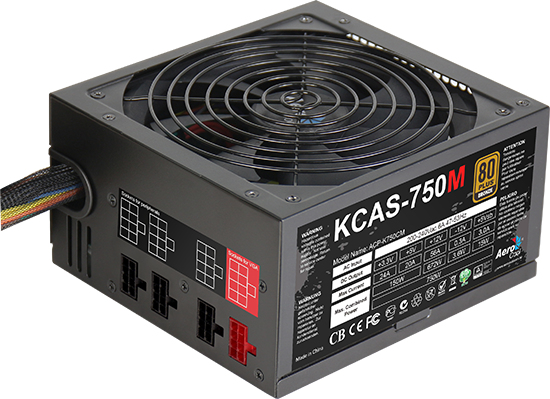

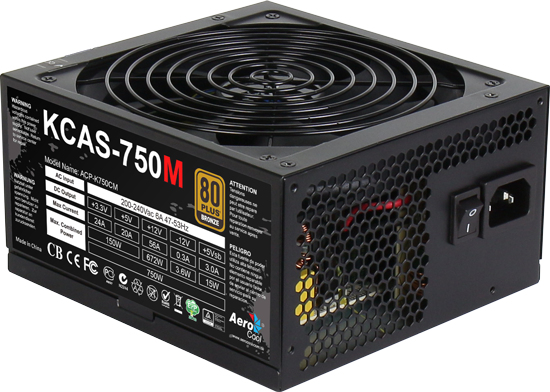

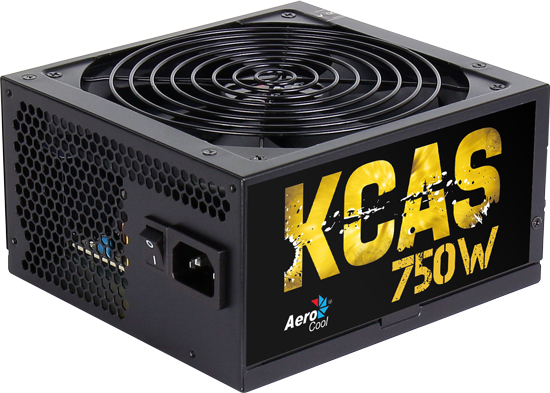

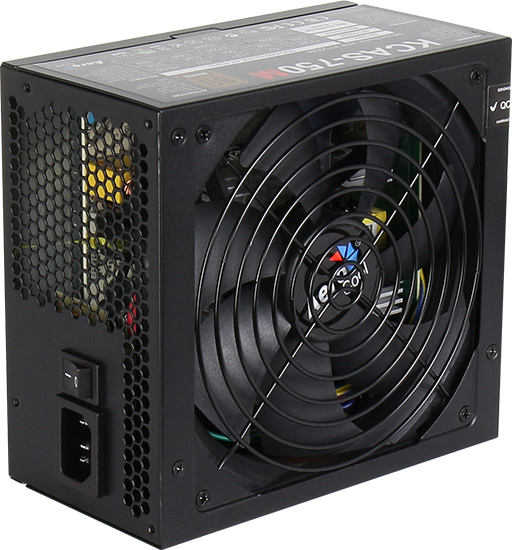

Aerocool KCAS-750M power supply unit

Aerocool KCAS-750M power supply unit

750 W 20+4 pin ATX ATX Black

Model KCAS-750MPart no. 4713105953503

39 specifications
  • Noise32.2 dB
  • ColourBlack
  • Total power750 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
  • Sustainability certificatesENERGY STAR
See all specifications

Overview

Noise
32.2 dB
Colour
Black
Total power
750 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Sustainability certificates
ENERGY STAR
Brand
Aerocool
Model
KCAS-750M
Part number
4713105953503
Also known as
Aerocool KCAS-750M power supply unit 750 W 20+4 pin ATX ATX Black

Specifications

39 specifications in 7 groups

Power

Total power750 W
AC input voltage200 - 240 V
AC input frequency47 - 53 Hz
Input current6 A
Maximum input current (@110V)+12V,+3.3V,+5V,+5Vsb,-12V
Power Factor Correction (PFC) typeActive
Combined power (+12V)672 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)24 A
Max output current (+12V)56 A
Max output current (+5V)20 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Efficiency85%
Power protection featuresOver power, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector20+4 pin ATX
Number of SATA power connectors7
Peripheral (Molex) power connectors (4-pin)4
PCI Express power connectors (6+2 pin)4
CPU power connector (4+4 pin)Yes
ATX power connector (20+4 pin)Yes
Floppy disk drive connectorYes
Cabling typeSemi-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Bronze
ATX version2.4
Noise level32.2 dB

Design

Product colourBlack
Fan diameter14 cm
Number of fans1 fan(s)
Fan locationTop
On/off switchYes

Certificates

Compliance certificatesRoHS

Technical details

Sustainability certificatesENERGY STAR

Other features

Noise level (silent mode, <30%)19.1 dB
Noise level (quiet mode, 50%)20.3 dB
Noise level (full-load mode, 100%)32.2 dB
