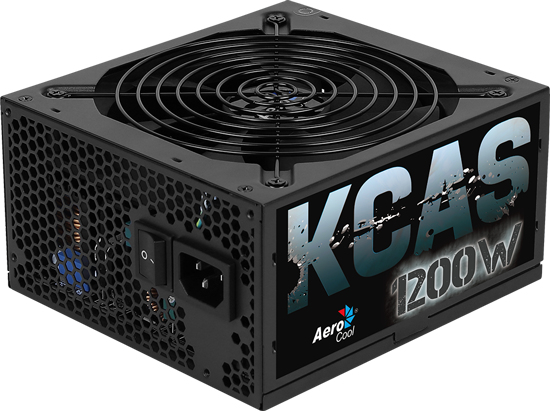

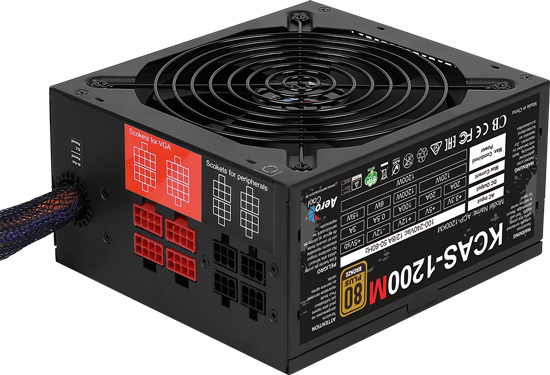

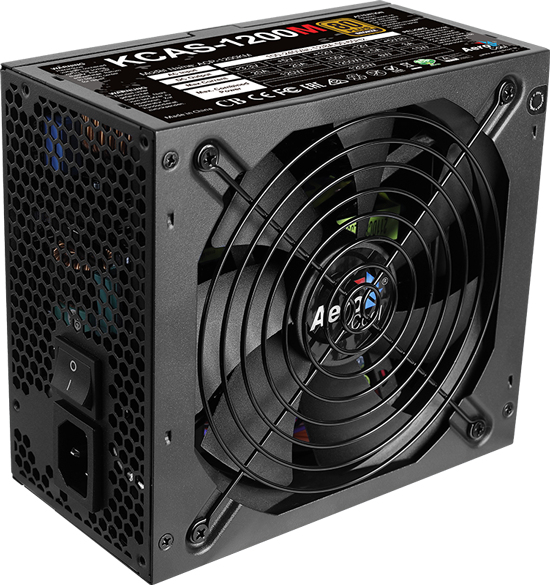

KCAS-1200M power supply unit
1200 W 20+4 pin ATX Black
Model KCAS-1200M
37 specifications
- Weight2.3 kg
- ColourBlack
- Total power1200 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width86 mm
Overview
- Weight
- 2.3 kg
- Colour
- Black
- Total power
- 1200 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 86 mm
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- KCAS-1200M
- Part number
- KCAS-1200M
- Also known as
- Aerocool KCAS-1200M power supply unit 1200 W 20+4 pin ATX Black
Specifications
37 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 16 - 8 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1200 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.4 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

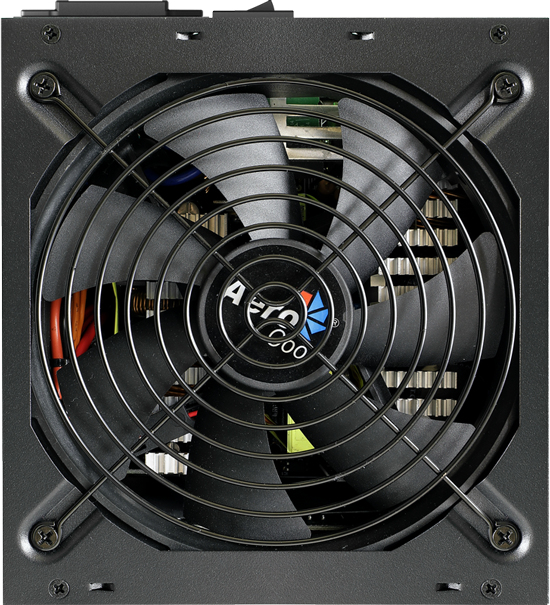

| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 86 mm |
| Depth | 150 mm |
| Height | 165 mm |
| Weight | 2.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 211 mm |
| Package depth | 248 mm |
| Package height | 95 mm |
| Package weight | 2.9 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case gross weight | 15.2 kg |
| Shipping (inner) case height | 23.1 cm |
| Shipping (inner) case length | 49.5 cm |
| Shipping (inner) case width | 26.3 cm |
