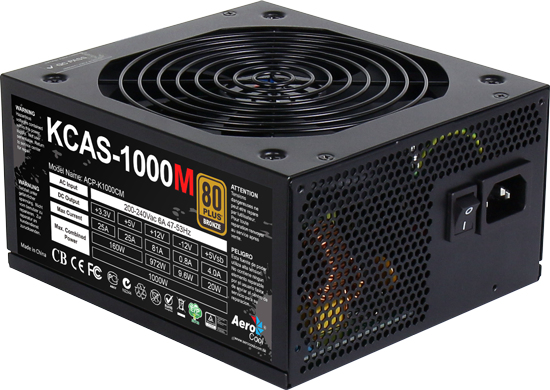

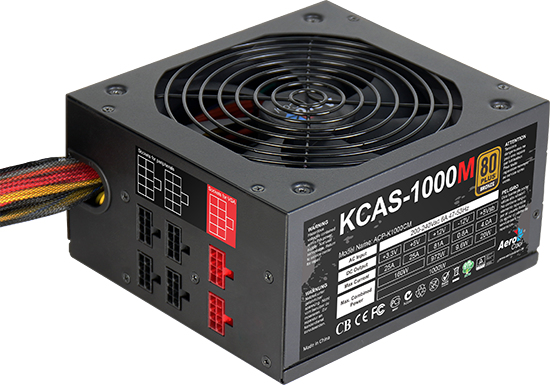

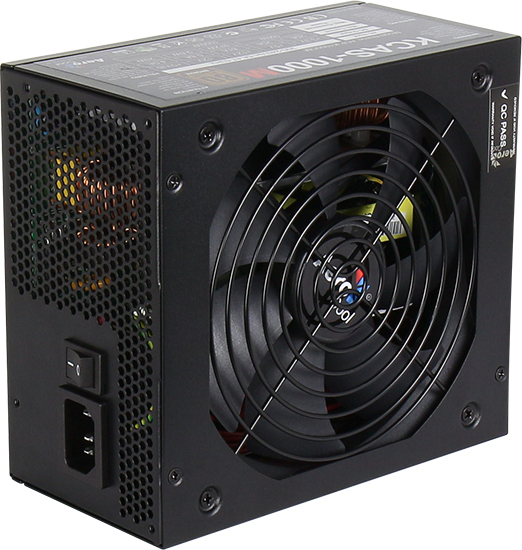

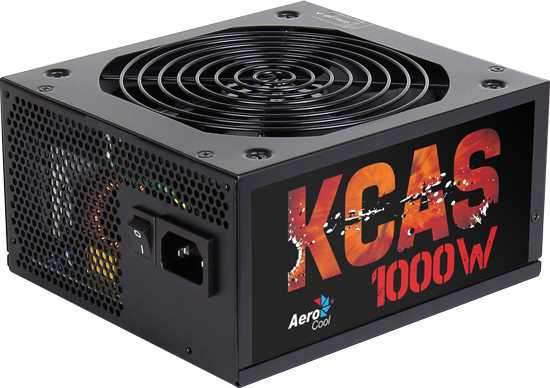

Aerocool KCAS-1000M power supply unit
1000 W 20+4 pin ATX ATX Black
Model KCAS-1000MPart no. 4713105953527EAN 4713105953862
38 specifications
- Noise32.2 dB
- ColourBlack
- Total power1000 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Sustainability certificatesENERGY STAR
Overview
- Noise
- 32.2 dB
- Colour
- Black
- Total power
- 1000 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Sustainability certificates
- ENERGY STAR
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- KCAS-1000M
- Part numbers
- 4713105953527, KCAS-1000M
- EAN / UPC
- 4713105953862
- Also known as
- Aerocool KCAS-1000M power supply unit 1000 W 20+4 pin ATX ATX Black
Specifications
38 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 53 Hz |
| Input current | 6 A |
| Maximum input current (@110V) | +12V,+12V6,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+12V) | 972 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 20 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 81 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 4 A |
| Efficiency | 85% |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 10 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6+2 pin) | 6 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.4 |
| Noise level | 32.2 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Noise level (silent mode, <30%) | 19.1 dB |
| Noise level (quiet mode, 50%) | 20.3 dB |
| Noise level (full-load mode, 100%) | 32.2 dB |
