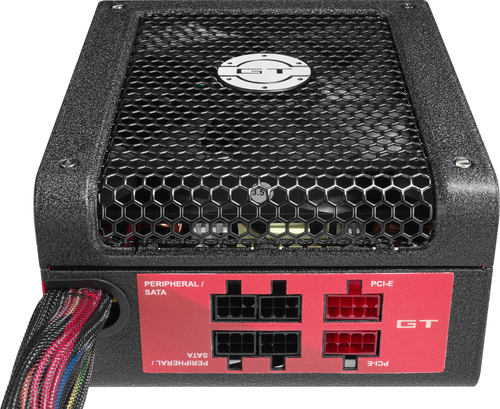

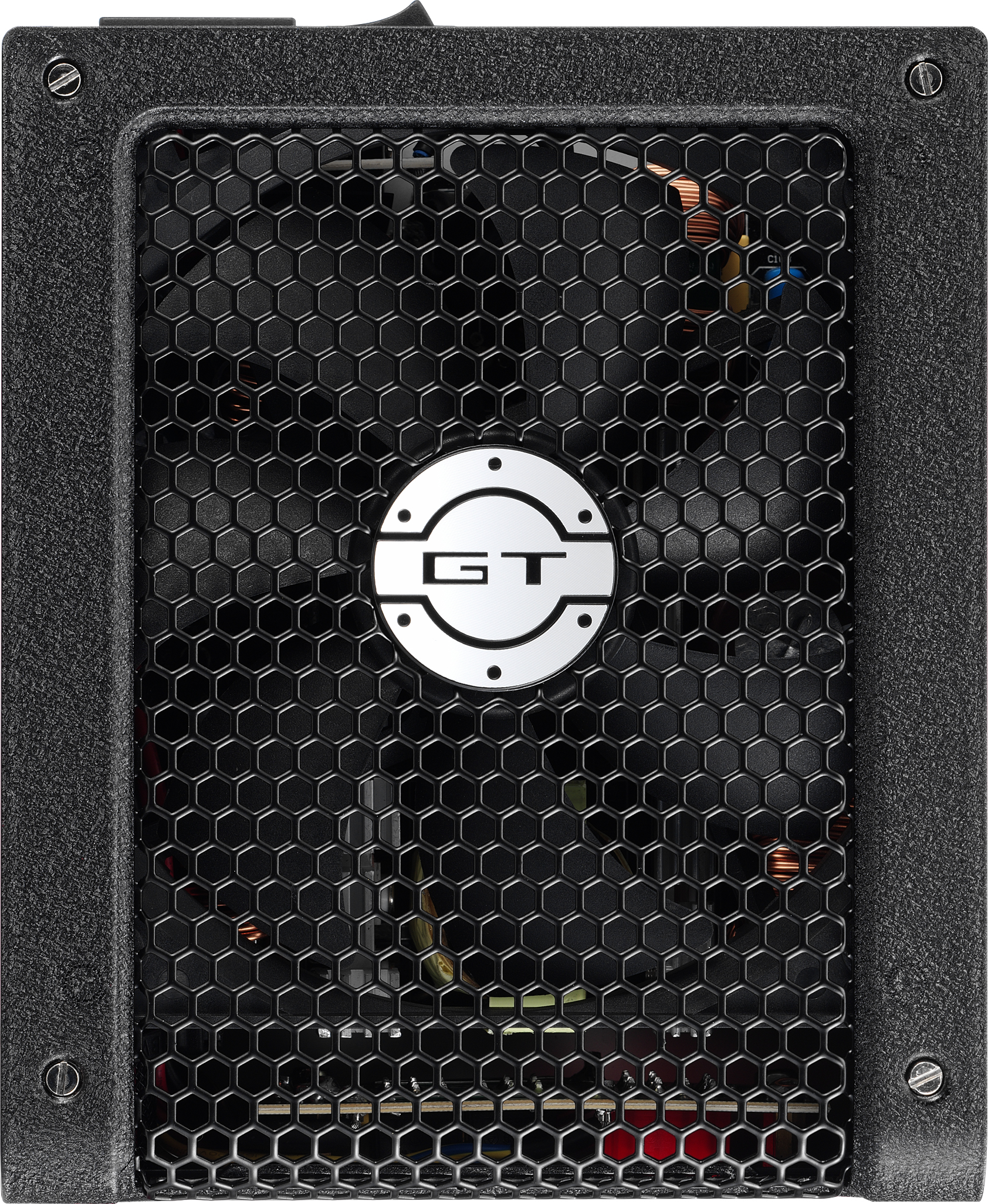

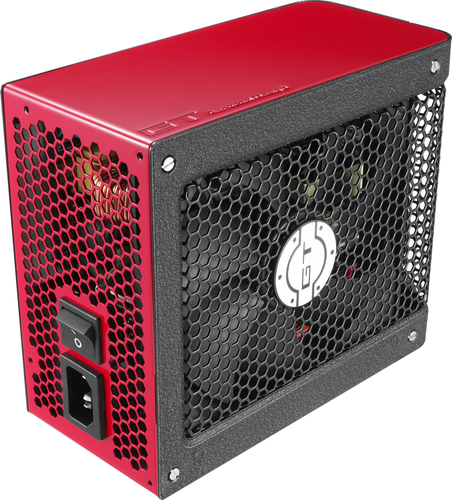

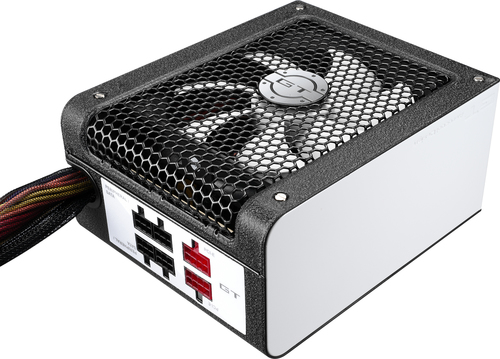

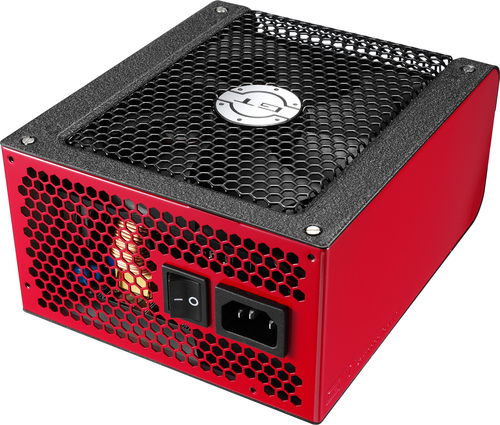

Aerocool GT700S power supply unit
700 W 20+4 pin ATX ATX Black, Red
Model GT700SPart no. EN50005EAN 4710700950005
47 specifications
- Noise29.1 dB
- ColourBlack, Red
- Total power700 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 29.1 dB
- Colour
- Black, Red
- Total power
- 700 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- GT700S
- Part numbers
- EN50005, GT700S
- EAN / UPC
- 4710700950005
- Also known as
- Aerocool GT700S power supply unit 700 W 20+4 pin ATX ATX Black, Red
Specifications
47 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 5 A |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-5V |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 670 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V1) | 30 A |
| Max output current (+12V2) | 26 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
| EPS version | 2.92 |
| Noise level | 29.1 dB |
| Mean time between failures (MTBF) | 120000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Red |
| Cooling type | Active |
| Fan diameter | 13.9 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC, TUV |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package weight | 2.34 kg |
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Warranty card | Yes |
| Package dimensions (WxDxH) | 279 x 236 x 125 mm |
| Parallel processing technology support | Quad-GPU SLI |
