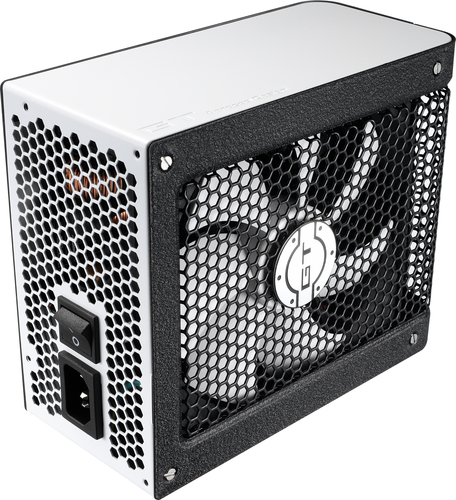

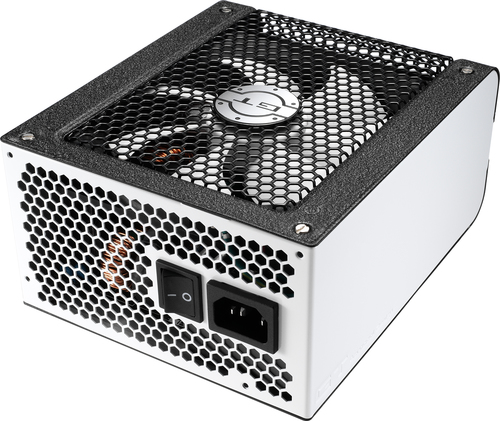

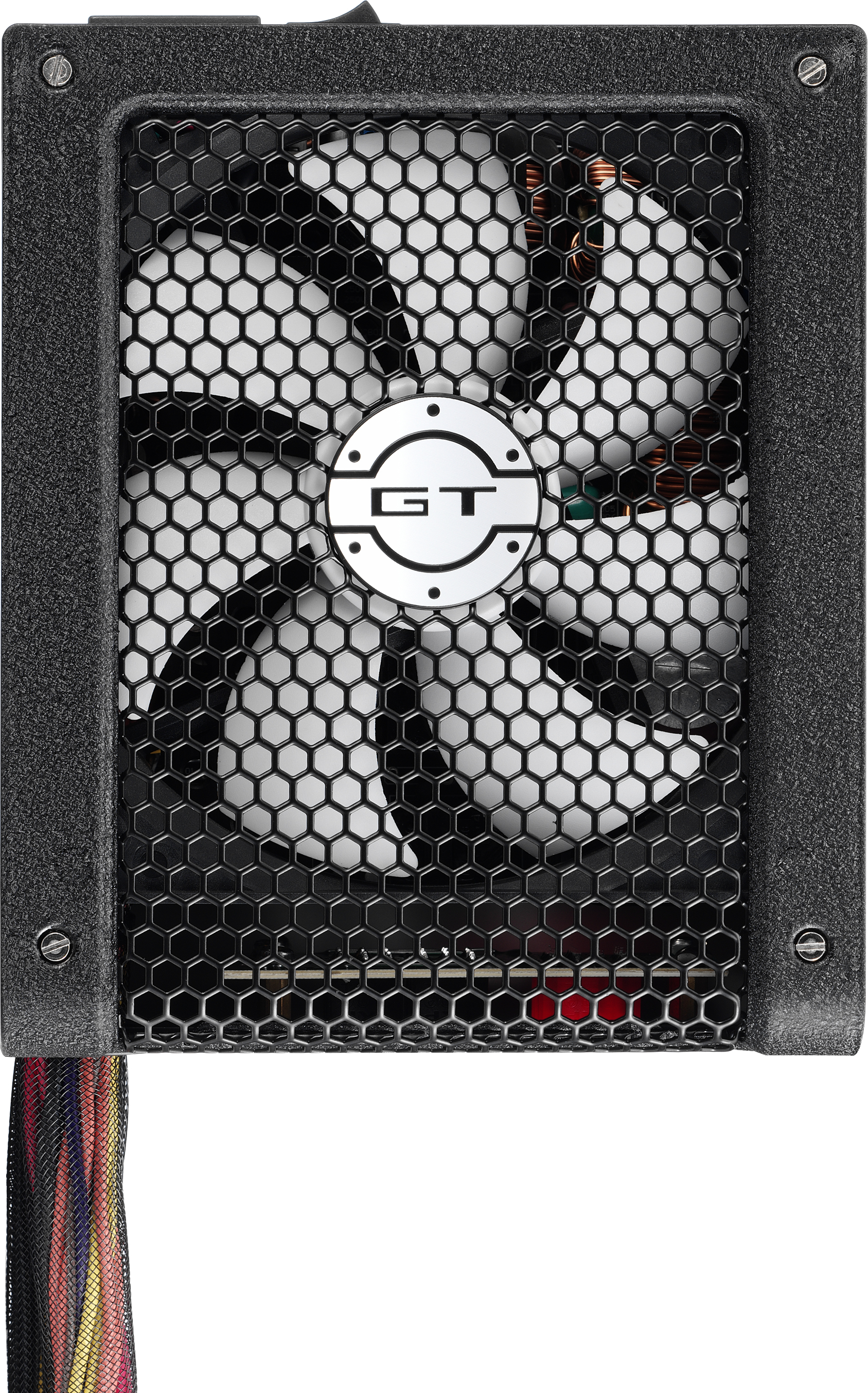

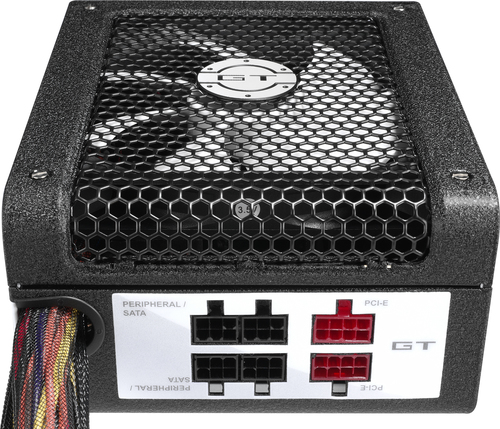

Aerocool GT1050SG power supply unit
1050 W 20+4 pin ATX ATX Black, Silver
Model GT1050SGPart no. EN50050EAN 4710700950050
47 specifications
- Noise33.6 dB
- ColourBlack, Silver
- Total power1050 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 33.6 dB
- Colour
- Black, Silver
- Total power
- 1050 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- GT1050SG
- Part numbers
- EN50050, GT1050SG
- EAN / UPC
- 4710700950050
- Also known as
- Aerocool GT1050SG power supply unit 1050 W 20+4 pin ATX ATX Black, Silver
Specifications
47 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 1050 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 15 A |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-5V |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 160 W |
| Combined power (+12V) | 1020 W |
| Combined power (+5V) | 160 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 20 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 60 A |
| Max output current (+12V2) | 60 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 4 A |
| Efficiency | 92% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6+2 pin) | 6 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.3 |
| EPS version | 2.92 |
| Noise level | 33.6 dB |
| Mean time between failures (MTBF) | 120000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Cooling type | Active |
| Fan diameter | 13.9 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC, TUV |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package weight | 3.4 kg |
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Warranty card | Yes |
| Package dimensions (WxDxH) | 287 x 273 x 125 mm |
| Parallel processing technology support | Quad-GPU SLI |
