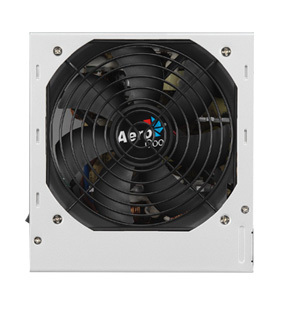

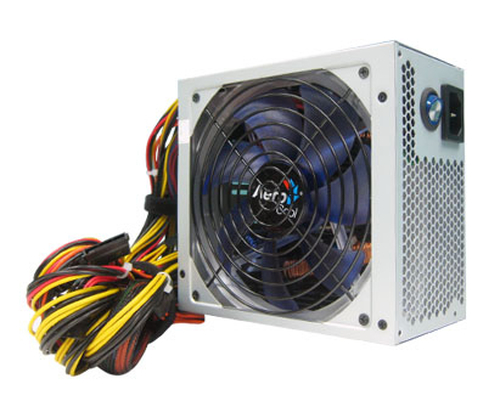

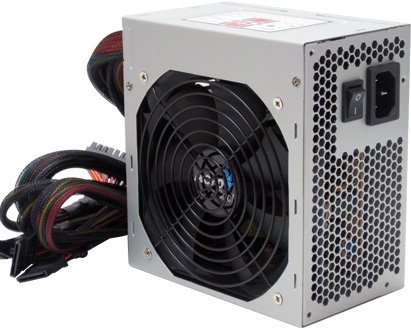

Aerocool E80 power supply unit
500 W 20+4 pin ATX ATX Silver
Model E80Part no. EN53556EAN 4710700953556
31 specifications
- Noise28.3 dB
- ColourSilver
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 28.3 dB
- Colour
- Silver
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- E80
- Part numbers
- EN53556, E80-500, E80-600, E80-700, E80500, E80600 +3 more
- EAN / UPC
- 4710700953556, 4710700953532, 4710700953549
- Also known as
- Aerocool E80 power supply unit 500 W 20+4 pin ATX ATX Silver
Specifications
31 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| Peak power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8 A |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 444 W |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 25 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 80% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6-pin) | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Noise level | 28.3 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Side |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 140 x 86 mm |
