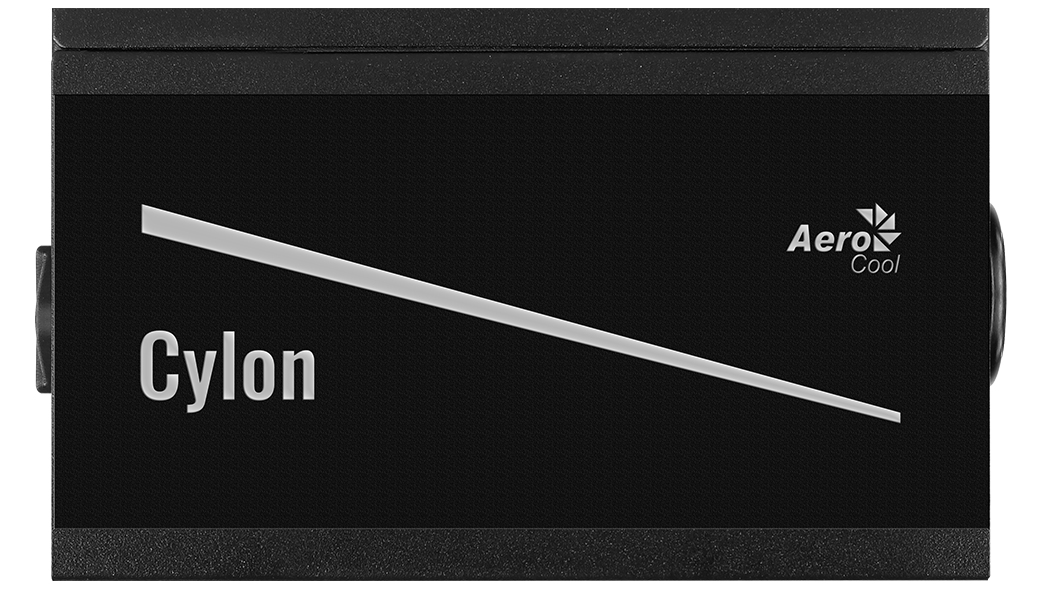

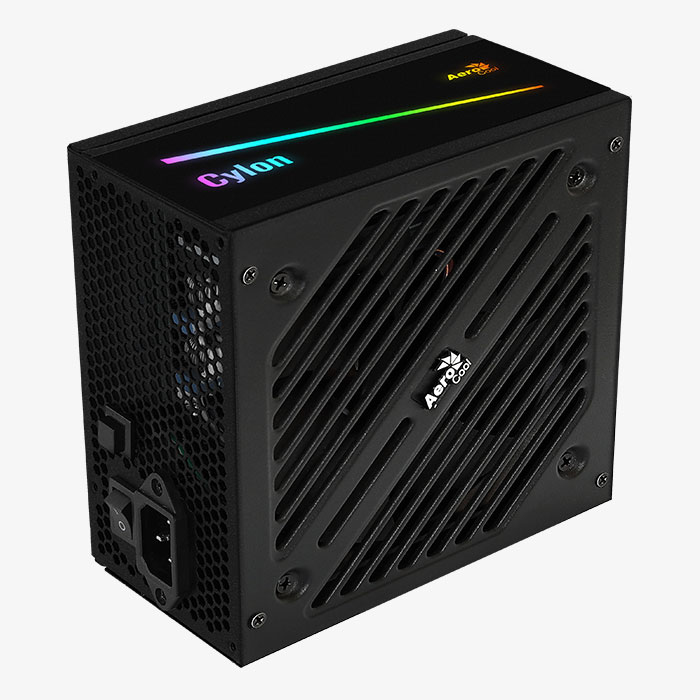

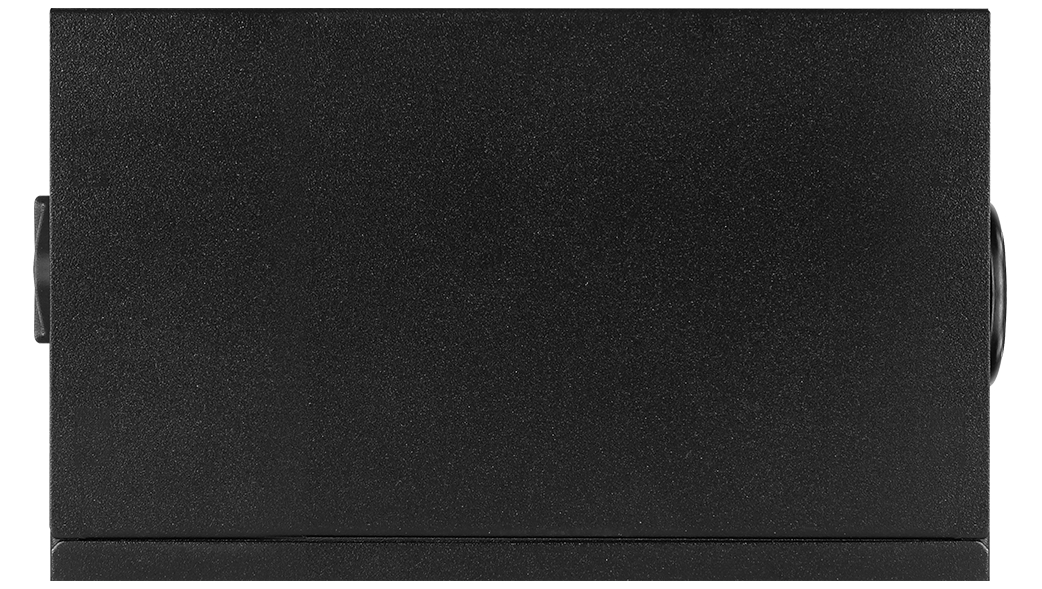

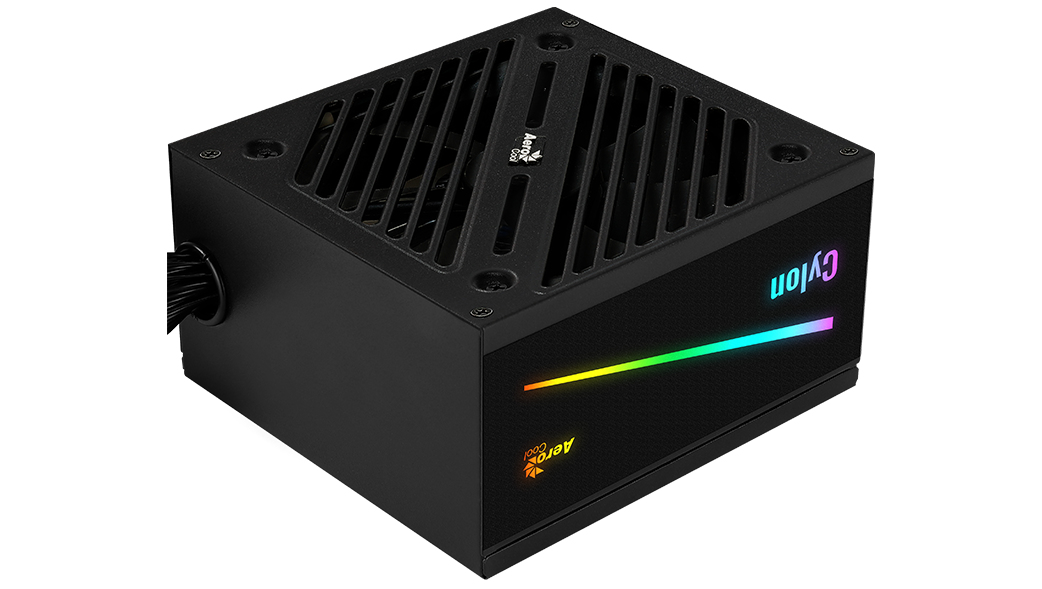

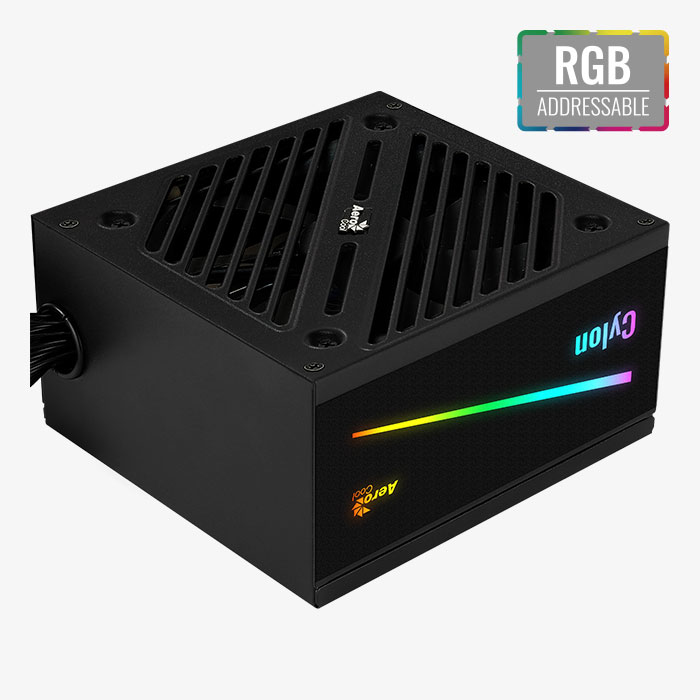

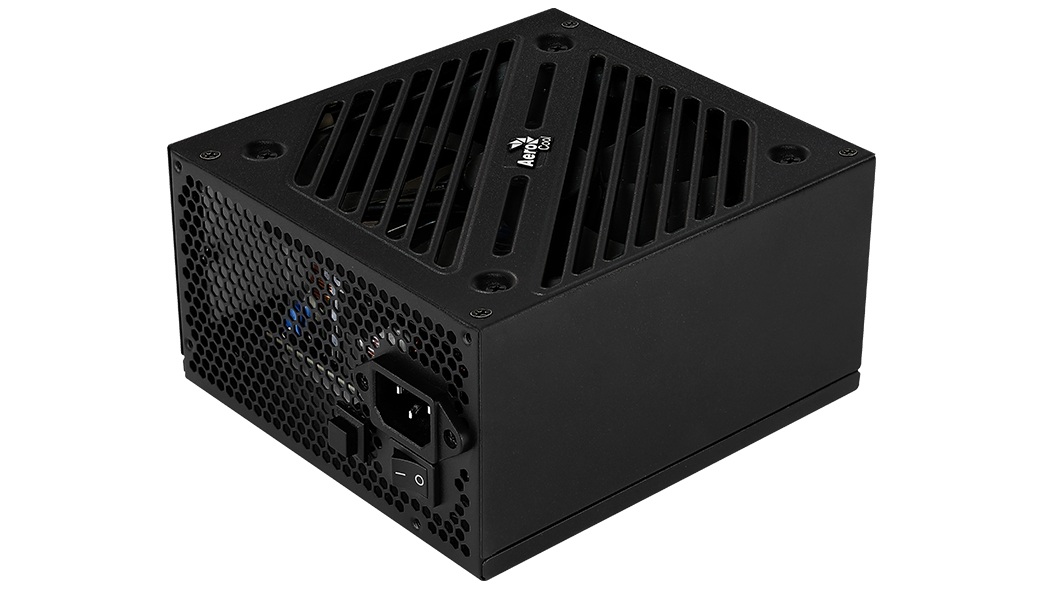

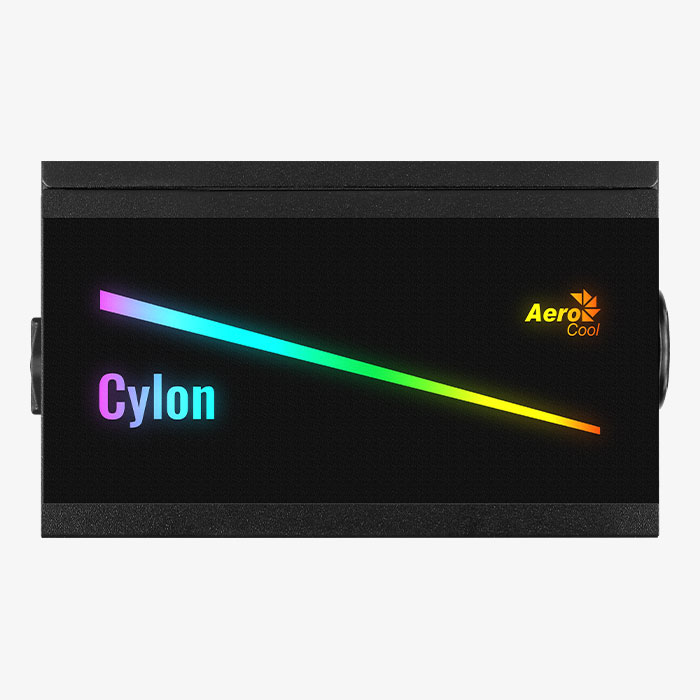

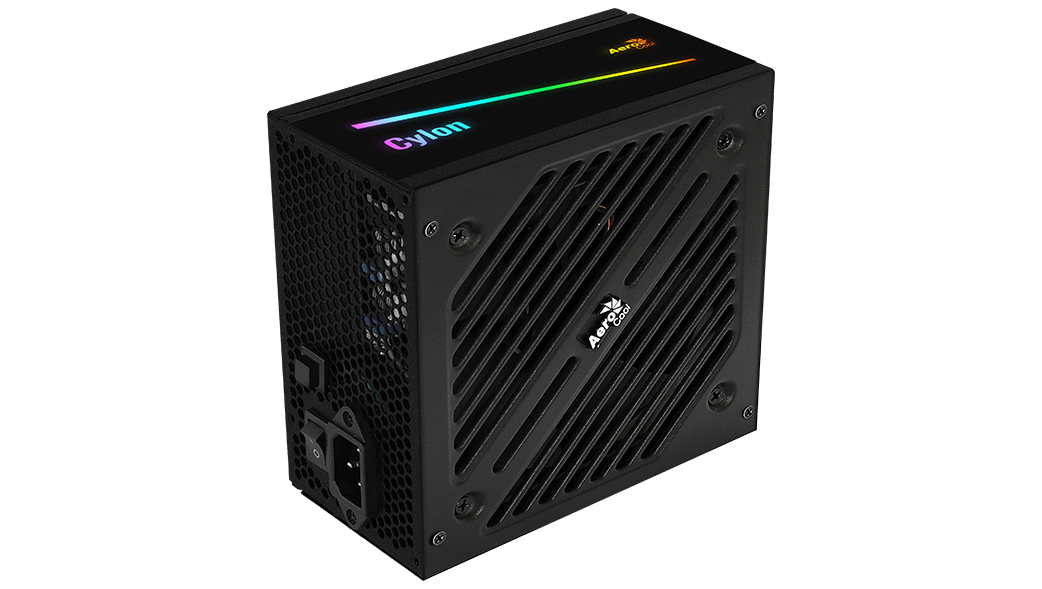

Cylon 700W
Model Cylon 700WPart no. CYLON 700WEAN 4718009153363
38 specifications
- ColourBlack
- Total power700 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Colour
- Black
- Total power
- 700 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- Cylon 700W
- Part number
- CYLON 700W
- EAN / UPC
- 4718009153363, 4718009157255, 4718009158634, 4718009159426
- Also known as
- Aerocool Cylon 700W power supply unit 20+4 pin ATX ATX Black
Specifications
38 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 636 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 53 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 50 cm |
| Number of SATA power connectors | 5 |
| SATA power cable length | 500,650,800 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 800,950 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 55 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.4 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | Yes |
| On/off switch | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Illumination colour | Multi |
