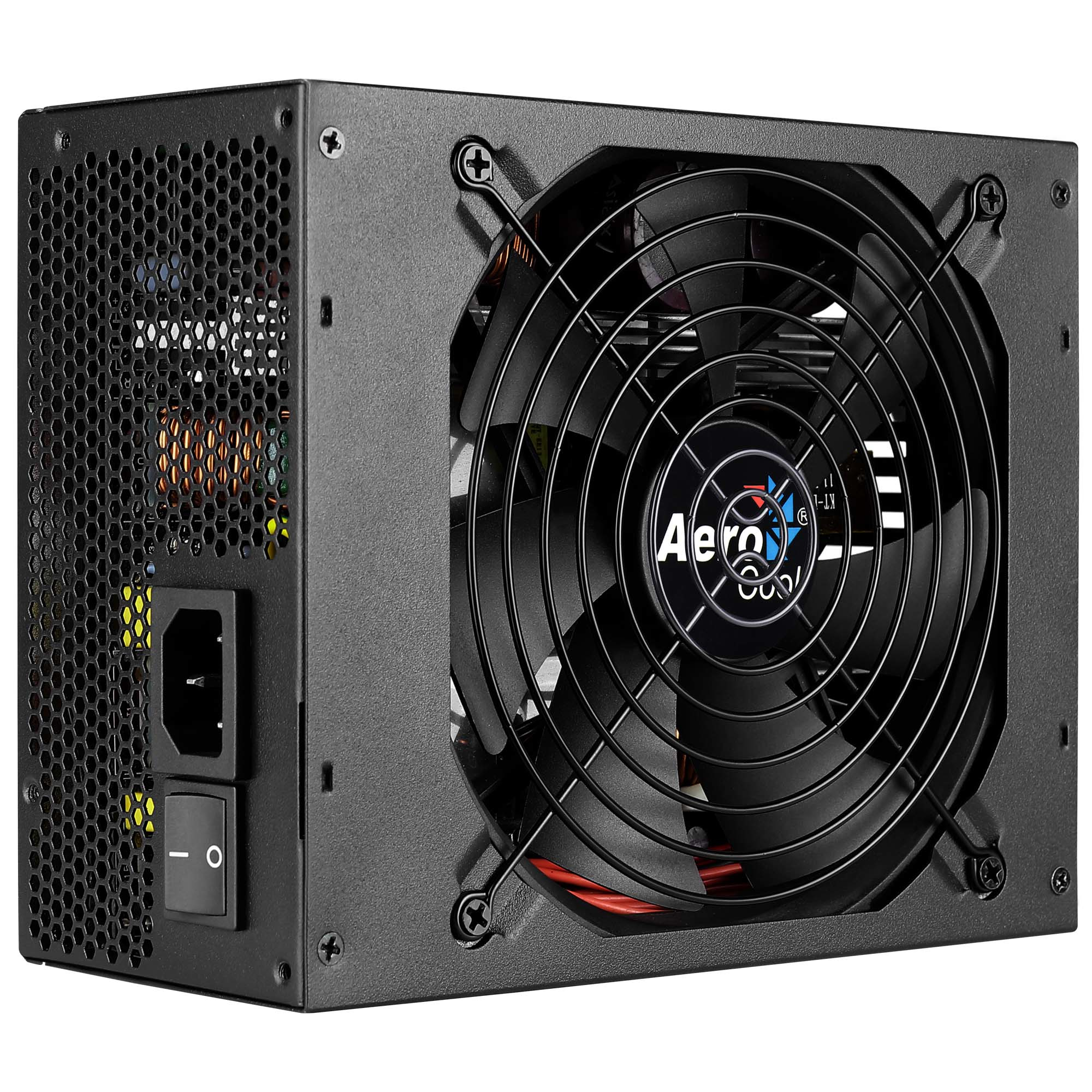

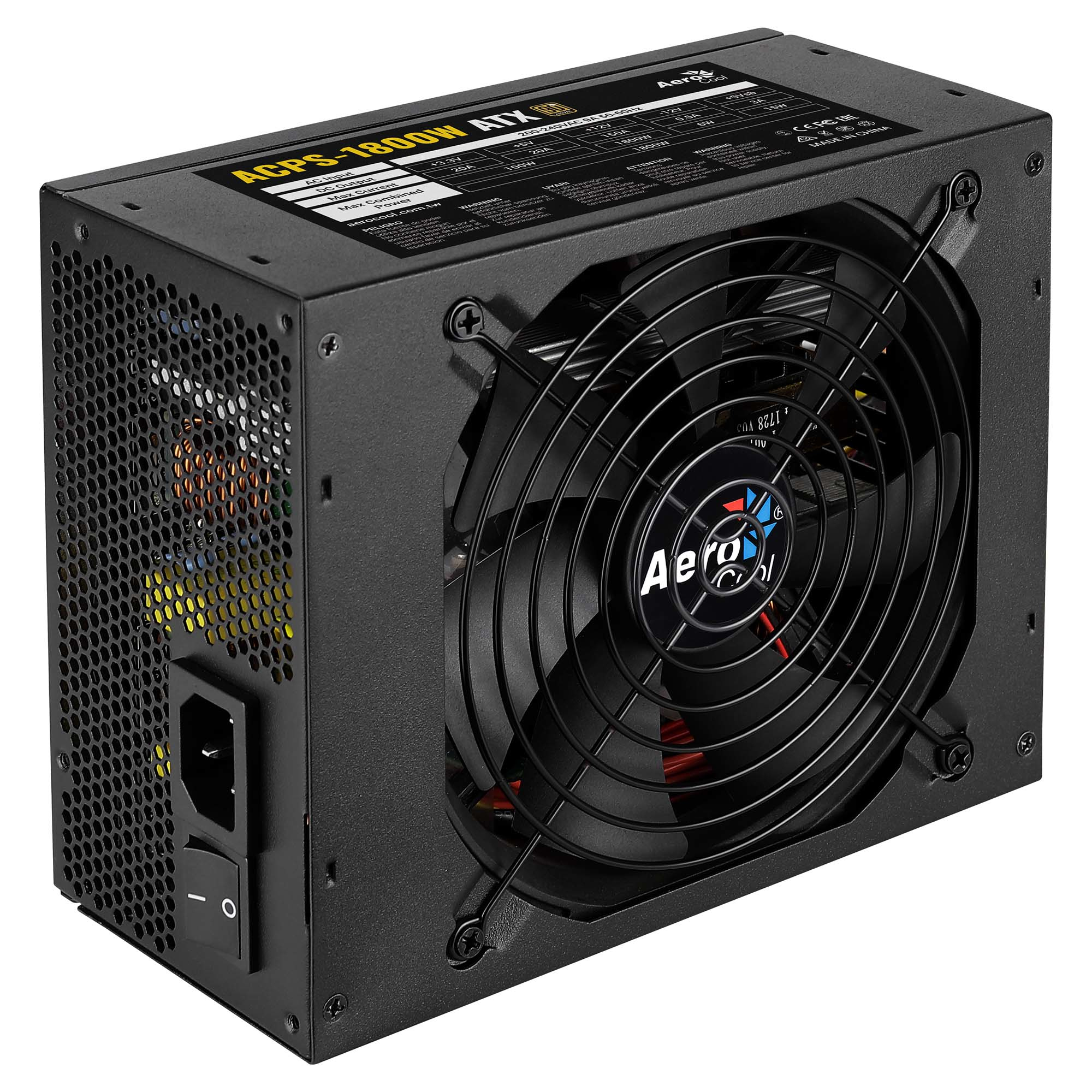

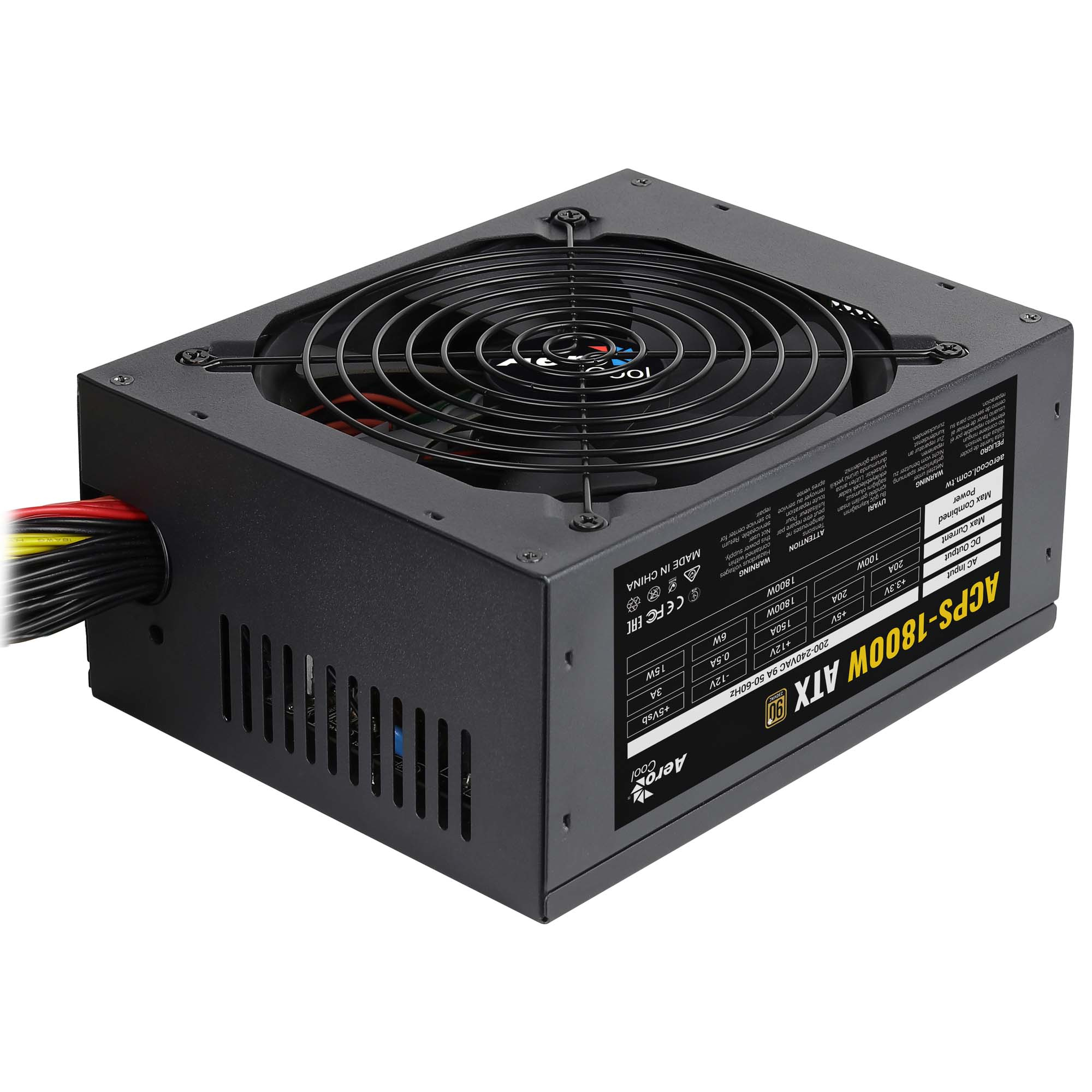

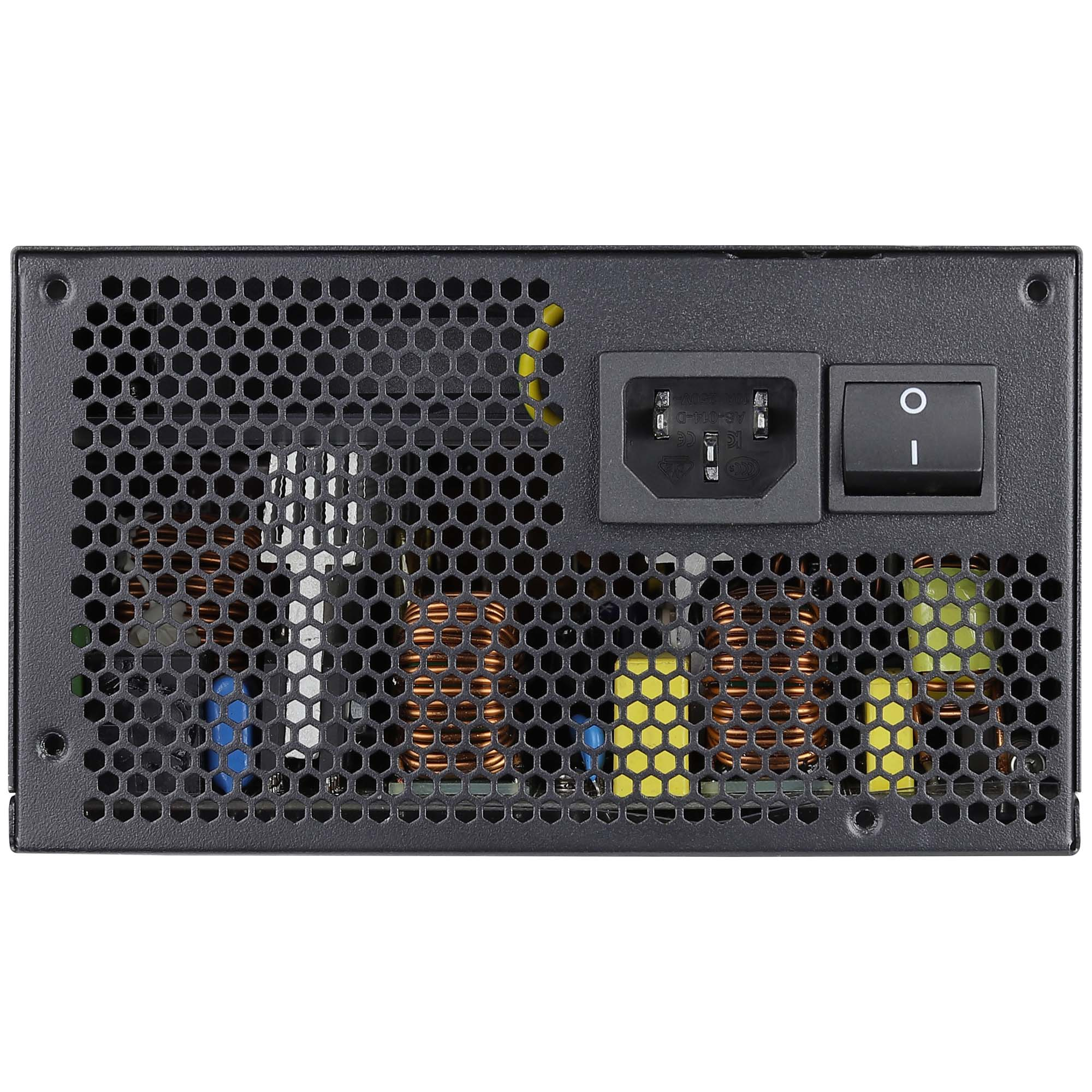

Aerocool ACPS1800 power supply unit
1800 W 20+4 pin ATX ATX Black
Model ACPS1800EAN 4713105962857
37 specifications
- ColourBlack
- Total power1800 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width185 mm
Overview
- Colour
- Black
- Total power
- 1800 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 185 mm
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- ACPS1800
- Part number
- ACPS1800
- EAN / UPC
- 4713105962857
- Also known as
- Aerocool ACPS1800 power supply unit 1800 W 20+4 pin ATX ATX Black
Specifications
37 specifications in 7 groups
Power

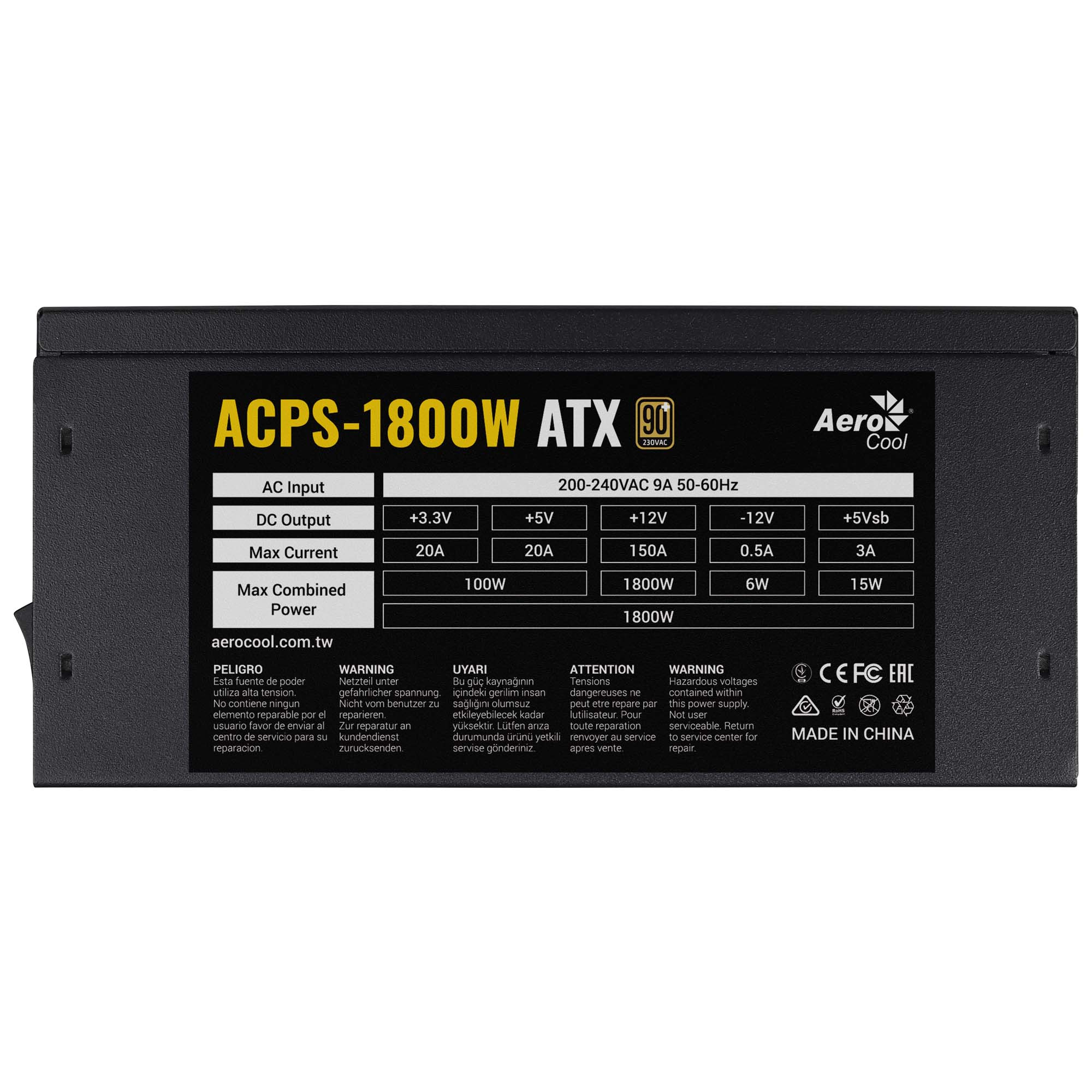

| Specification | Value |
|---|---|
| Total power | 1800 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 9 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1800 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 150 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 47 cm |
| Number of PATA power connectors | 1 |
| Number of SATA power connectors | 4 |
| SATA power cable length | 150,450 mm |
| PCI Express power connectors (6+2 pin) | 8 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 50 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

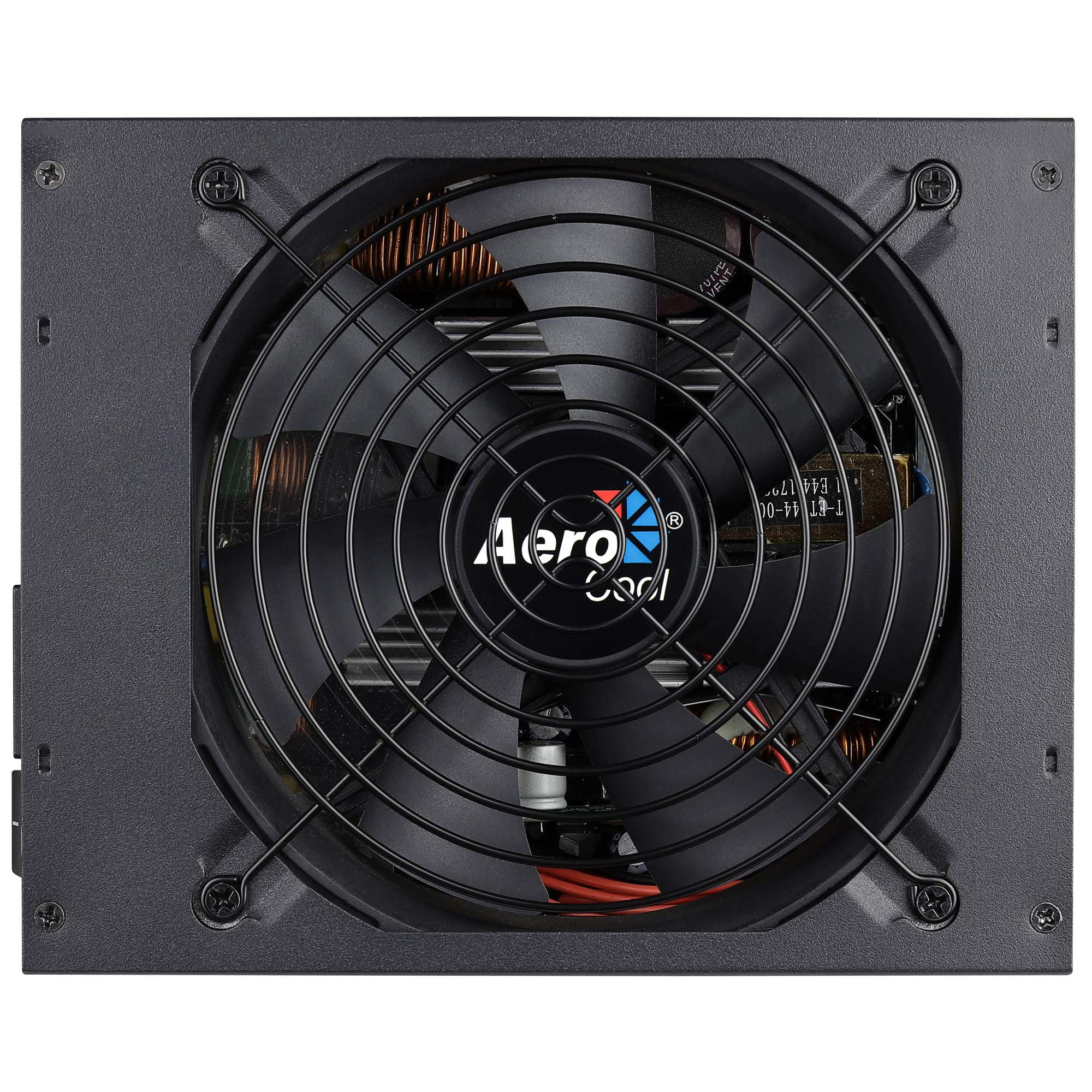

| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 2400 RPM |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FC, EAC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 185 mm |
| Depth | 150 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
What people say
Reviews & ratings
Aerocool ACPS1800 power supply unit
No reviews yet
Be the first to tell others how Aerocool ACPS1800 power supply unit works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Aerocool ACPS1800 power supply unit

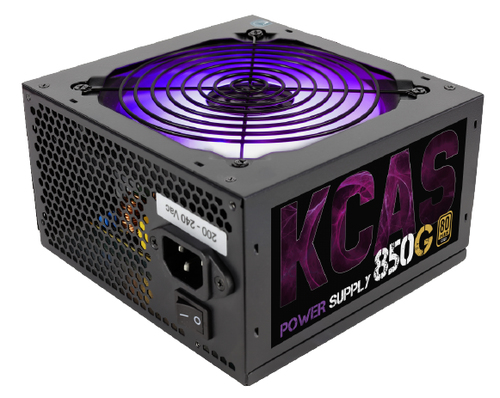

All power supply unit comparisons- Aerocool ACPS1800 power supply unit vsAerocool KCAS 850GCompare specs
- Aerocool ACPS1800 power supply unit vsAerocool VX PLUS 750Compare specs

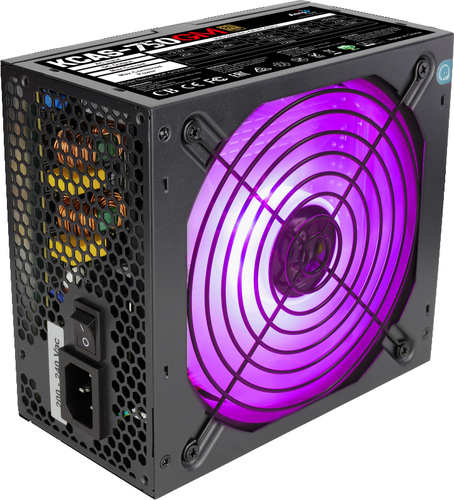

- Aerocool ACPS1800 power supply unit vsAerocool KCAS-750GM power supply unitCompare specs

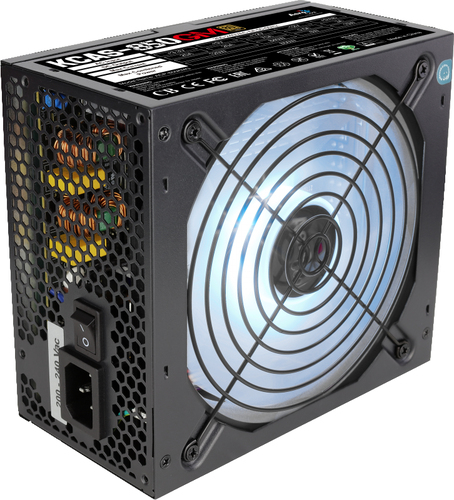

- Aerocool ACPS1800 power supply unit vsAerocool KCAS-850GM power supply unitCompare specs
