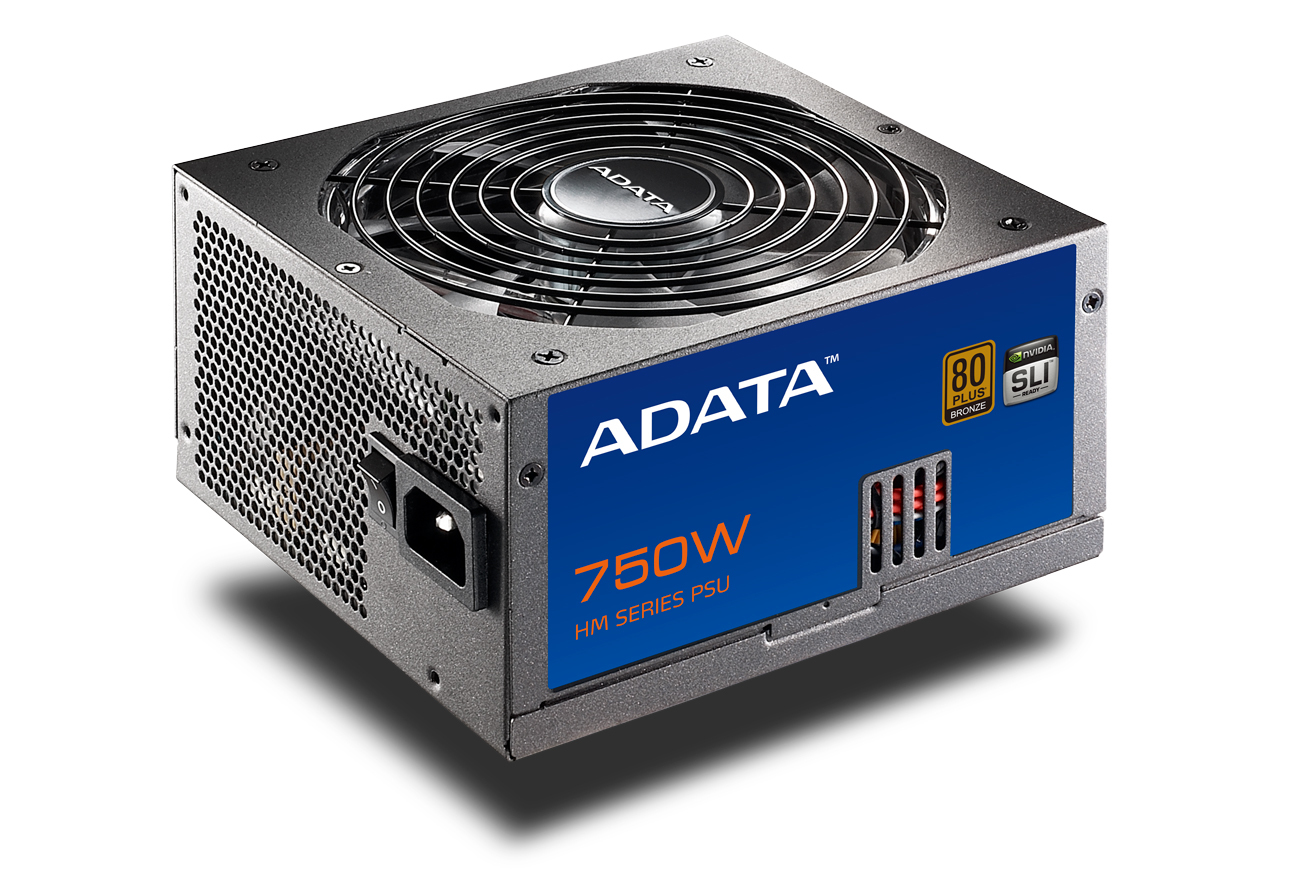

ADATA HM-750 power supply unit
750 W Grey
Model HM-750Part no. AHM750-BZ-CEUEAN 4718050609482
19 specifications
- Weight3.06 kg
- ColourGrey
- Total power750 W
- Peripheral (Molex) power connectors (4-pin)0
- Mean time between failures (MTBF)100000 h
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 3.06 kg
- Colour
- Grey
- Total power
- 750 W
- Peripheral (Molex) power connectors (4-pin)
- 0
- Mean time between failures (MTBF)
- 100000 h
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- ADATA
- Category
- Power Supply Unit
- Model
- HM-750
- Part number
- AHM750-BZ-CEU
- EAN / UPC
- 4718050609482
- Also known as
- ADATA HM-750 power supply unit 750 W Grey
Specifications
19 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| Input current | 10 A |
| Efficiency | 82% |
| Hold time | 16 ms |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Peripheral (Molex) power connectors (4-pin) | 0 |
| PCI Express power connectors (6-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CE/CB/FCC/TUV/cUL/BSMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.06 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 160 x 86 mm |
