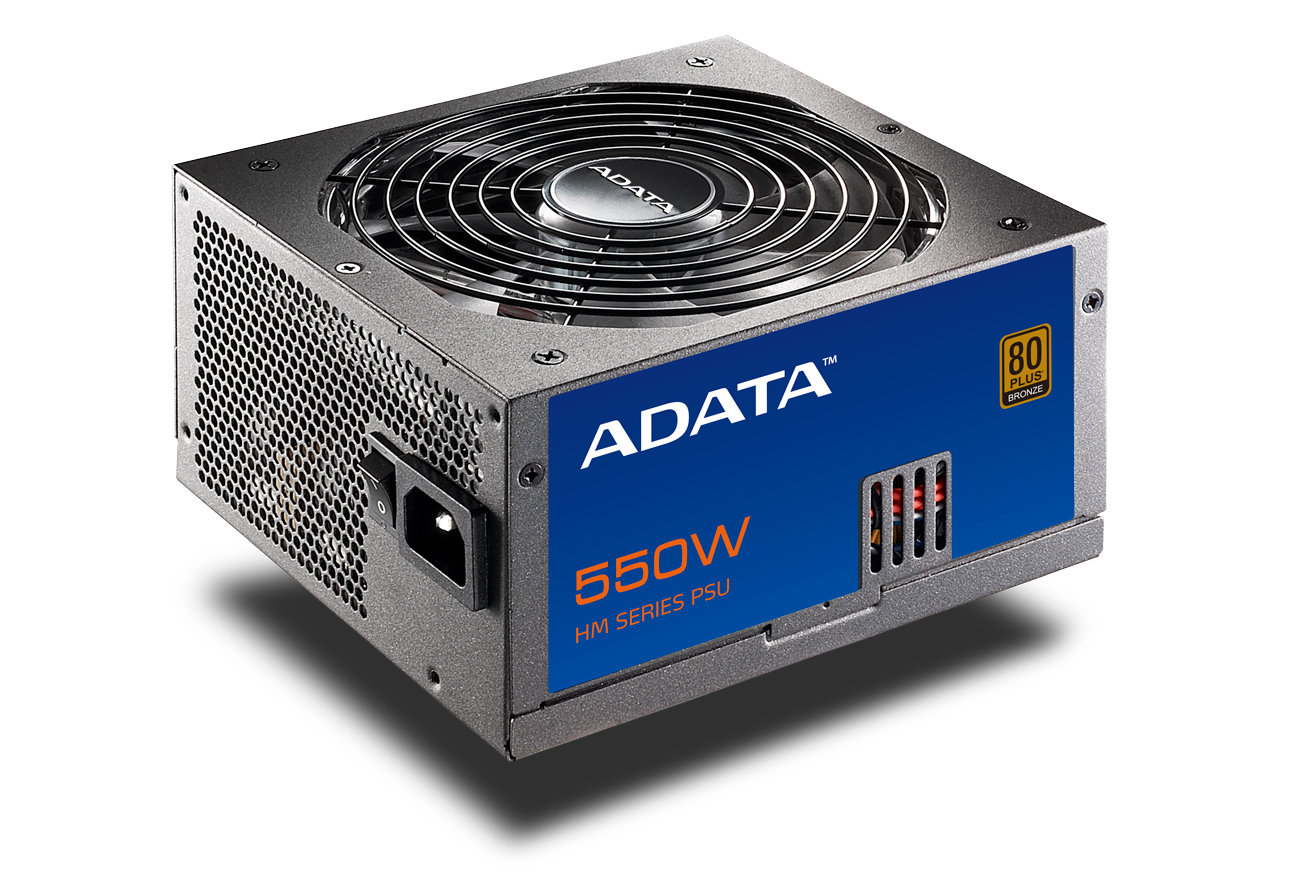

ADATA HM-550 power supply unit
550 W Grey
Model HM-550Part no. AHM550-BZ-CEUEAN 4718050609444
18 specifications
- ColourGrey
- Total power550 W
- Peripheral (Molex) power connectors (4-pin)0
- Mean time between failures (MTBF)100000 h
- Operating temperature (T-T)0 - 50 °C
- SafetyCE/CB/FCC/TUV/cUL/BSMI
Overview
- Colour
- Grey
- Total power
- 550 W
- Peripheral (Molex) power connectors (4-pin)
- 0
- Mean time between failures (MTBF)
- 100000 h
- Operating temperature (T-T)
- 0 - 50 °C
- Safety
- CE/CB/FCC/TUV/cUL/BSMI
- Brand
- ADATA
- Category
- Power Supply Unit
- Model
- HM-550
- Part number
- AHM550-BZ-CEU
- EAN / UPC
- 4718050609444
- Also known as
- ADATA HM-550 power supply unit 550 W Grey
Specifications
18 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 100 - 240 V |
| Input current | 8 A |
| Efficiency | 82% |
| Hold time | 16 ms |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Peripheral (Molex) power connectors (4-pin) | 0 |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CE/CB/FCC/TUV/cUL/BSMI |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 160 x 86 mm |
