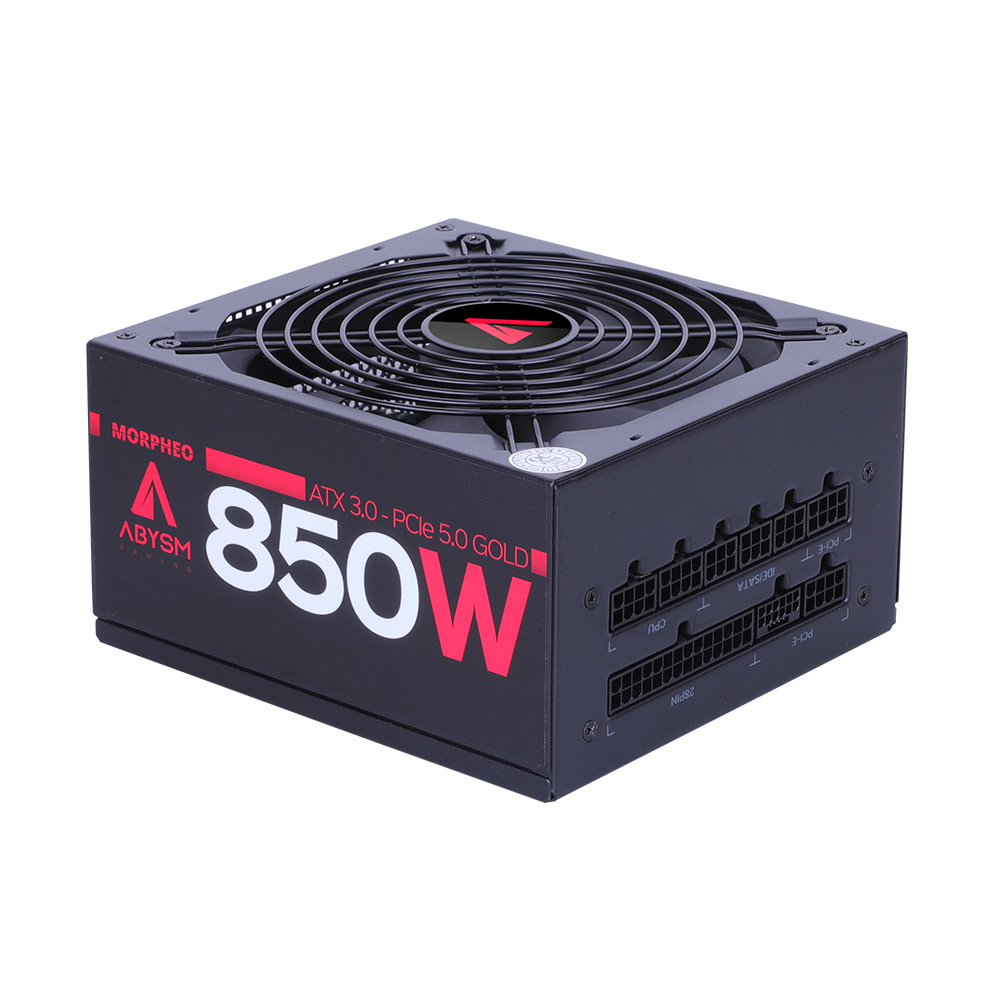

Morphep G2 ATX 850W
Model Morphep G2 ATX 850WPart no. AB53002G2EAN 6974560220793
39 specifications
- Weight2.65 kg
- ColourBlack
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 2.65 kg
- Colour
- Black
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- ABYSM
- Category
- Power Supply Unit
- Model
- Morphep G2 ATX 850W
- Part number
- AB53002G2
- EAN / UPC
- 6974560220793
- Also known as
- ABYSM Morphep G2 ATX 850W power supply unit 20+4 pin ATX Black
Specifications
39 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 850 W |

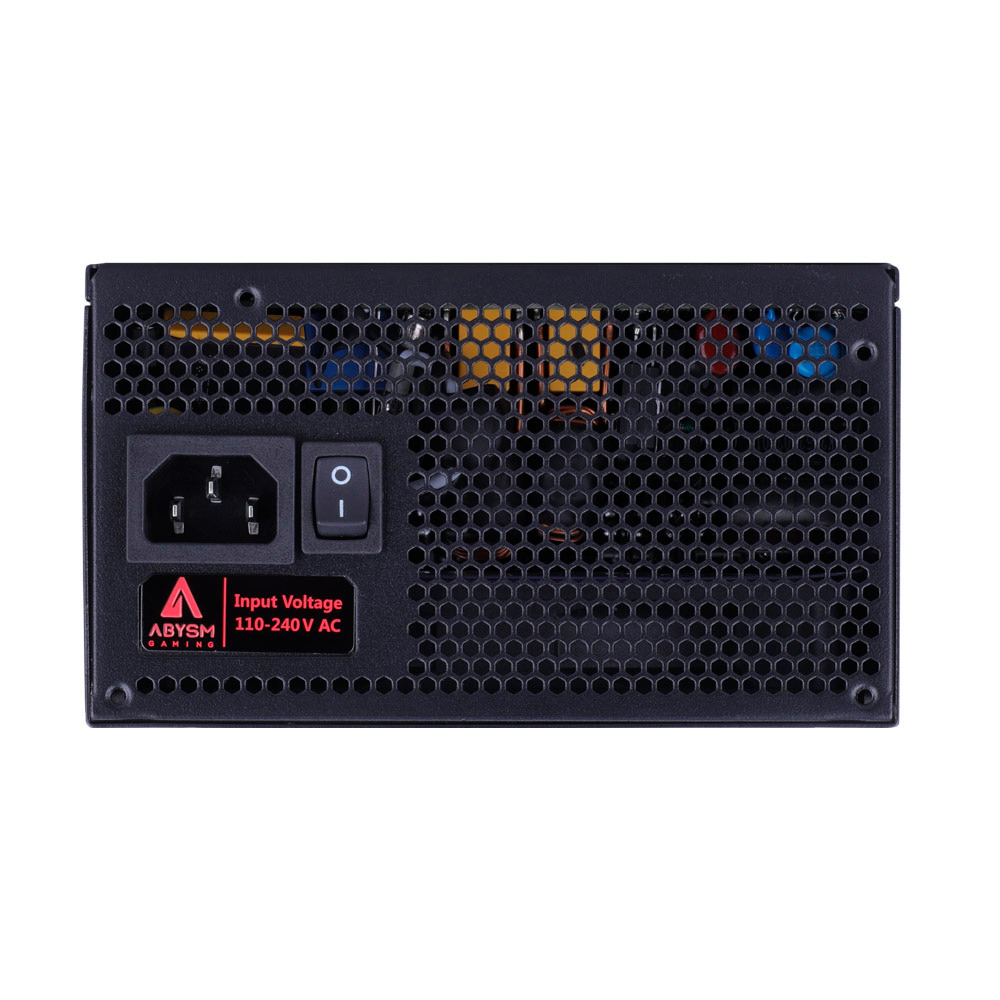

| AC input voltage | 110 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 103 W |
| Combined power (+12V) | 840 W |
| Combined power (+5V) | 103 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 15 A |
| Max output current (+12V) | 83 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over power, Over voltage, Overheating, Overload, Short circuit, Under voltage |

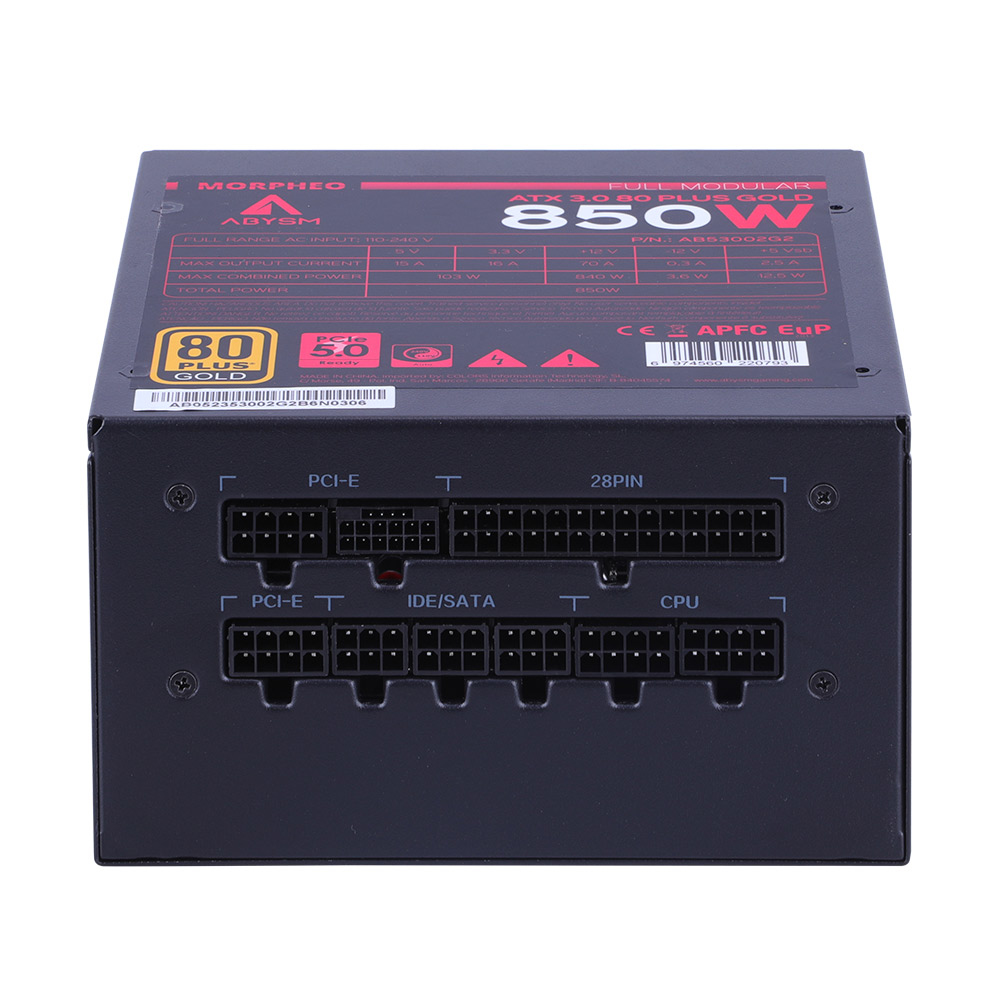

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| EPS version | 3.0 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

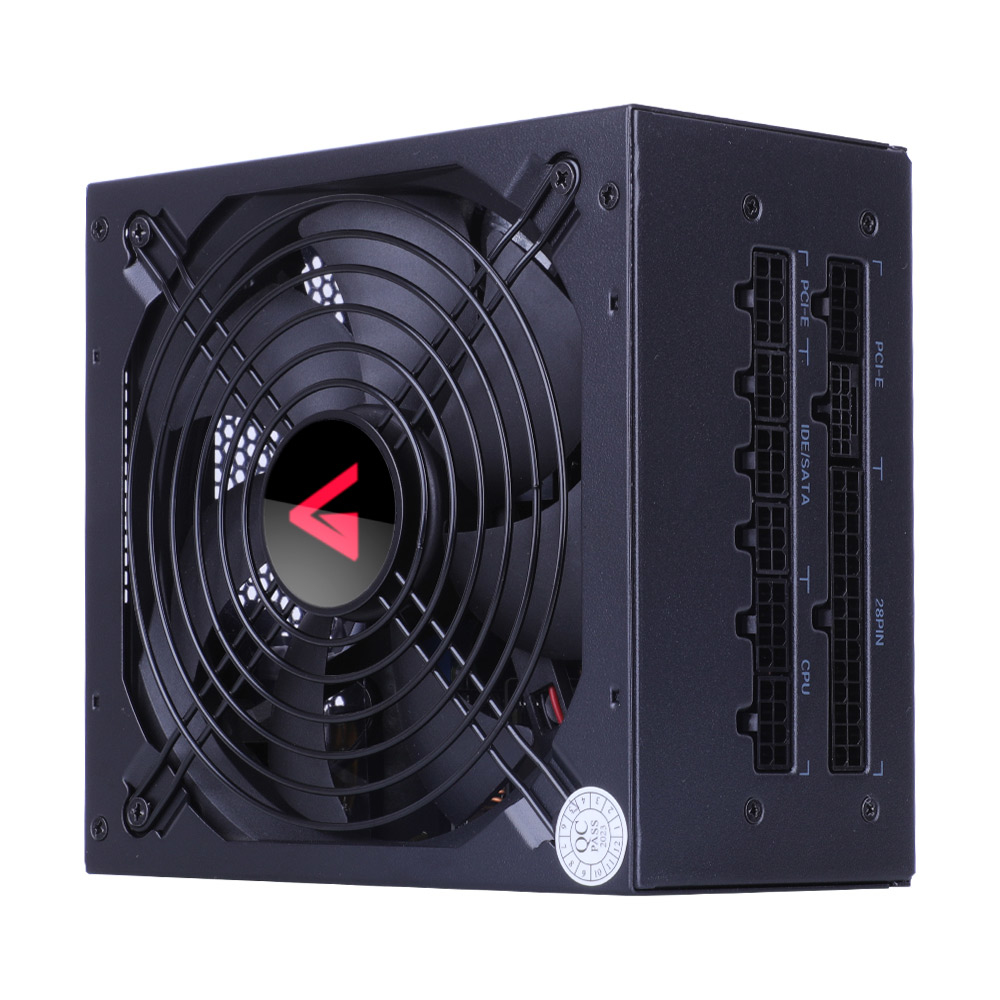

| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 2.65 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 350 mm |
| Package depth | 200 mm |
| Package height | 125 mm |
| Package weight | 2.66 kg |
