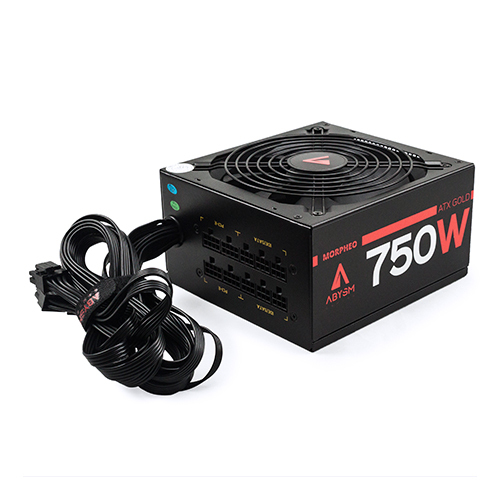

ABYSM Morpheo power supply unit
750 W ATX Black
Model MorpheoPart no. 53001EAN 6940533542025
37 specifications
- Weight1.88 kg
- ColourBlack
- Total power750 W
- Number of SATA power connectors4
- PurposePC
- Width150 mm
Overview
- Weight
- 1.88 kg
- Colour
- Black
- Total power
- 750 W
- Number of SATA power connectors
- 4
- Purpose
- PC
- Width
- 150 mm
- Brand
- ABYSM
- Category
- Power Supply Unit
- Model
- Morpheo
- Part numbers
- 53001, 53003, 53002
- EAN / UPC
- 6940533542025, 6940533542018, 6940533542032
- Also known as
- ABYSM Morpheo power supply unit 750 W ATX Black
Specifications
37 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 110 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over power, Over voltage, Overheating, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| PCI Express connector | Yes |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| EPS version | 2.92 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, EMI 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 85 mm |
| Weight | 1.88 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 350 mm |
| Package depth | 200 mm |
| Package height | 125 mm |
| Package weight | 2.9 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 655 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 220 mm |
| Master (outer) case gross weight | 11.8 kg |
| Products per master (outer) case | 5 pc(s) |
