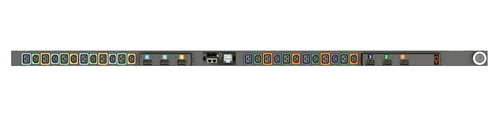

Vertiv Geist MNU5MGB0-24S203-2TL21A0A10-S power distribution unit (PDU) 24 AC outlet(s) 0U Black

Vertiv Geist MNU5MGB0-24S203-2TL21A0A10-S power distribution unit (PDU) 24 AC outlet(s) 0U Black

Model MNU5MGB0-24S203-2TL21A0A10-SPart no. VP7N20A2

31 specifications

Power5700 W
TypeThree-phase
ColourBlack
PDU typesMonitored
AC outlets quantity24 AC outlet(s)
Daisy chainYes

See all specifications

Overview

Power: 5700 W
Type: Three-phase
Colour: Black
PDU types: Monitored
AC outlets quantity: 24 AC outlet(s)
Daisy chain: Yes

Brand: Vertiv
Category: Power Distribution Units (PDUs)
Model: MNU5MGB0-24S203-2TL21A0A10-S
Part number: VP7N20A2
Also known as: Vertiv Geist MNU5MGB0-24S203-2TL21A0A10-S power distribution unit (PDU) 24 AC outlet(s) 0U Black

Specifications

31 specifications in 11 groups

Design

Specification	Value
PDU types	Monitored
Type	Three-phase
Rack capacity	0U
Mounting	Vertical
Product colour	Black
Display	LED

Ports & interfaces

Specification	Value
AC outlets quantity	24 AC outlet(s)
Power plug	NEMA L21-20P
AC outlet types	NEMA 5-20R
Ethernet LAN (RJ-45) ports	2
USB ports quantity	1

Features

Specification	Value
Daisy chain	Yes
Reset button	Yes
LED indicators	Yes
Cable length	3 m

Management features

Specification	Value
Monitoring	Current, Power, Temperature, Voltage
Supported network protocols	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP

Power

Specification	Value
Nominal input voltage	100-120/200-240 V
AC input frequency	50/60 Hz
Maximum current	20 A
Output voltage	120 V
Maximum power	5700 W
Circuit breaker	Yes

Certificates

Specification	Value
Compliance certificates	Federal Communications Commission (FCC), RoHS, UL

Sustainability

Specification	Value
Sustainability compliance	Yes

Weight & dimensions

Specification	Value
Width	1683 mm
Depth	66 mm
Height	51 mm

Packaging content

Specification	Value
Rack mount kit	Yes

Packaging data

Specification	Value
Package weight	8.16 kg

Logistics data

Specification	Value
Warranty period	5 year(s)
