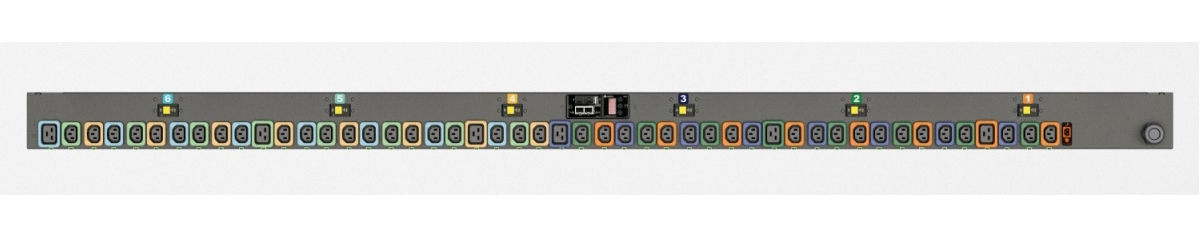

Geist MNU3EHW1-48MI13-3PS56B0A10-S-A power distribution unit (PDU) 48 AC outlet(s)
Model MNU3EHW1-48MI13-3PS56B0A10-S-APart no. NU30038L
23 specifications
- Weight9.98 kg
- PDU typesSwitched
- AC outlets quantity48 AC outlet(s)
- Reset buttonYes
- MonitoringCurrent, Power, Voltage
- Nominal input voltage230 - 400 V
Overview
- Weight
- 9.98 kg
- PDU types
- Switched
- AC outlets quantity
- 48 AC outlet(s)
- Reset button
- Yes
- Monitoring
- Current, Power, Voltage
- Nominal input voltage
- 230 - 400 V
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MNU3EHW1-48MI13-3PS56B0A10-S-A
- Part number
- NU30038L
- Also known as
- Vertiv Geist MNU3EHW1-48MI13-3PS56B0A10-S-A power distribution unit (PDU) 48 AC outlet(s)
Specifications
23 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Switched |
| Mounting | Vertical |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 48 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Reset button | Yes |
| LED indicators | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230 - 400 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 30 A |
| Power protection features | Over current |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94 mm |
| Depth | 1778 mm |
| Height | 66 mm |
| Weight | 9.98 kg |
