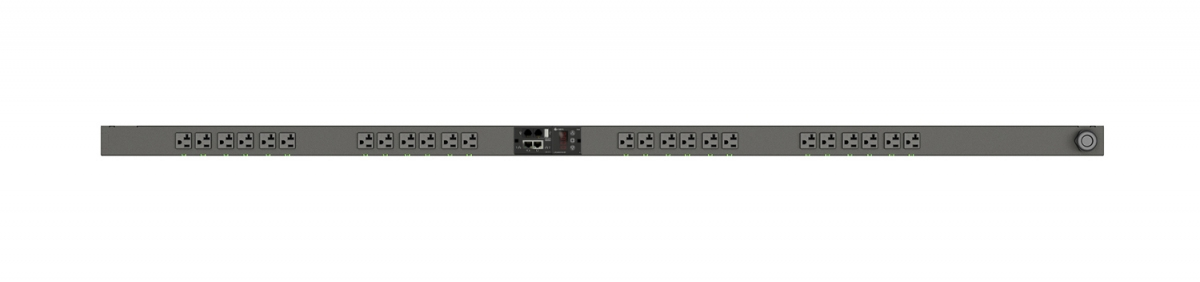

Geist MNU3EGB0-24S203-2TL5A0A10-S power distribution unit (PDU) 24 AC outlet(s) 0U
Model MNU3EGB0-24S203-2TL5A0A10-SPart no. NU30005
26 specifications
- Weight8.16 kg
- PDU typesSwitched
- AC outlets quantity24 AC outlet(s)
- Reset buttonYes
- MonitoringCurrent, Power, Voltage
- Nominal input voltage200-240 V
Overview
- Weight
- 8.16 kg
- PDU types
- Switched
- AC outlets quantity
- 24 AC outlet(s)
- Reset button
- Yes
- Monitoring
- Current, Power, Voltage
- Nominal input voltage
- 200-240 V
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MNU3EGB0-24S203-2TL5A0A10-S
- Part number
- NU30005
- Also known as
- Vertiv Geist MNU3EGB0-24S203-2TL5A0A10-S power distribution unit (PDU) 24 AC outlet(s) 0U
Specifications
26 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Switched |
| Rack capacity | 0U |
| Mounting | Vertical |
| Display | LED |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | NEMA 15-20P |
| AC outlet types | NEMA 5-20R |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Reset button | Yes |
| LED indicators | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 20 A |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC Part 15 Class A Conformance UL & c-UL Listed 62368-1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 51 mm |
| Depth | 1683 mm |
| Height | 66 mm |
| Weight | 8.16 kg |
