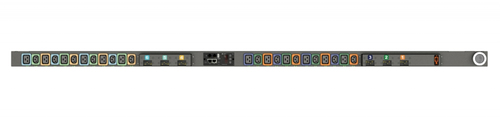

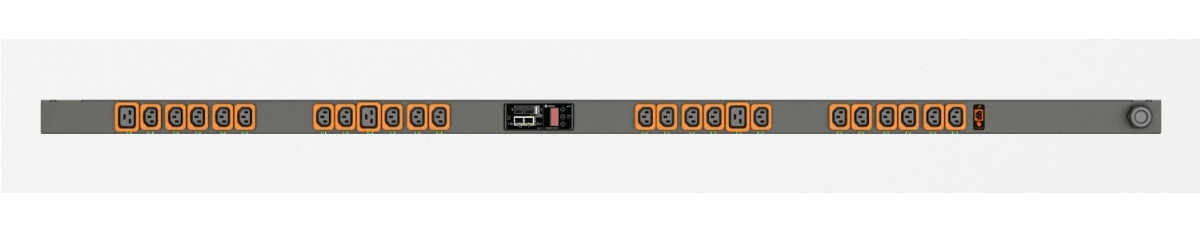

Vertiv Geist MNU3EGB0-24PK38-2TL21A0A10-S-A power distribution unit (PDU) 24 AC outlet(s) 0U Black

Vertiv Geist MNU3EGB0-24PK38-2TL21A0A10-S-A power distribution unit (PDU) 24 AC outlet(s) 0U Black

Model MNU3EGB0-24PK38-2TL21A0A10-S-APart no. NU30002L

27 specifications

Weight8.16 kg
ColourBlack
PDU typesSwitched
AC outlets quantity24 AC outlet(s)
Reset buttonYes
MonitoringCurrent, Power, Voltage

See all specifications

Overview

Weight: 8.16 kg
Colour: Black
PDU types: Switched
AC outlets quantity: 24 AC outlet(s)
Reset button: Yes
Monitoring: Current, Power, Voltage

Brand: Vertiv
Category: Power Distribution Units (PDUs)
Model: MNU3EGB0-24PK38-2TL21A0A10-S-A
Part number: NU30002L
Also known as: Vertiv Geist MNU3EGB0-24PK38-2TL21A0A10-S-A power distribution unit (PDU) 24 AC outlet(s) 0U Black

Specifications

27 specifications in 8 groups

Design

Specification	Value
PDU types	Switched
Rack capacity	0U
Mounting	Vertical
Product colour	Black
Display	LED

Ports & interfaces

Specification	Value
AC outlets quantity	24 AC outlet(s)
Power plug	NEMA L21-20P
AC outlet types	C13 coupler, C19 coupler
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB ports quantity	1

Features

Specification	Value
Reset button	Yes
LED indicators	Yes
Cable length	3 m

Management features

Specification	Value
Monitoring	Current, Power, Voltage
Supported network protocols	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP

Power

Specification	Value
Nominal input voltage	200-240 V
AC input frequency	50/60 Hz
Maximum current	20 A
Power protection features	Over current

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	FCC Part 15 Class A Conformance UL & c-UL Listed 62368-1

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 60 °C

Weight & dimensions

Specification	Value
Width	51 mm
Depth	1683 mm
Height	66 mm
Weight	8.16 kg
