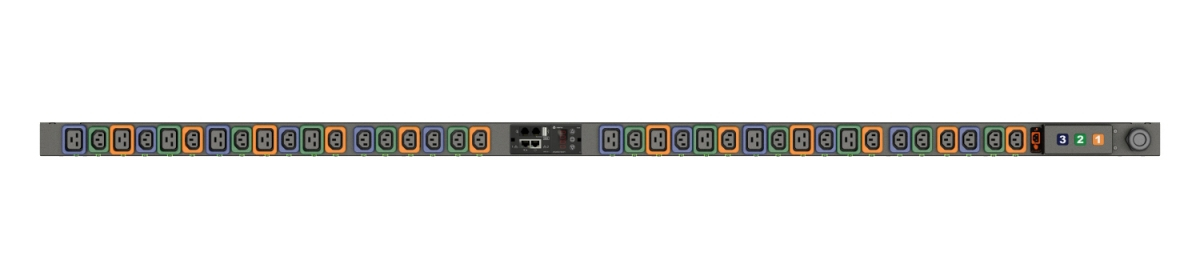

Geist MNR3EGB0-36PNB3-2PS56B0A10-S-A power distribution unit (PDU) 36 AC outlet(s) 0U Black
Model MNR3EGB0-36PNB3-2PS56B0A10-S-APart no. NR30010L
36 specifications
- Power11000 W
- TypeSingle-phase
- ColourBlack
- PDU typesMonitored
- AC outlets quantity36 AC outlet(s)
- Daisy chainYes
Overview
- Power
- 11000 W
- Type
- Single-phase
- Colour
- Black
- PDU types
- Monitored
- AC outlets quantity
- 36 AC outlet(s)
- Daisy chain
- Yes
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MNR3EGB0-36PNB3-2PS56B0A10-S-A
- Part number
- NR30010L
- Also known as
- Vertiv Geist MNR3EGB0-36PNB3-2PS56B0A10-S-A power distribution unit (PDU) 36 AC outlet(s) 0U Black
Specifications
36 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| PDU types | Monitored |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Cable colour | Black |
| Display | LED |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 36 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Colour-coded outlets | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Power |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230/400 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 20 A |
| Load capacity | 230 VA |
| Number of phases | 3 |
| Maximum power | 11000 W |
| Circuit breaker | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS, FCC Part 15 Class A, UL & c-UL Listed 62368-1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 51 mm |
| Depth | 66 mm |
| Height | 1683 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8.16 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United States |
| Quantity per pack | 1 pc(s) |
