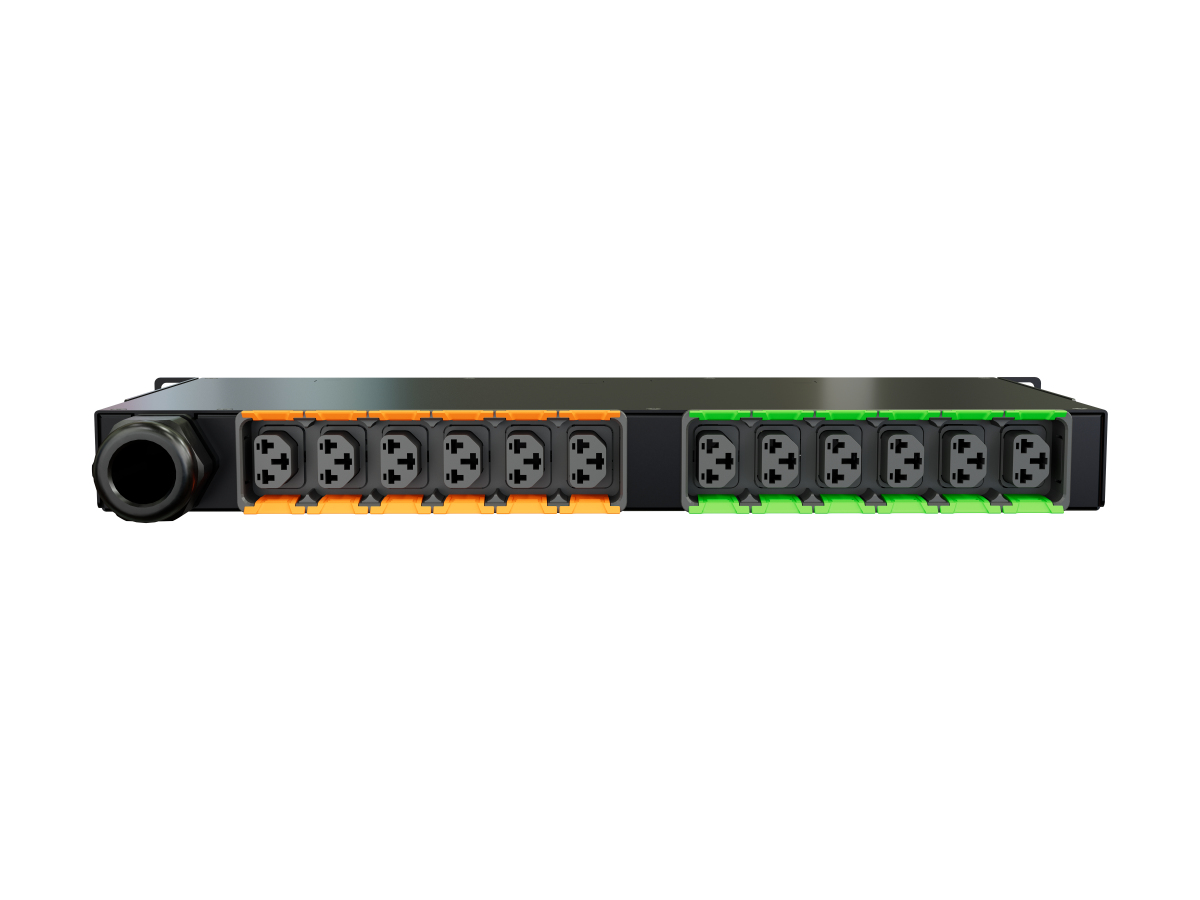

MN00X1R1-16MCQ9-3TL14A0A10-S power distribution unit (PDU) 16 AC outlet(s) 1U Black
Model MN00X1R1-16MCQ9-3TL14A0A10-SPart no. VP0N3100EAN 767041047707
20 specifications
- Power5700 W
- Weight6.8 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity16 AC outlet(s)
- Cable length3 m
Overview
- Power
- 5700 W
- Weight
- 6.8 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 16 AC outlet(s)
- Cable length
- 3 m
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MN00X1R1-16MCQ9-3TL14A0A10-S
- Part number
- VP0N3100
- EAN / UPC
- 767041047707
- Also known as
- Vertiv MN00X1R1-16MCQ9-3TL14A0A10-S power distribution unit (PDU) 16 AC outlet(s) 1U Black
Specifications
20 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Product colour | Black |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 16 AC outlet(s) |
| Power plug | NEMA L14-30P |
| AC outlet types | NEMA 5-20R, C13 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 30 A |
| Nominal output voltage | 208 V |
| Load capacity | 5700 VA |
| Maximum power | 5700 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Trade Agreements Act (TAA), UL, cUL, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50.8 mm |
| Depth | 50.8 mm |
| Height | 1682.7 mm |
| Weight | 6.8 kg |
