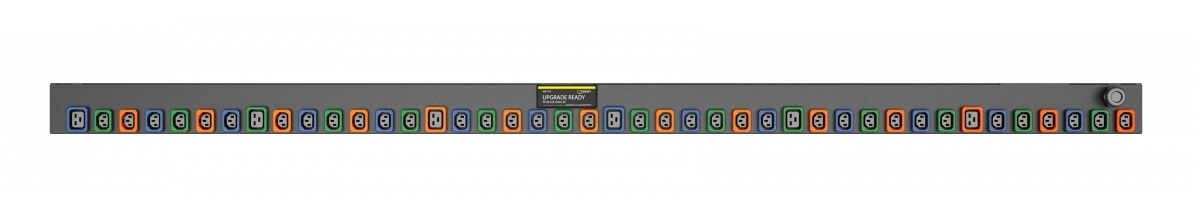

MG01X5W0-42PZ63-2PS56B2A10-S-A power distribution unit (PDU) 42 AC outlet(s) 0U Black
Model MG01X5W0-42PZ63-2PS56B2A10-S-APart no. GI10075LEAN 4061471341999
20 specifications
- Power11000 W
- TypeThree-phase
- Weight8.16 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity42 AC outlet(s)
Overview
- Power
- 11000 W
- Type
- Three-phase
- Weight
- 8.16 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 42 AC outlet(s)
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MG01X5W0-42PZ63-2PS56B2A10-S-A
- Part number
- GI10075L
- EAN / UPC
- 4061471341999
- Also known as
- Vertiv MG01X5W0-42PZ63-2PS56B2A10-S-A power distribution unit (PDU) 42 AC outlet(s) 0U Black
Specifications
20 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 42 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Colour-coded outlets | Yes |
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 415 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Output voltage | 230 V |
| Maximum power | 11000 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 89 mm |
| Depth | 51 mm |
| Height | 1905 mm |
| Weight | 8.16 kg |
