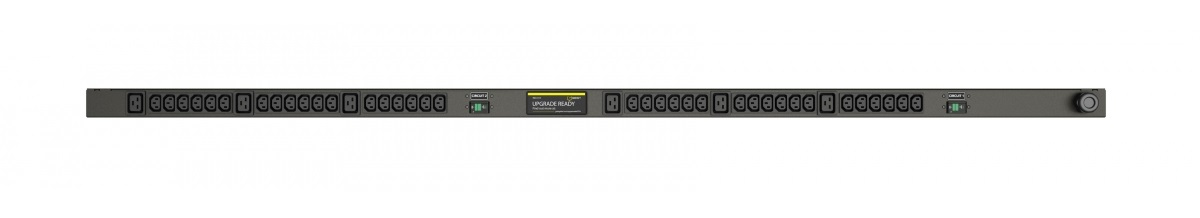

MG01X4W1-42IZ63-3PS6C2A10-S power distribution unit (PDU) 42 AC outlet(s) 0U Black
Model MG01X4W1-42IZ63-3PS6C2A10-SPart no. GI10012EAN 4061471341371
20 specifications
- Power7300 W
- Weight7.26 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity42 AC outlet(s)
- Cable length3 m
Overview
- Power
- 7300 W
- Weight
- 7.26 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 42 AC outlet(s)
- Cable length
- 3 m
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MG01X4W1-42IZ63-3PS6C2A10-S
- Part number
- GI10012
- EAN / UPC
- 4061471341371
- Also known as
- Vertiv MG01X4W1-42IZ63-3PS6C2A10-S power distribution unit (PDU) 42 AC outlet(s) 0U Black
Specifications
20 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 42 AC outlet(s) |
| Power plug | Type I |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Output voltage | 230 V |
| Maximum power | 7300 W |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 51 mm |
| Depth | 51 mm |
| Height | 1778 mm |
| Weight | 7.26 kg |
