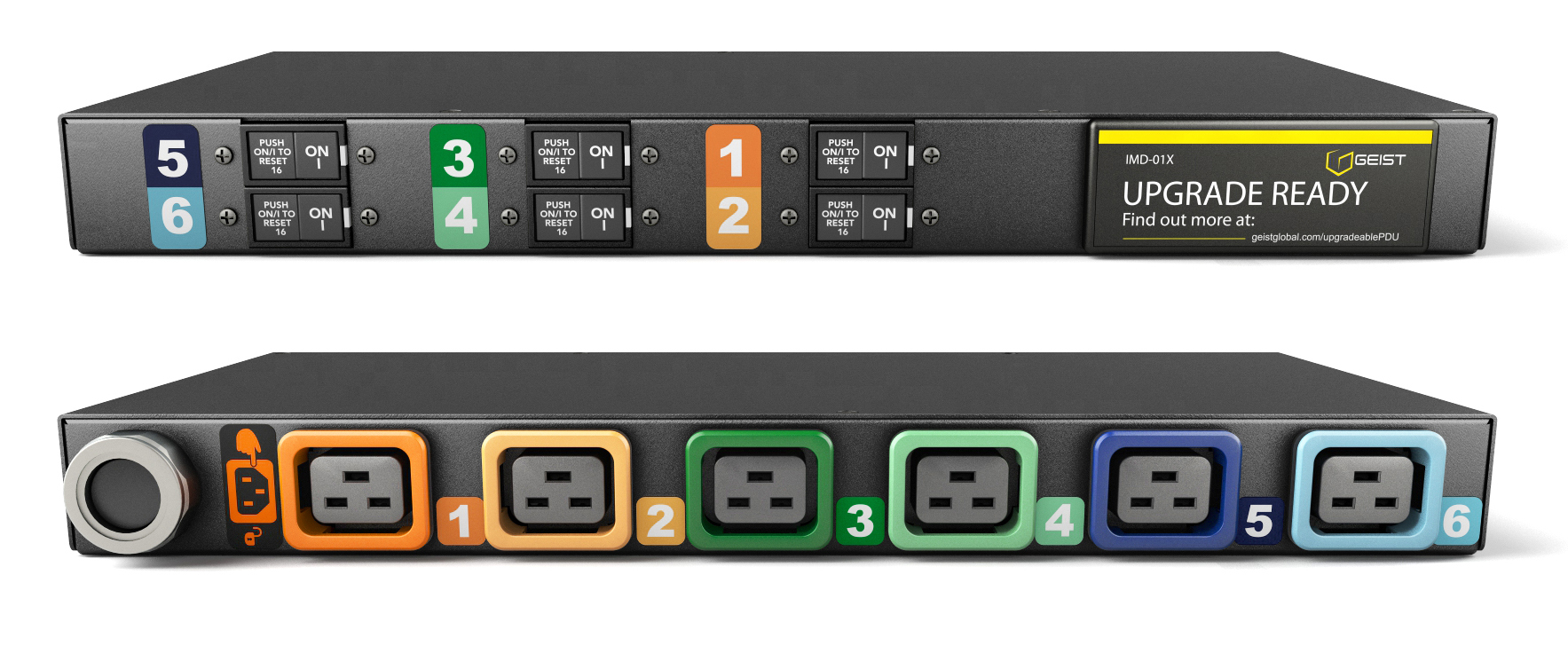

MG01X1R1-06L193-3PS56B2H10-S power distribution unit (PDU) 6 AC outlet(s) 1U Black
Model MG01X1R1-06L193-3PS56B2H10-SPart no. GI10044LEAN 4061471341692
23 specifications
- Power22000 W
- TypeThree-phase
- Weight6.8 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity6 AC outlet(s)
Overview
- Power
- 22000 W
- Type
- Three-phase
- Weight
- 6.8 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 6 AC outlet(s)
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- MG01X1R1-06L193-3PS56B2H10-S
- Part number
- GI10044L
- EAN / UPC
- 4061471341692
- Also known as
- Vertiv MG01X1R1-06L193-3PS56B2H10-S power distribution unit (PDU) 6 AC outlet(s) 1U Black
Specifications
23 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Three-phase |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Product colour | Black |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 6 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C19 coupler |
Features
| Specification | Value |
|---|---|
| Colour-coded outlets | Yes |
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 415 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Output voltage | 230 V |
| Maximum power | 22000 W |
| Power protection features | Over current |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 216 mm |
| Height | 44 mm |
| Weight | 6.8 kg |
| Size (imperial) | 48.3 cm (19") |
