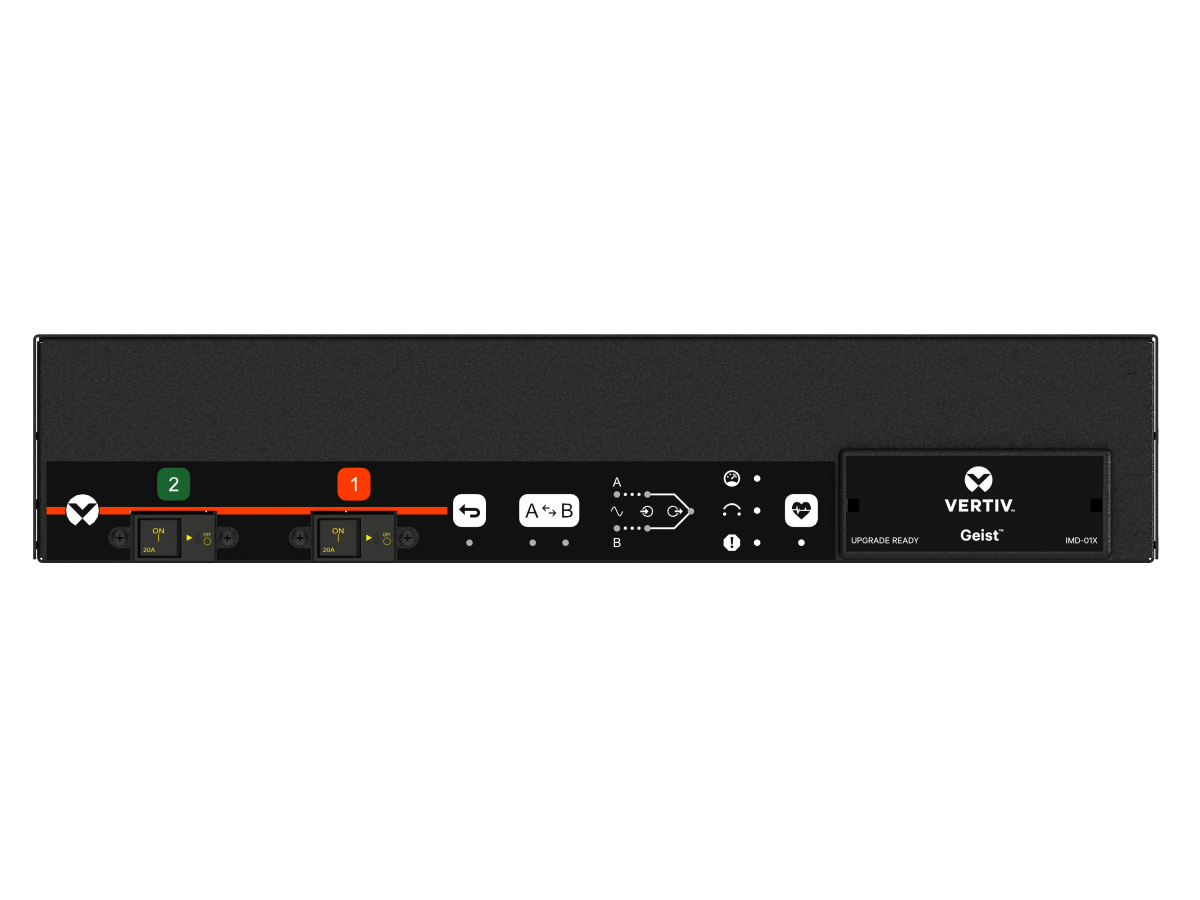

Geist AN01X2R1-24CF18-3TL6TL6A011-D power distribution unit (PDU) 24 AC outlet(s) 0U Black
Model AN01X2R1-24CF18-3TL6TL6A011-DPart no. VA1N3200
20 specifications
- TypeSingle-phase
- ColourBlack
- PDU typesBasic
- AC outlets quantity24 AC outlet(s)
- Cable length3 m
- Nominal input voltage200-240 V
Overview
- Type
- Single-phase
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 24 AC outlet(s)
- Cable length
- 3 m
- Nominal input voltage
- 200-240 V
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- AN01X2R1-24CF18-3TL6TL6A011-D
- Part number
- VA1N3200
- Also known as
- Vertiv Geist AN01X2R1-24CF18-3TL6TL6A011-D power distribution unit (PDU) 24 AC outlet(s) 0U Black
Specifications
20 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Horizontal |
| Product colour | Black |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | NEMA L6-30P |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 30 A |
| Load capacity | 208 VA |
| Power protection features | Over current |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 457 mm |
| Height | 87 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 10.9 kg |
