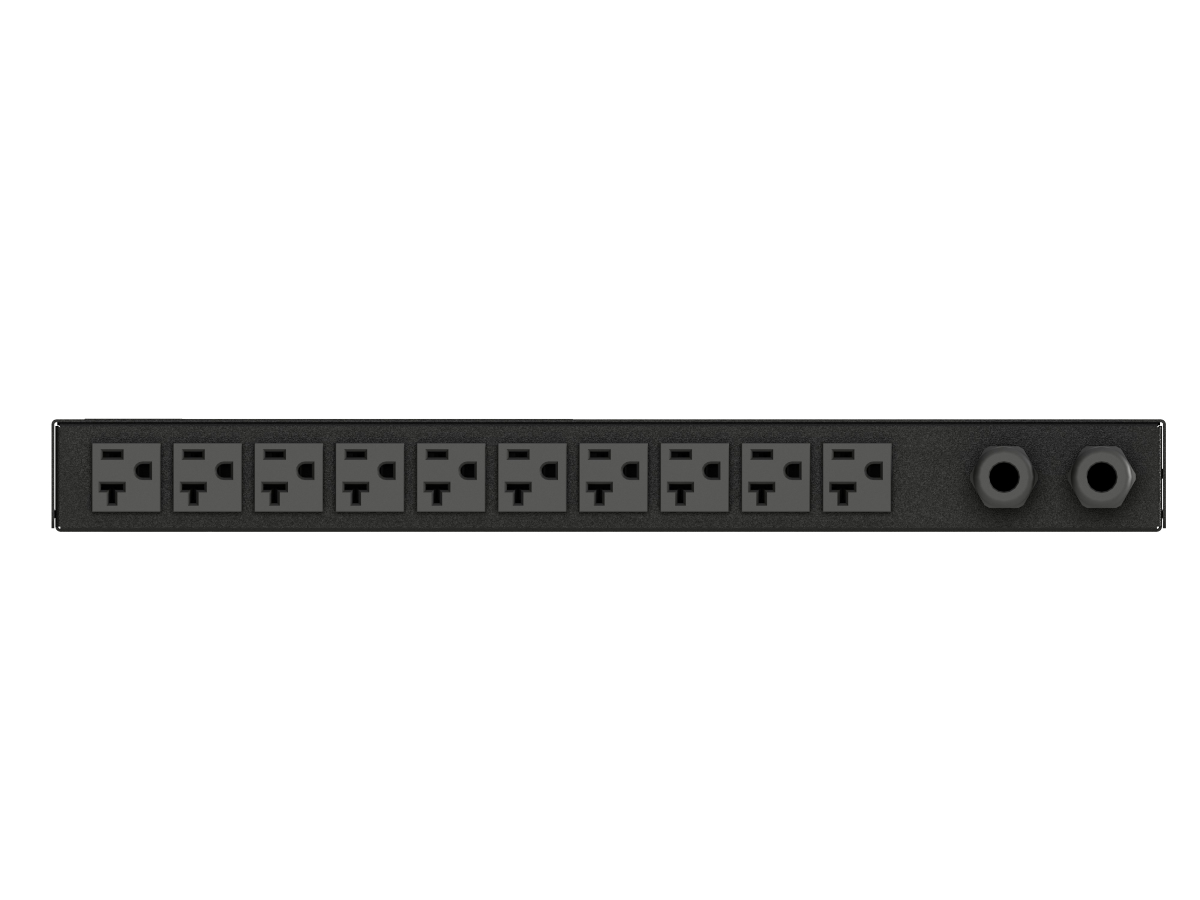

Geist AN01X1R0-10S203-2ST5ST5A011-D power distribution unit (PDU) 10 AC outlet(s) 0U Black
Model AN01X1R0-10S203-2ST5ST5A011-DPart no. VA1N2100
20 specifications
- TypeSingle-phase
- ColourBlack
- PDU typesBasic
- AC outlets quantity10 AC outlet(s)
- Cable length3 m
- Nominal input voltage100-120 V
Overview
- Type
- Single-phase
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 10 AC outlet(s)
- Cable length
- 3 m
- Nominal input voltage
- 100-120 V
- Brand
- Vertiv
- Category
- Power Distribution Units (PDUs)
- Model
- AN01X1R0-10S203-2ST5ST5A011-D
- Part number
- VA1N2100
- Also known as
- Vertiv Geist AN01X1R0-10S203-2ST5ST5A011-D power distribution unit (PDU) 10 AC outlet(s) 0U Black
Specifications
20 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Horizontal |
| Product colour | Black |
| On/off switch | No |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 10 AC outlet(s) |
| Power plug | NEMA 5-20P |
| AC outlet types | NEMA 5-20R |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100-120 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 20 A |
| Output voltage | 120 V |
| Load capacity | 120 VA |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS Compliant FCC Part 15 Class A Conformance UL & c-UL Listed 62368-1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 457 mm |
| Height | 44 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 4.54 kg |
