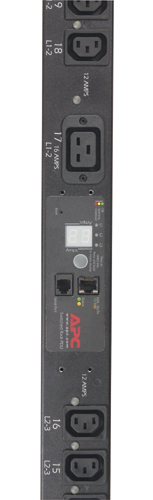

Rack PDU, Switched, ZeroU, 5.7kW, 208V
Model Rack PDU, Switched, ZeroU, 5.7kW, 208VPart no. AP7991EAN 731304223054
17 specifications
- Weight5.91 kg
- ColourBlack
- Input connection typeNEMA L21-20P
- Cable length3.05 m
- Nominal input voltage208 V
- Operating temperature (T-T)-5 - 45 °C
Overview
- Weight
- 5.91 kg
- Colour
- Black
- Input connection type
- NEMA L21-20P
- Cable length
- 3.05 m
- Nominal input voltage
- 208 V
- Operating temperature (T-T)
- -5 - 45 °C
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- Rack PDU, Switched, ZeroU, 5.7kW, 208V
- Part number
- AP7991
- EAN / UPC
- 731304223054, 7313042230544
- Also known as
- APC Rack PDU, Switched, ZeroU, 5.7kW, 208V power distribution unit (PDU) Black
Specifications
17 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | NEMA L21-20P |
| Output connections | 21x IEC 320 C13 3x IEC 320 C19 |
Features
| Specification | Value |
|---|---|
| Cable length | 3.05 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 208 V |
| AC input frequency | 50 - 60 Hz |
| Nominal output voltage | 208 V |
| Load capacity | 5700 VA |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 16 A |
Certificates
| Specification | Value |
|---|---|
| Certification | cUL Listed,CSA,FCC Part 15 Class A,ICES-003,Industry Canada,UL 60950,UL Listed, RoHS 7b |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 44 mm |
| Height | 1619 mm |
| Weight | 5.91 kg |
