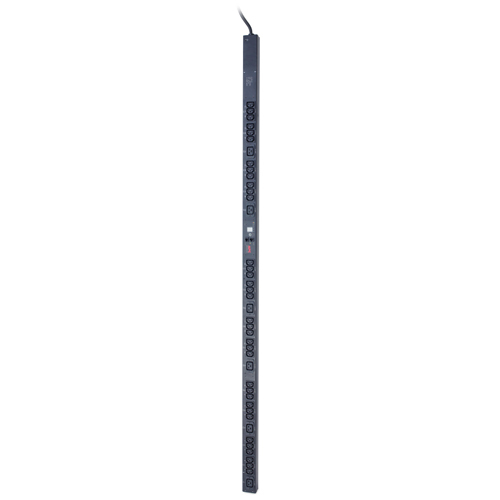

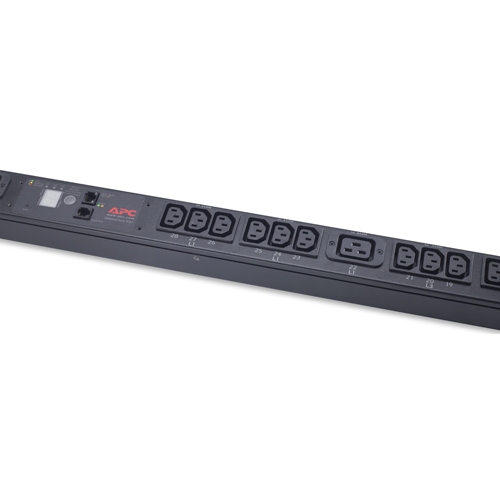

Rack PDU, Metered, Zero U, 11kW, 230V, (36) C13 & (6) C19
Model Rack PDU, Metered, Zero U, 11kW, 230V, (36) C13 & (6) C19Part no. AP7857EAN 731304254119
24 specifications
- Weight5.45 kg
- ColourBlack
- Rack capacityYes
- Input connection typeIEC 309 16A 3P+N+PE
- Cable length0.91 m
- Nominal input voltage400 V
Overview
- Weight
- 5.45 kg
- Colour
- Black
- Rack capacity
- Yes
- Input connection type
- IEC 309 16A 3P+N+PE
- Cable length
- 0.91 m
- Nominal input voltage
- 400 V
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- Rack PDU, Metered, Zero U, 11kW, 230V, (36) C13 & (6) C19
- Part number
- AP7857
- EAN / UPC
- 731304254119
- Also known as
- APC Rack PDU, Metered, Zero U, 11kW, 230V, (36) C13 & (6) C19 power distribution unit (PDU) Yes Black
Specifications
24 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Rack capacity | Yes |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|

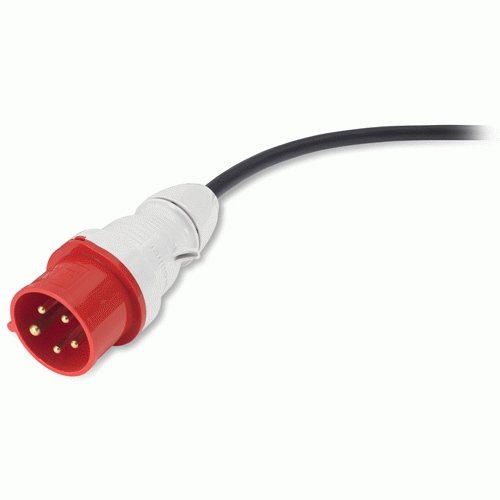

| Input connection type | IEC 309 16A 3P+N+PE |
| Output connections | (36) IEC 320 C13, (6) IEC 320 C19 |
Features
| Specification | Value |
|---|---|
| Cable length | 0.91 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 400 V |
| AC input frequency | 47/63 Hz |
| Nominal output voltage | 230 V |
| Output voltage | 230 V |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
Certificates
| Specification | Value |
|---|---|
| Certification | C-tick,CCC,CE,GOST,MIC,Queensland Australia,VDE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 44 mm |
| Height | 1619 mm |
| Weight | 5.45 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8.86 kg |
| Package width | 152 mm |
| Package depth | 127 mm |
| Package height | 2134 mm |
