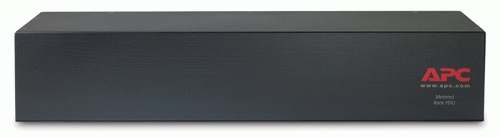

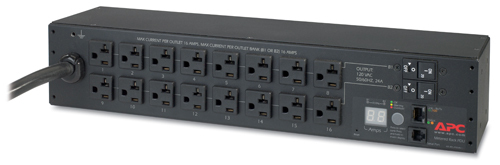

APC Rack PDU, Metered, 2U, 30A, 120V, (16) 5-20

APC Rack PDU, Metered, 2U, 30A, 120V, (16) 5-20

Model Rack PDU, Metered, 2U, 30A, 120V, (16) 5-20Part no. AP7802EAN 7313042465656

16 specifications
  • Weight3.36 kg
  • Input connection typeNEMA L5-30P
  • Cable length3.66 m
  • Nominal input voltage120 V
  • Operating temperature (T-T)-5 - 45 °C
  • Width444 mm
See all specifications

Overview

Weight
3.36 kg
Input connection type
NEMA L5-30P
Cable length
3.66 m
Nominal input voltage
120 V
Operating temperature (T-T)
-5 - 45 °C
Width
444 mm
Brand
APC
Model
Rack PDU, Metered, 2U, 30A, 120V, (16) 5-20
Part number
AP7802
EAN / UPC
7313042465656, 611101309253, 611104756306, 731304246565 +3 more
Also known as
APC Rack PDU, Metered, 2U, 30A, 120V, (16) 5-20 power distribution unit (PDU)

Specifications

16 specifications in 6 groups

Ports & interfaces

Input connection typeNEMA L5-30P
Output connections16x NEMA 5-20R

Features

Cable length3.66 m

Power

Nominal input voltage120 V
AC input frequency50 - 60 Hz
Nominal output voltage120 V
Load capacity2880 VA
Maximum input current per phase30 A
Maximum total current draw per phase24 A

Certificates

CertificationcUL Listed,CSA,FCC Part 15 Class A,ICES-003,UL 60950,UL Listed, RoHS

Operational conditions

Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C

Weight & dimensions

Width444 mm
Depth112 mm
Height88 mm
Weight3.36 kg
