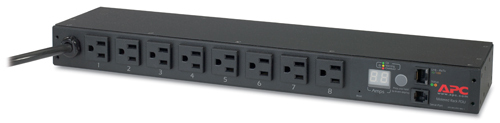

Rack PDU, Metered, 1U, 15A, 100/120V
Model Rack PDU, Metered, 1U, 15A, 100/120VPart no. AP7800EAN 731304246541
14 specifications
- Weight1.73 kg
- Input connection typeNEMA 5-15P
- Cable length3.66 m
- Nominal input voltage120 V
- Operating temperature (T-T)-5 - 45 °C
- Width444 mm
Overview
- Weight
- 1.73 kg
- Input connection type
- NEMA 5-15P
- Cable length
- 3.66 m
- Nominal input voltage
- 120 V
- Operating temperature (T-T)
- -5 - 45 °C
- Width
- 444 mm
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- Rack PDU, Metered, 1U, 15A, 100/120V
- Part number
- AP7800
- EAN / UPC
- 731304246541, 777786300418, 7313042465410
- Also known as
- APC Rack PDU, Metered, 1U, 15A, 100/120V power distribution unit (PDU)
Specifications
14 specifications in 5 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | NEMA 5-15P |
| Output connections | 8x NEMA 5-15R |
Features
| Specification | Value |
|---|---|
| Cable length | 3.66 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 120 V |
| AC input frequency | 50 - 60 Hz |
| Nominal output voltage | 120 V |
| Maximum input current per phase | 15 A |
| Maximum total current draw per phase | 12 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 444 mm |
| Depth | 102 mm |
| Height | 44 mm |
| Weight | 1.73 kg |
