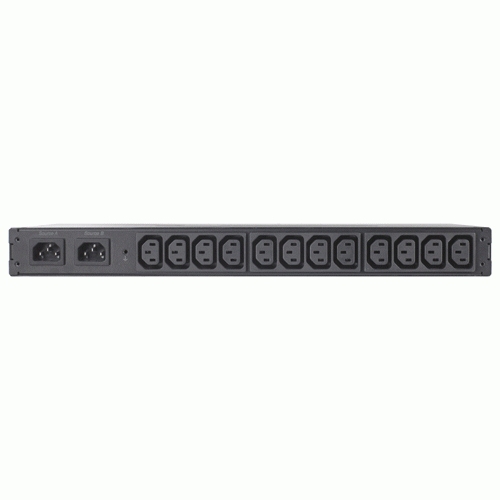

RACK ATS, 230V, 10A, C14 IN, (12) C13 OUT
Model RACK ATS, 230V, 10A, C14 IN, (12) C13 OUTPart no. AP7721EAN 5054484119838
21 specifications
- Weight3.93 kg
- ColourBlack
- Rack capacity1U
- Input connection typeIEC-320 C14
- Nominal input voltage230 V
- Operating temperature (T-T)-5 - 45 °C
Overview
- Weight
- 3.93 kg
- Colour
- Black
- Rack capacity
- 1U
- Input connection type
- IEC-320 C14
- Nominal input voltage
- 230 V
- Operating temperature (T-T)
- -5 - 45 °C
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- RACK ATS, 230V, 10A, C14 IN, (12) C13 OUT
- Part number
- AP7721
- EAN / UPC
- 5054484119838, 080850476637, 088021335660, 132017905846 +11 more
- Also known as
- APC RACK ATS, 230V, 10A, C14 IN, (12) C13 OUT power distribution unit (PDU) 1U Black
Specifications
21 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | IEC-320 C14 |
| Output connections | (12) IEC 320 C13 |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230 V |
| AC input frequency | 47/63 Hz |
| Maximum input current per phase | 10 A |
| Maximum total current draw per phase | 10 A |
Certificates
| Specification | Value |
|---|---|
| Certification | EN 55022 Class A,FCC Part 15 Class A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 229 mm |
| Height | 44 mm |
| Weight | 3.93 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 5.7 kg |
| Package width | 600 mm |
| Package depth | 349 mm |
| Package height | 114 mm |
