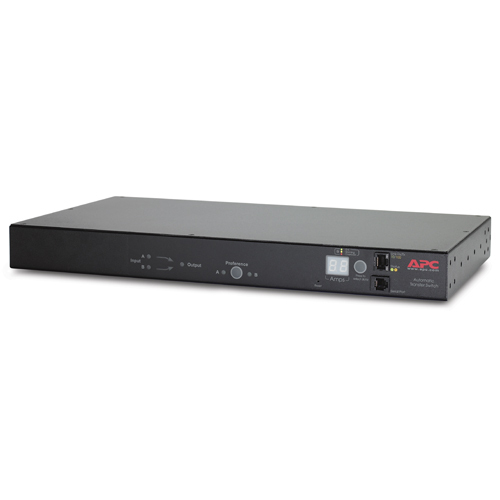

APC RACK ATS, 20A/208V, 16A/230V, C20 IN, (8) C13 (1) C19 OUT
Model RACK ATS, 20A/208V, 16A/230V, C20 IN, (8) C13 (1) C19 OUTPart no. AP7723EAN 4053162265882
21 specifications
- Weight3.93 kg
- ColourBlack
- Input connection typeIEC-320 C20
- Nominal input voltage230 V
- Operating temperature (T-T)-5 - 45 °C
- Width432 mm
Overview
- Weight
- 3.93 kg
- Colour
- Black
- Input connection type
- IEC-320 C20
- Nominal input voltage
- 230 V
- Operating temperature (T-T)
- -5 - 45 °C
- Width
- 432 mm
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- RACK ATS, 20A/208V, 16A/230V, C20 IN, (8) C13 (1) C19 OUT
- Part number
- AP7723
- EAN / UPC
- 4053162265882, 731304255857, 3609740044151, 5051964148265 +1 more
- Also known as
- APC RACK ATS, 20A/208V, 16A/230V, C20 IN, (8) C13 (1) C19 OUT power distribution unit (PDU) Black
Specifications
21 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | IEC-320 C20 |

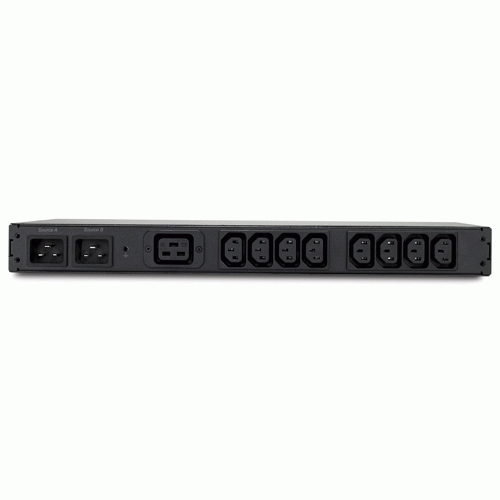

| Output connections | (8) IEC 320 C13, (1) IEC 320 C19 |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230 V |
| AC input frequency | 47/63 Hz |
| Nominal output voltage | 230 V |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 16 A |
Certificates
| Specification | Value |
|---|---|
| Certification | EN 55022 Class A,FCC Part 15 Class A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 229 mm |
| Height | 44 mm |
| Weight | 3.93 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 5.7 kg |
| Package width | 600 mm |
| Package depth | 349 mm |
| Package height | 114 mm |
