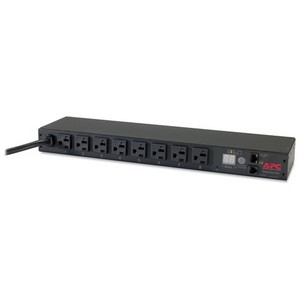

Metered Rack 8-Outlets 1.92kW PDU - 1.92kW - 1U Rack-mountable
Model Metered Rack 8-Outlets 1.92kW PDU - 1.92kW - 1U Rack-mountablePart no. AP7801EAN 7313042465588
14 specifications
- Input connection typeNEMA L5-20P
- Cable length3.66 m
- Nominal input voltage120 V
- Operating temperature (T-T)-5 - 45 °C
- Width444 mm
Overview
- Input connection type
- NEMA L5-20P
- Cable length
- 3.66 m
- Nominal input voltage
- 120 V
- Operating temperature (T-T)
- -5 - 45 °C
- Width
- 444 mm
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- Metered Rack 8-Outlets 1.92kW PDU - 1.92kW - 1U Rack-mountable
- Part number
- AP7801
- EAN / UPC
- 7313042465588, 112840017572, 151903022665, 191120031705 +7 more
- Also known as
- APC Metered Rack 8-Outlets 1.92kW PDU - 1.92kW - 1U Rack-mountable power distribution unit (PDU)
Specifications
14 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | NEMA L5-20P |
| Output connections | 8x NEMA 5-20R |
Features
| Specification | Value |
|---|---|
| Cable length | 3.66 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 120 V |
| AC input frequency | 50 - 60 Hz |
| Nominal output voltage | 120 V |
| Load capacity | 1920 VA |
| Maximum input current per phase | 20 A |
Certificates
| Specification | Value |
|---|---|
| Certification | cUL Listed,CSA,FCC Part 15 Class A,ICES-003,UL 60950,UL Listed, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 444 mm |
| Depth | 102 mm |
| Height | 44 mm |
