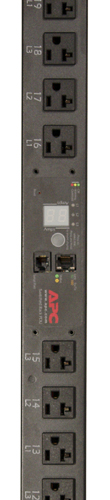

Metered Rack 5.7kVA PDU - 21 x NEMA 5-20R, 6 x NEMA L6-20R - 5.7kV
Model Metered Rack 5.7kVA PDU - 21 x NEMA 5-20R, 6 x NEMA L6-20R - 5.7kVPart no. AP7893EAN 731304222347
18 specifications
- Weight5.45 kg
- ColourBlack
- Input connection typeNEMA L21-20P
- Cable length3.05 m
- Nominal input voltage208 V
- Operating temperature (T-T)-5 - 45 °C
Overview
- Weight
- 5.45 kg
- Colour
- Black
- Input connection type
- NEMA L21-20P
- Cable length
- 3.05 m
- Nominal input voltage
- 208 V
- Operating temperature (T-T)
- -5 - 45 °C
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- Metered Rack 5.7kVA PDU - 21 x NEMA 5-20R, 6 x NEMA L6-20R - 5.7kV
- Part number
- AP7893
- EAN / UPC
- 731304222347, 7313042223478
- Also known as
- APC Metered Rack 5.7kVA PDU - 21 x NEMA 5-20R, 6 x NEMA L6-20R - 5.7kV power distribution unit (PDU) Black
Specifications
18 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | NEMA L21-20P |
| Output connections | -(21) NEMA 5-20R. -(6) NEMA L6-20R. |
Features
| Specification | Value |
|---|---|
| Cable length | 3.05 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 208 V |
| AC input frequency | 47/63 Hz |
| Load capacity | 5700 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 20 A |
Certificates
| Specification | Value |
|---|---|
| Certification | cUL,CSA C22.2 No. 60950-1-03,FCC 15 A,ICES-003,Industry Canada,UL 60950-1,UL |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 44 mm |
| Height | 1778 mm |
| Weight | 5.45 kg |
