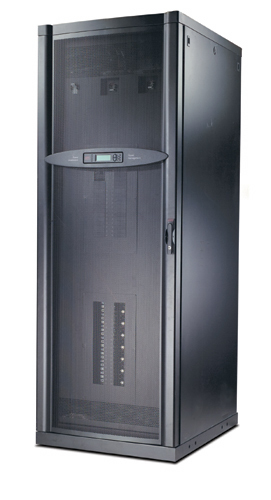

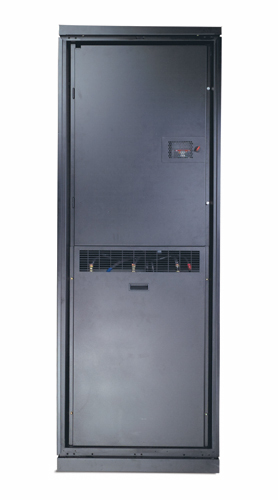

InfraStruXure® PDU 150kW 480V/208V
Model InfraStruXure® PDU 150kW 480V/208VPart no. PD150G6F
15 specifications
- Weight715 kg
- ColourBlack
- Nominal input voltage480 V
- Operating temperature (T-T)0 - 40 °C
- Width737 mm
Overview
- Weight
- 715 kg
- Colour
- Black
- Nominal input voltage
- 480 V
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 737 mm
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- InfraStruXure® PDU 150kW 480V/208V
- Part number
- PD150G6F
- Also known as
- APC InfraStruXure® PDU 150kW 480V/208V power distribution unit (PDU) Black
Specifications
15 specifications in 5 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 480 V |
| AC input frequency | 60 Hz |
| Load capacity | 150000 VA |
| Maximum input current per phase | 200 A |
| Maximum total current draw per phase | 416 A |
Certificates
| Specification | Value |
|---|---|
| Certification | cUL,UL. |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 737 mm |
| Depth | 914 mm |
| Height | 2057 mm |
| Weight | 715 kg |
