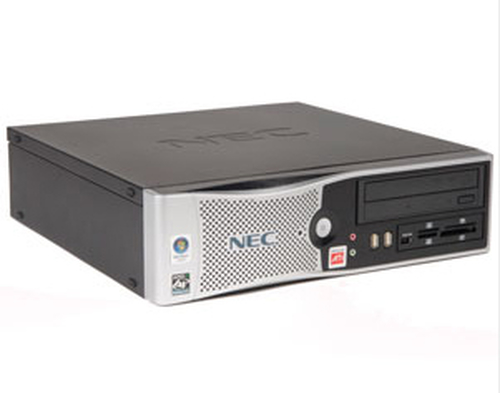

NEC PowerMate ML470 SD - Intel Core 2 Duo E6550, 2048MB, 160GB, Vista Business
Model PowerMate ML470 SD - Intel Core 2 Duo E6550, 2048MB, 160GB, Vista BusinessPart no. PE4N94R-0009Z90
99 specifications
- ProcessorIntel® Core™2 Duo
- Memory2 GB
- Storage160 GB
- TypePC
- OSWindows Vista Business
- Weight5.4 kg
Overview
- Processor
- Intel® Core™2 Duo
- Memory
- 2 GB
- Storage
- 160 GB
- Type
- PC
- OS
- Windows Vista Business
- Weight
- 5.4 kg
- Brand
- NEC
- Category
- PCs/Workstations
- Model
- PowerMate ML470 SD - Intel Core 2 Duo E6550, 2048MB, 160GB, Vista Business
- Part numbers
- PE4N94R-0009Z90, PE4NM4N-0009Z90
- Also known as
- NEC PowerMate ML470 SD - Intel Core 2 Duo E6550, 2048MB, 160GB, Vista Business Intel® Core™2 Duo E4500 2 GB Windows Vista Business Small Desktop PC
Specifications
99 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | E4500 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.2 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Duo E4000 Series |
| Processor codename | Conroe |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 73.3 °C |
| Number of processors installed | 1 |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 167 M |
| Processing Die size | 111 mm² |
| CPU multiplier (bus/core ratio) | 11 |
| Processor core voltage (AC) | 0.85 - 1.5 V |
| Stepping | M0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 8 GB |
| Memory layout (slots x size) | 2 x 1 GB |
| Memory slots | 4x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| Optical drive type | DVD-RW |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2x PCI 1x PCI Express 4x 1x PCI Express 16x |
Power
| Specification | Value |
|---|---|
| Power supply type | 110/220V AC, 50/60Hz |
| Power availability | 250 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Small Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| External drive bays | 1x5.25” / 1x3.5" |
| Internal drive bays | 1x3.5" |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
| Bundled software | Yes |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 30781 |
| Processor code | SLA95 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | HDA (azalia) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 18 - 85% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 371 mm |
| Depth | 386 mm |
| Height | 102 mm |
| Weight | 5.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE EMC 89/336 ECC, CE LVD 73/23 ECC, EN 55022 (98), EN 55024(98), EN 60950, CE, RoHS |
Compare NEC PowerMate ML470 SD - Intel Core 2 Duo E6550, 2048MB, 160GB, Vista Business
Compare any products- NEC PowerMate ML470 SD - Intel Core 2 Duo E6550, 2048MB, 160GB, Vista Business vsNEC PowerMate VL260 MT - Intel Core 2 Duo E4500, 2048MB, 250GB, DVD-RW, Windows Vista Business + Win XP ProCompare specs
- NEC PowerMate ML470 SD - Intel Core 2 Duo E6550, 2048MB, 160GB, Vista Business vsNEC PowerMate VL370 SD - AMD Athlon 64 X2 4200+, 512MB, 80GB, Win XP ProCompare specs
- NEC PowerMate ML470 SD - Intel Core 2 Duo E6550, 2048MB, 160GB, Vista Business vsNEC PowerMate ML470 SD - Intel Core 2 Duo E4500, 1024MB, 160GB, Vista BusinessCompare specs
- NEC PowerMate ML470 SD - Intel Core 2 Duo E6550, 2048MB, 160GB, Vista Business vsNEC PowerMate ML470 MT - Intel Core 2 Quad Q6600, 2048MB, 500GB, Vista BusinessCompare specs

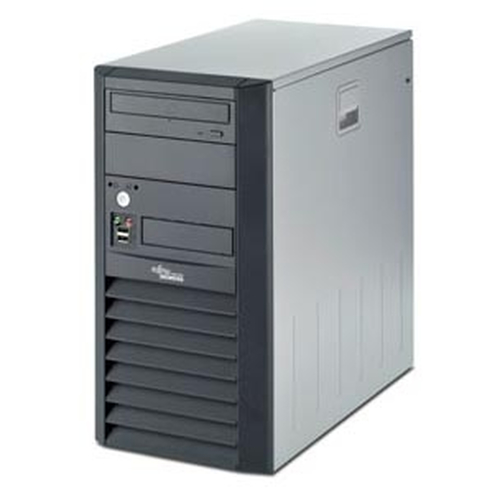

- NEC PowerMate ML470 SD - Intel Core 2 Duo E6550, 2048MB, 160GB, Vista Business vsFujitsu ESPRIMO P2420Compare specs
- NEC PowerMate ML470 SD - Intel Core 2 Duo E6550, 2048MB, 160GB, Vista Business vsFujitsu ESPRIMO Edition P2520 Intel® Celeron® 430Compare specs

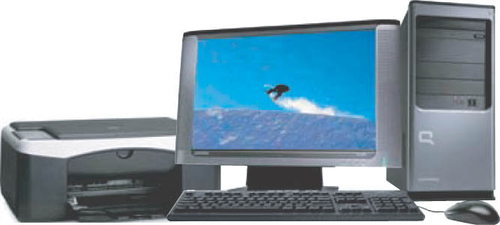

- NEC PowerMate ML470 SD - Intel Core 2 Duo E6550, 2048MB, 160GB, Vista Business vsHP Presario SR5255 + 19” TFT Wide + HP 2180 All-in-oneCompare specs

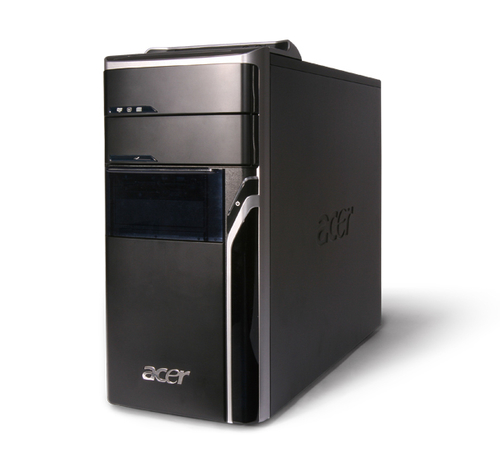

- NEC PowerMate ML470 SD - Intel Core 2 Duo E6550, 2048MB, 160GB, Vista Business vsAcer Aspire M5100-9E7SCompare specs
