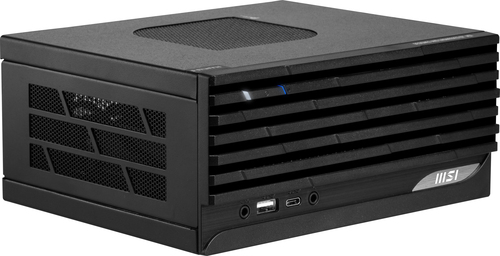

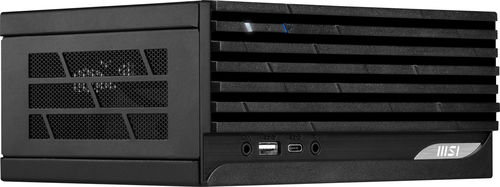

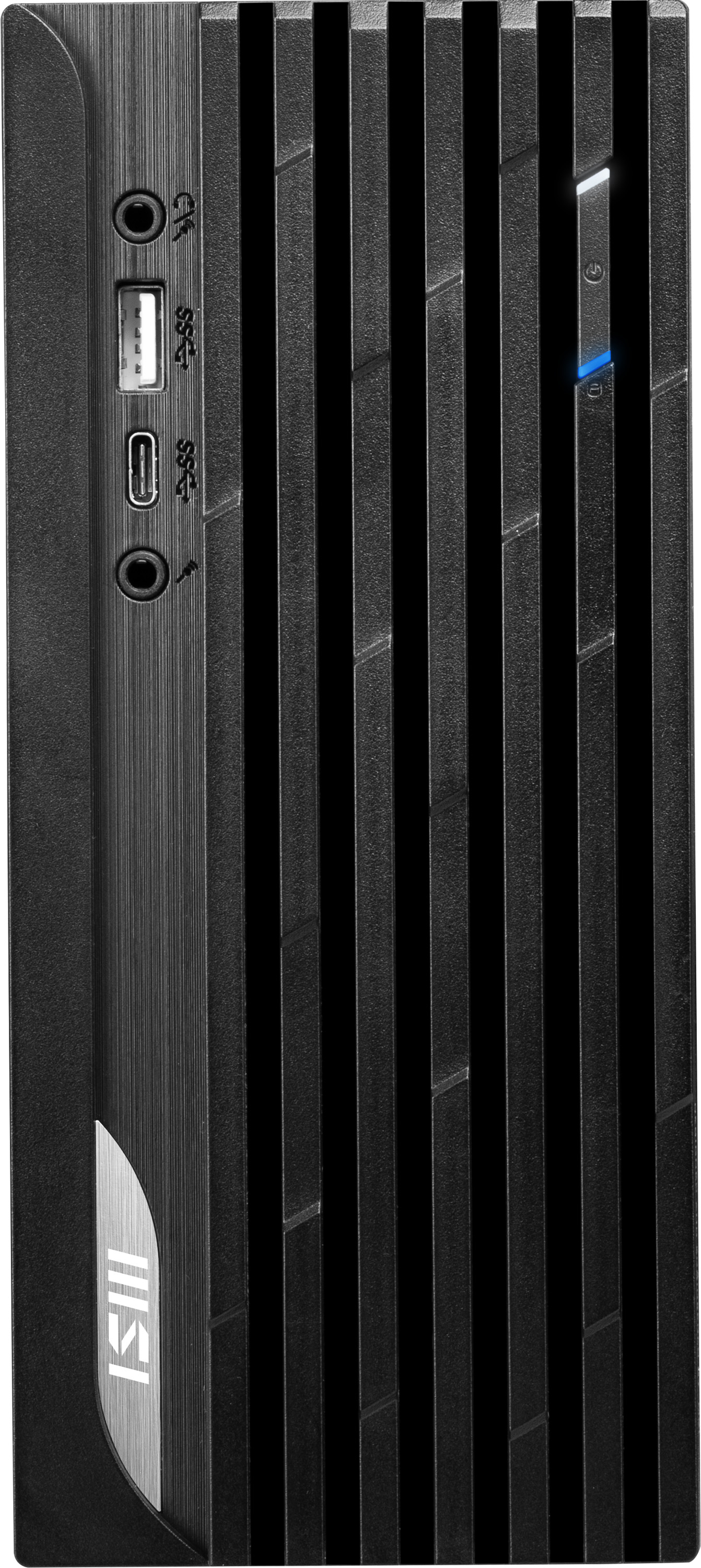

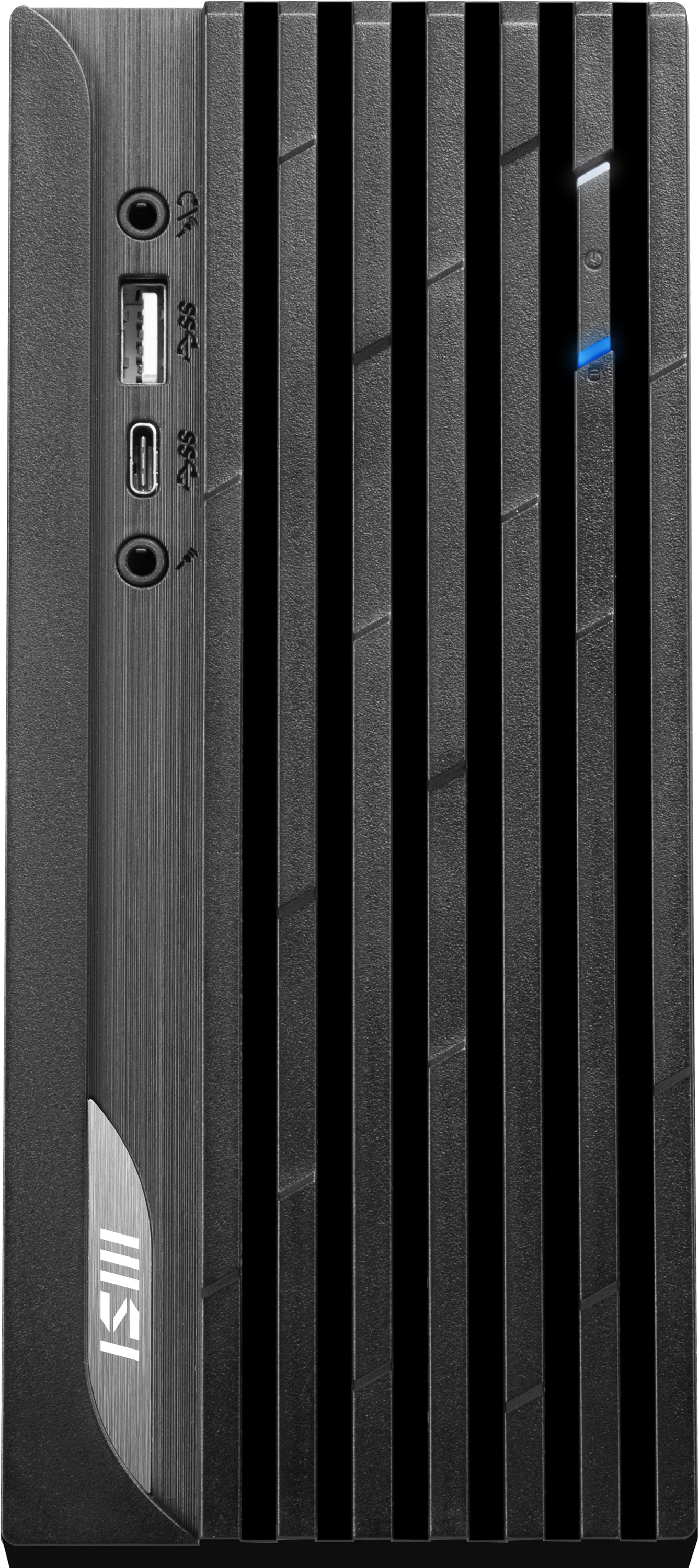

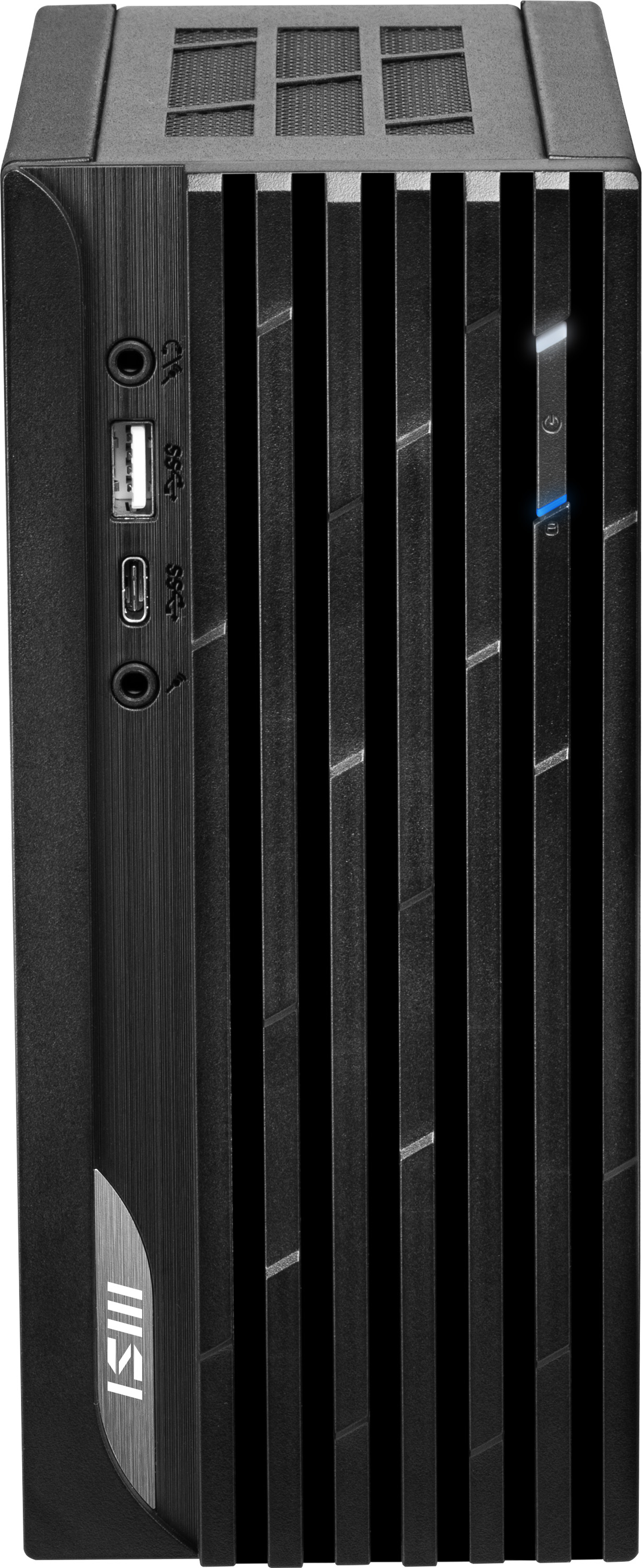

Pro DP20ZA 5M-063EU
Model Pro DP20ZA 5M-063EUPart no. PRO DP20ZA 5M-063EUEAN 4719072909130
85 specifications
- ProcessorAMD Ryzen™ 3
- Memory8 GB
- Storage256 GB
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC
Overview
- Processor
- AMD Ryzen™ 3
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- Pro DP20ZA 5M-063EU
- Part number
- PRO DP20ZA 5M-063EU
- EAN / UPC
- 4719072909130
- Also known as
- MSI Pro DP20ZA 5M-063EU AMD Ryzen™ 3 5300G 8 GB DDR4-SDRAM 256 GB SSD Windows 11 Pro Mini PC Black
Specifications
85 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 3 |
| Processor generation | AMD Ryzen 5000 Series |
| Processor model | 5300G |
| Processor cores | 4 |
| Processor boost frequency | 4 GHz |
| Processor frequency | 4.2 GHz |
| Processor cache | 8 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 3200 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| NVMe | Yes |
| SSD interface | NVMe |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon Graphics |
| On-board graphics card model | AMD Radeon Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Market positioning | Business |
| Motherboard chipset | AMD B300 |
| Audio output channels | 2.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN controller model | Intel Dual Band Wireless-AC 3168 |
| Antenna type | 1x1 |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 120 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Volume | 2.6 L |
| Placement supported | Vertical |
| VESA mounting | Yes |
| Number of 2.5" bays | 2 |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC233 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160.6 mm |
| Depth | 193.3 mm |
| Height | 85 mm |
| Weight | 1.42 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 150 mm |
| Package depth | 390 mm |
| Package height | 270 mm |
| Package weight | 2.65 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| VESA mount included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC(Class B) CB/CE UL(CUL) BSMI |
