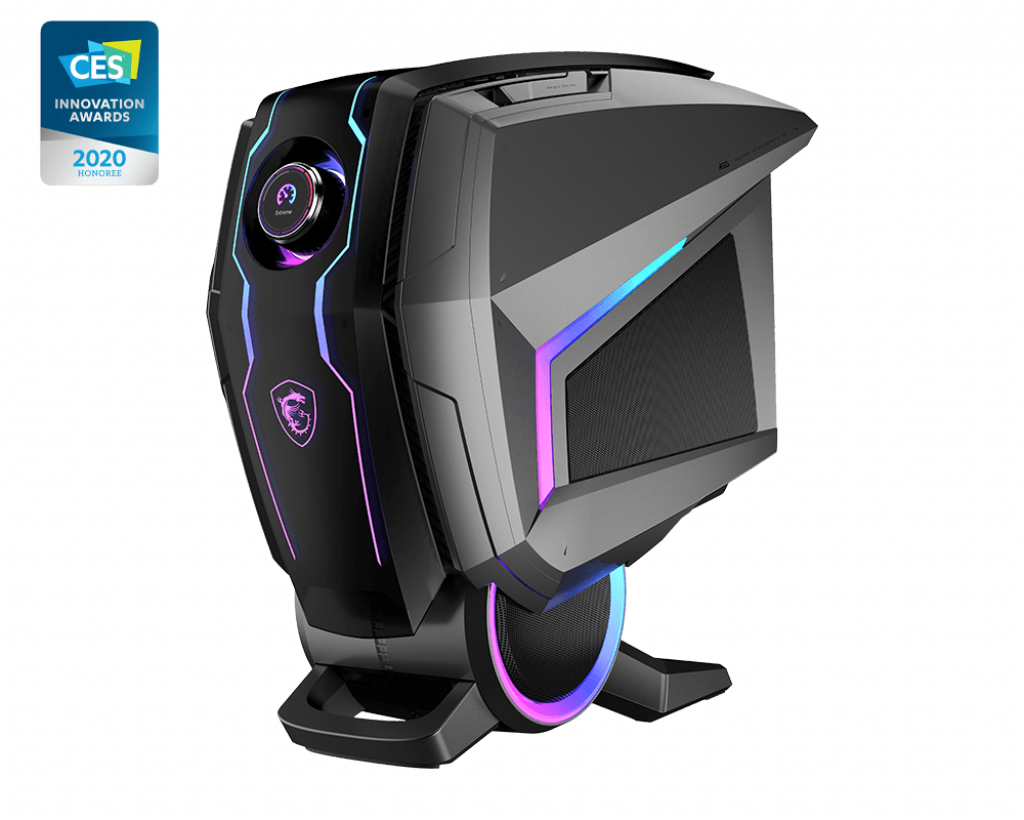

MEG Aegis Ti5 10TE-013MYS
Model MEG Aegis Ti5 10TE-013MYSPart no. MEG AEGIS TI5 10TE-013MYSEAN 4719072757533
135 specifications
- ProcessorIntel® Core™ i7
- Memory32 GB
- Storage4 TB
- GraphicsNVIDIA GeForce RTX 3080
- SpeedWi-Fi 6 (802.11ax)
- TypePC
Overview
- Processor
- Intel® Core™ i7
- Memory
- 32 GB
- Storage
- 4 TB
- Graphics
- NVIDIA GeForce RTX 3080
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- PC
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- MEG Aegis Ti5 10TE-013MYS
- Part number
- MEG AEGIS TI5 10TE-013MYS
- EAN / UPC
- 4719072757533
- Also known as
- MSI MEG Aegis Ti5 10TE-013MYS Intel® Core™ i7 i7-10700K 32 GB DDR4-SDRAM 4 TB HDD+SSD NVIDIA GeForce RTX 3080 Windows 10 Home Desktop PC Liquid cooling system B
Specifications
135 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 10th gen Intel® Core™ i7 |
| Processor model | i7-10700K |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 5.1 GHz |
| Processor frequency | 3.8 GHz |
| Processor cache | 16 MB |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Comet Lake |
| Thermal Design Power (TDP) | 125 W |
| Configurable TDP-down | 95 W |
| Configurable TDP-down frequency | 3.5 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
| Processor socket | LGA 1200 (Socket H5) |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2933 MHz |
| Memory bandwidth supported by processor (max) | 45.8 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 4x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 4 TB |
| Optical drive type | No |
| Storage media | HDD+SSD |
| Total HDDs capacity | 2 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 2 TB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Total SSDs capacity | 2 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 3080 |
| Discrete graphics card memory | 10 GB |
| Discrete graphics memory type | GDDR6X |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x9BC5 |
| On-board graphics card OpenGL version | 4.5 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Motherboard chipset | Intel Z490 |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| LAN controller | Intel® I219-V, Intel I225-V |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| Thunderbolt 3 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| DVI port | No |
| PS/2 ports quantity | 1 |
| S/PDIF out port | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 750 W |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Volume | 67 L |
| Number of 2.5" bays | 2 |
| Liquid cooling system | Yes |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 199335 |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2015D |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC1220 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 551 mm |
| Depth | 239 mm |
| Height | 511 mm |
| Weight | 15 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 17 kg |
