MSI CUBI N ADL N100 FS 4GB 128GB W11P
Model CUBI N ADL N100 FS 4GB 128GB W11PEAN 824142319833
110 specifications
- ProcessorIntel® N
- Memory4 GB
- Storage128 GB
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC
Overview
- Processor
- Intel® N
- Memory
- 4 GB
- Storage
- 128 GB
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- CUBI N ADL N100 FS 4GB 128GB W11P
- Part number
- CUBI N ADL N100 FS 4GB 128GB W11P
- EAN / UPC
- 824142319833, 4711377070119
- Also known as
- MSI Cubi N ADL Intel N100 Desktop PC, NUC, SFF, Mini Computer, HTPC, (4GB RAM, 128GB SSD, Windows 11 PRO), UHD Graphics/Type C/HDMI/DisplayPort/Dual LAN/WiFi 5/
Specifications
110 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® N |
| Processor model | N100 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3.4 GHz |
| Processor frequency | 3.4 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Processor lithography | 10 nm |
| Processor operating modes | 32-bit |
| Processor codename | Alder Lake-N |
| Thermal Design Power (TDP) | 6 W |
| Number of processors installed | 1 |
| Number of processors supported | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 1x SO-DIMM |
| Memory clock speed | 3200 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 2 |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD interface | M.2 |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Market positioning | Everyday |
| Powered by | MSI |
| Motherboard chipset | Intel SoC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| WLAN controller model | Intel Dual Band Wireless-AC 9462 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| USB4 Gen 2x2 ports quantity | 0 |
| USB4 Gen 3x2 ports quantity | 0 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Intel® Thunderbolt 4 | No |
| Thunderbolt 4 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| Mini DisplayPorts quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| eSATA ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Colour name | Black |
| Volume | 0.66 L |
| Placement supported | Horizontal/Vertical |
| VESA mounting | Yes |
| Number of 2.5" bays | 1 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Liquid cooling system | No |
| Product colour | Black |
| Housing material | Plastic |
| Country of origin | China |
| Product family | Intel NUC |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Drivers included | Yes |
Display
| Specification | Value |
|---|---|
| Display included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 124 mm |
| Depth | 124 mm |
| Height | 53.7 mm |
| Weight | 540 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Package weight | 1.39 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| VESA mount included | Yes |
| AC adapter included | Yes |
| Manual | Yes |
| Power cord included | Yes |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Compare MSI CUBI N ADL N100 FS 4GB 128GB W11P
Compare any products- MSI CUBI N ADL N100 FS 4GB 128GB W11P vsMSI R 12TC 443USCompare specs
- MSI CUBI N ADL N100 FS 4GB 128GB W11P vsMSI X5 11TD-660FRCompare specs
- MSI CUBI N ADL N100 FS 4GB 128GB W11P vsMSI CUBI N ADL N200 FS 4GB 128GB W11PCompare specs
- MSI CUBI N ADL N100 FS 4GB 128GB W11P vsMSI Cubi N JSL Intel Pentium-N6000 DesktopCompare specs
- MSI CUBI N ADL N100 FS 4GB 128GB W11P vsASUS ExpertCenter D5 SFF D500SD_CZ-512400023W Intel® Core™ i5 i5-12400Compare specs

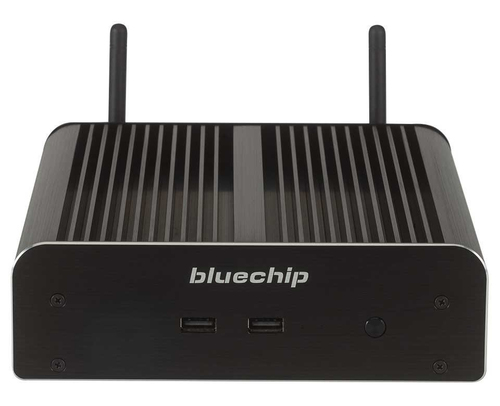

- MSI CUBI N ADL N100 FS 4GB 128GB W11P vsbluechip BUSINESSline M11210pCompare specs
