Codex 5 i7 16GB 256GB RTX
Model Codex 5 i7 16GB 256GB RTXPart no. 9S6-B93041-262EAN 4719072758394
78 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage2 TB
- GraphicsNVIDIA® GeForce RTX™ 2060
- SpeedWi-Fi 6 (802.11ax)
- TypePC
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 2 TB
- Graphics
- NVIDIA® GeForce RTX™ 2060
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- PC
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- Codex 5 i7 16GB 256GB RTX
- Part number
- 9S6-B93041-262
- EAN / UPC
- 4719072758394
- Also known as
- MSI Codex 5 i7 16GB 256GB RTX Intel® Core™ i7 i7-10700 DDR4-SDRAM 2 TB HDD+SSD NVIDIA® GeForce RTX™ 2060 Windows 10 Desktop PC Black
Specifications
78 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 10th gen Intel® Core™ i7 |
| Processor model | i7-10700 |
| Processor cores | 8 |
| Processor boost frequency | 4.8 GHz |
| Processor frequency | 2.9 GHz |
| Processor cache | 16 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Storage media | HDD+SSD |
| Number of HDDs installed | 1 |
| HDD capacity | 2 TB |
| HDD speed | 7200 RPM |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA® GeForce RTX™ 2060 |
| Discrete graphics card memory | 6 GB |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® UHD Graphics 630 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Powered by | MSI |
| Virtual Reality (VR) ready | Yes |
| Motherboard chipset | Intel H410 |
| Motherboard form factor | ATX |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |

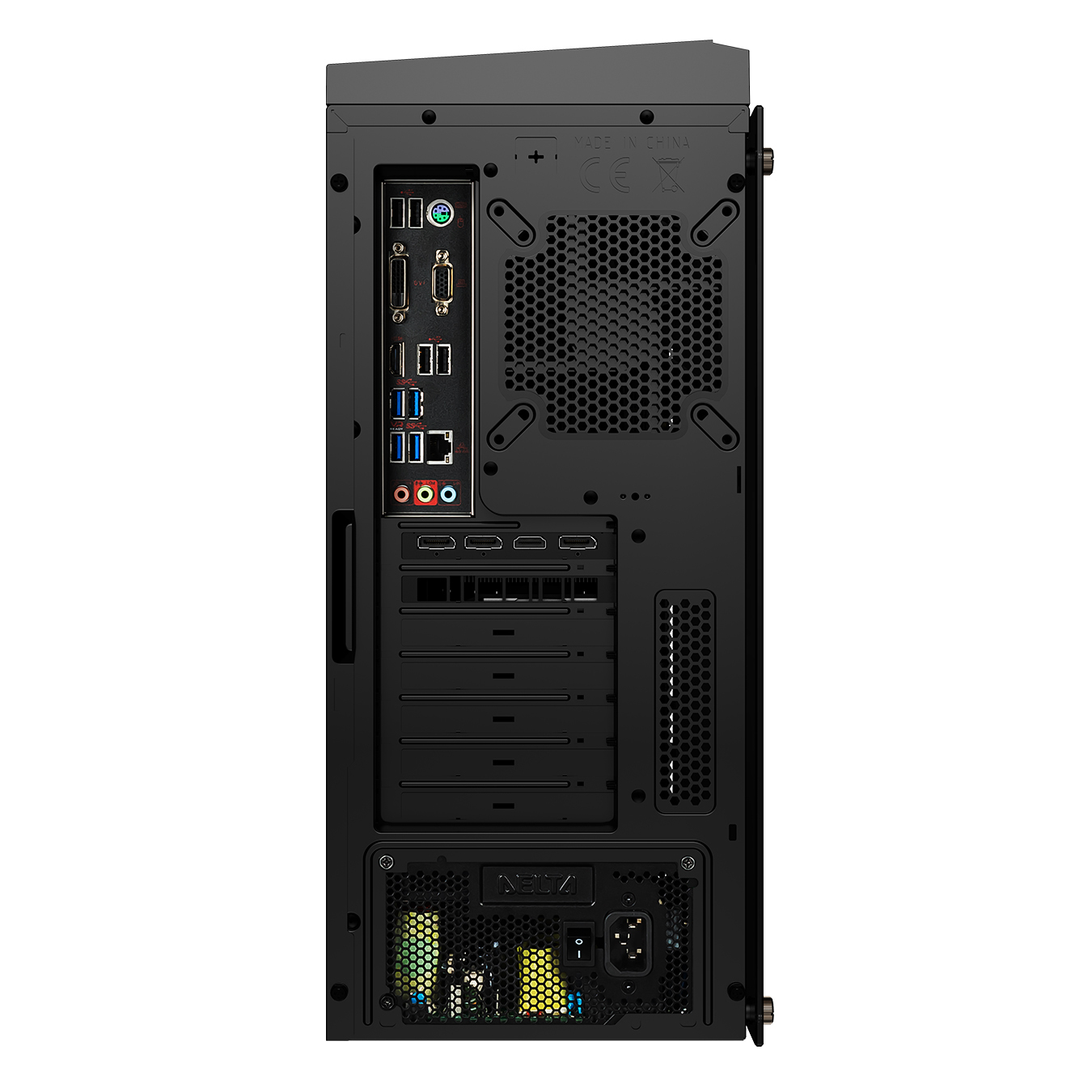

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Volume | 10 L |
| Product colour | Black |
| RGB memory lighting | Yes |
| Viewing window | Yes |
| Country of origin | China |
| Refurbished | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 128 mm |
| Depth | 348 mm |
| Height | 244 mm |
| Weight | 6.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 558 mm |
| Package depth | 281 mm |
| Package height | 365 mm |
| Package weight | 7.4 kg |
Packaging content
| Specification | Value |
|---|---|
| VESA mount included | No |
