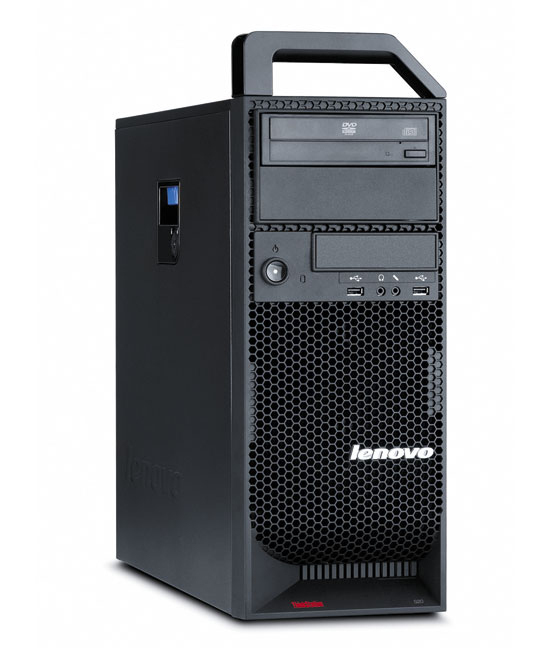

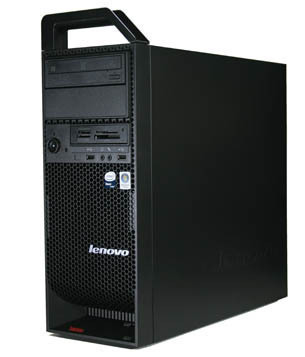

ThinkStation S20 + 22" Monitor

Model ThinkStation S20 + 22" MonitorPart no. 410556U-BNDL

126 specifications

Overview

Brand: Lenovo
Category: PCs/Workstations
Model: ThinkStation S20 + 22" Monitor
Part number: 410556U-BNDL
Also known as: Lenovo ThinkStation S20 + 22" Monitor Intel® Xeon® 3000 Sequence W3520 4 GB DDR3-SDRAM Tower Workstation Black

126 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 3000 Sequence
Processor model	W3520
Processor cores	4
Processor threads	8
Processor boost frequency	2.93 GHz
Processor frequency	2.66 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Processor front side bus	1066 MHz
Bus type	QPI
FSB Parity	No
System bus rate	4.80 GT/s
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Xeon 3500 Series
Processor codename	Bloomfield
Processor system type	Up
Thermal Design Power (TDP)	130 W
Tcase	67.9 °C
Number of QPI links	1
Number of processors installed	1
Processor socket	Socket B (LGA 1366)
Number of Processing Die Transistors	731 M
Processing Die size	263 mm²
CPU multiplier (bus/core ratio)	20
Maximum number of SMP processors	2
Processor core voltage (AC)	0.800 - 1.225 V
Stepping	D0
Maximum internal memory supported by processor	24 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes

Specification	Value
Maximum graphics card memory	0.256 GB
Graphics card	Quadro FX 380
Graphics card manufacturer	NVIDIA

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® X58 Express

Specification	Value
Networking features	Gigabit Ethernet (10/100/1000)

Specification	Value
USB 2.0 ports quantity	10
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	6
Microphone in	Yes
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
eSATA ports quantity	1
Serial ports quantity	1
Parallel ports quantity	0
I/O ports	5x SATA 1x Optical In 1x Optical Out

Specification	Value
Compatible operating systems	Windows XP x64 Linux 5 Red Hat Enterprise

Specification	Value
Display included	Yes
Display diagonal	55.9 cm (22")

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	39718
Processor code	SLBEW
Processor package size	42.5 x 45.0 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
