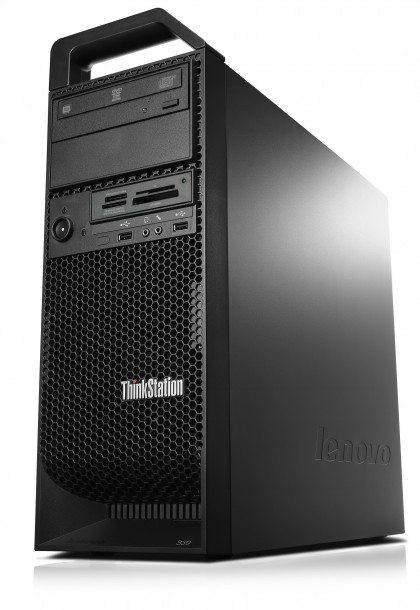

S30 + ThinkVision LT2452p
Model S30 + ThinkVision LT2452pPart no. SV739FR + T20MNEU
99 specifications
- Display61 cm (24")
- ProcessorIntel® Xeon® E5 Family
- Memory4 GB
- Storage1 TB
- TypeWorkstation
- OSWindows 7 Professional
Overview
- Display
- 61 cm (24")
- Processor
- Intel® Xeon® E5 Family
- Memory
- 4 GB
- Storage
- 1 TB
- Type
- Workstation
- OS
- Windows 7 Professional
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- S30 + ThinkVision LT2452p
- Part number
- SV739FR + T20MNEU
- Also known as
- Lenovo ThinkStation S30 + ThinkVision LT2452p Intel® Xeon® E5 Family E5-1607 4 GB DDR3-SDRAM Windows 7 Professional Tower Workstation
Specifications
99 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-1607 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor frequency | 3 GHz |
| Processor cache | 10 MB |
| Processor cache type | L3 |
| Bus type | QPI |
| FSB Parity | No |
| System bus rate | 0 GT/s |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor codename | Sandy Bridge EP |
| Thermal Design Power (TDP) | 130 W |
| Tcase | 64 °C |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 2011 (Socket R) |
| CPU multiplier (bus/core ratio) | 30 |
| Stepping | M1 |
| Maximum internal memory supported by processor | 375 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 2 x 2 GB |
| Memory slots | 8x DIMM |
| Memory clock speed | 1333 MHz |
| ECC | Yes |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Optical drive type | DVD-RW |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Graphics card | No |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® C602 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet (10/100/1000) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 10 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 610 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 61 cm (24") |
| Resolution | 1920 x 1200 pixels |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | Yes |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 64619 |
| Processor code | SR0L8 |
| Processor package size | 52.5 x 45.0 mm |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 460 mm |
| Height | 478 mm |
| Weight | 17.5 kg |
