P700 + NVIDIA Quadro K2200 4 GB

Model P700 + NVIDIA Quadro K2200 4 GBPart no. 30A90009IX+4X60G69027

139 specifications

Overview

Brand: Lenovo
Category: PCs/Workstations
Model: P700 + NVIDIA Quadro K2200 4 GB
Part number: 30A90009IX+4X60G69027
Also known as: Lenovo ThinkStation P700 + NVIDIA Quadro K2200 4 GB Intel Xeon E5 v3 E5-2609V3 8 GB DDR4-SDRAM 1 TB Hybrid-HDD NVIDIA® Quadro® K2200 Windows 7 Professional Towe

139 specifications in 20 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Xeon E5 v3
Processor model	E5-2609V3
Processor cores	6
Processor threads	6
Processor frequency	1.9 GHz
Processor cache	15 MB
Processor cache type	Smart Cache
Bus type	QPI
System bus rate	6.4 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-2600 v3
Processor codename	Haswell
Thermal Design Power (TDP)	85 W
Tcase	70.9 °C
Maximum number of PCI Express lanes	40
PCI Express configurations	x4, x8, x16
PCI Express slots version	3.0
Number of QPI links	2
Number of processors installed	1
Processor socket	LGA 2011-v3
Stepping	M1
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	51 GB/s
ECC supported by processor	Yes

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD±RW
Storage media	Hybrid-HDD
Number of storage drives installed	1
Hybrid-HDD cache type	SSD
Hybrid-HDD capacity	1 TB
HDD interface	SATA III
HDD speed	7200 RPM
HDD size	3.5"
Card reader integrated	Yes
RAID support	Yes
RAID levels	0, 1, 5, 10

Specification	Value
On-board graphics card	No

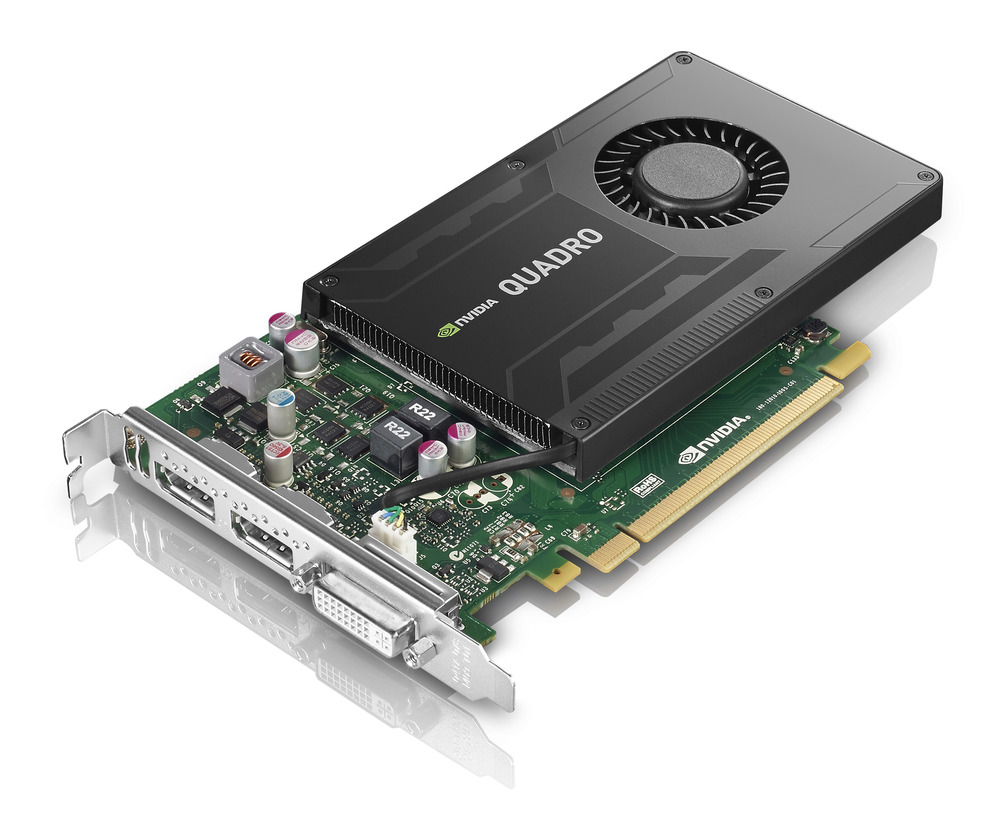

Discrete graphics card model	NVIDIA® Quadro® K2200
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR5
On-board graphics card model	Not available

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C612

Specification	Value
Optical drives quantity	1

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	2
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	Yes
PS/2 ports quantity	2
Serial ports quantity	1

Specification	Value
Power supply	650 W

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 8.1

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	2
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	81897
Processor package size	52.5 x 45 mm
Scalability	2S
Supported instruction sets	AVX 2.0
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Conflict-Free processor	No

Specification	Value
Audio chip	Realtek ALC662

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating altitude	-15.2 - 3048 m
