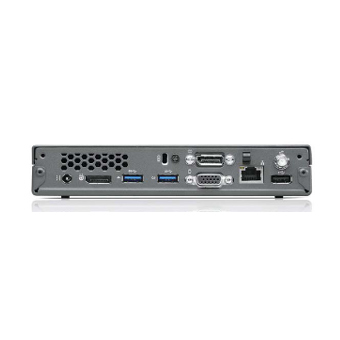

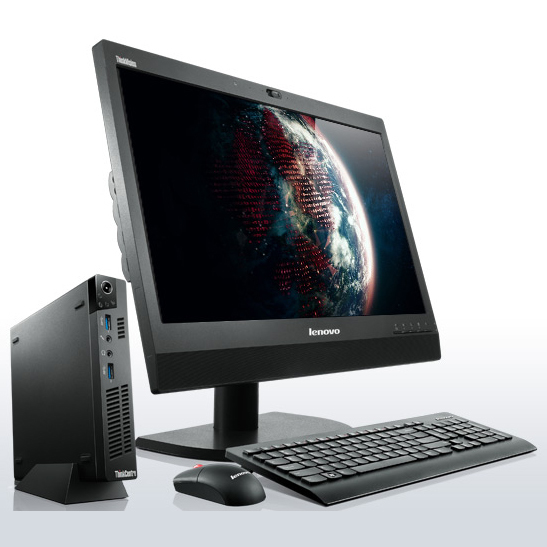

M92 + ThinkVision D186
Model M92 + ThinkVision D186Part no. SD4B7UK+T80ANUK
119 specifications
- Display47 cm (18.5")
- Resolution1366 x 768 pixels
- ProcessorIntel® Core™ i3
- Memory4 GB
- Storage320 GB
- GraphicsNot available
Overview
- Display
- 47 cm (18.5")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Core™ i3
- Memory
- 4 GB
- Storage
- 320 GB
- Graphics
- Not available
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- M92 + ThinkVision D186
- Part number
- SD4B7UK+T80ANUK
- Also known as
- Lenovo ThinkCentre M92 + ThinkVision D186 Intel® Core™ i3 i3-2120T 4 GB DDR3-SDRAM 320 GB HDD Windows 7 Professional USFF PC Black
Specifications
119 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 2nd gen Intel® Core™ i3 |
| Processor model | i3-2120T |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 2.6 GHz |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI |
| System bus rate | 5 GT/s |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor codename | Sandy Bridge |
| Thermal Design Power (TDP) | 35 W |
| Tcase | 65 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1155 (Socket H2) |
| CPU multiplier (bus/core ratio) | 26 |
| Stepping | Q0 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory bandwidth supported by processor (max) | 21 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 1600 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 320 GB |
| Optical drive type | DVD±RW |
| Storage media | HDD |
| Number of HDDs installed | 1 |
| HDD capacity | 320 GB |
| HDD interface | SATA |
| HDD speed | 5400 RPM |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 2000 |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| On-board graphics card ID | 0x102 |
| Graphics card family | Intel |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® Q77 Express |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Design
| Specification | Value |
|---|---|
| Chassis type | USFF |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 47 cm (18.5") |
| Display resolution | 1366 x 768 pixels |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 800:1 |
| Display brightness | 200 cd/m² |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 53427 |
| Processor code | SR060 |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 179 mm |
| Depth | 182 mm |
| Height | 34.5 mm |
| Weight | 4.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| HDD user password | Yes |
| Intel segment tagging | Enterprise, Professional |
