Edge 72 + ThinkVision L1711p

Model Edge 72 + ThinkVision L1711pPart no. RCFDEUK_T47HNUK

132 specifications

Display43.2 cm (17")
Resolution1280 x 1024 pixels
ProcessorIntel® Core™ i7
Memory4 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1280 x 1024 pixels
Processor: Intel® Core™ i7
Memory: 4 GB
Storage: 1 TB
Graphics: Not available

Brand: Lenovo
Category: PCs/Workstations
Model: Edge 72 + ThinkVision L1711p
Part number: RCFDEUK_T47HNUK
Also known as: Lenovo ThinkCentre Edge 72 + ThinkVision L1711p Intel® Core™ i7 i7-3770S 4 GB DDR3-SDRAM 1 TB HDD Windows 7 Professional SFF PC Black

Specifications

132 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	3rd gen Intel® Core™ i7
Processor model	i7-3770S
Processor cores	4
Processor threads	8
Processor boost frequency	3.9 GHz
Processor frequency	3.1 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-3700 Desktop series
Processor codename	Ivy Bridge
Thermal Design Power (TDP)	65 W
Tcase	69.1 °C
PCI Express configurations	1x8, 1x16, 2x4, 2x8
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	31
Stepping	E1
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x DIMM
Memory clock speed	1600 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD±RW
Storage media	HDD
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card ID	0x162

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H61 Express

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

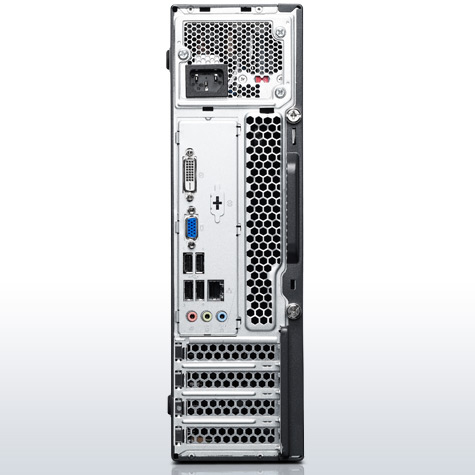

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	0
Serial ports quantity	1
Parallel ports quantity	1

Power

Specification	Value
Power supply	180 W

Design

Specification	Value
Chassis type	SFF
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 8 Pro

Display

Specification	Value
Display included	Yes
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Contrast ratio (typical)	1000:1
Display brightness	250 cd/m²
Viewing angle, horizontal	160°
Viewing angle, vertical	160°

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Secure Key	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	65524
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2011C
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes
