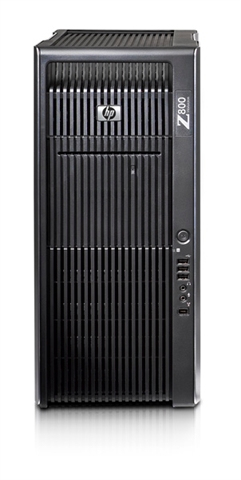

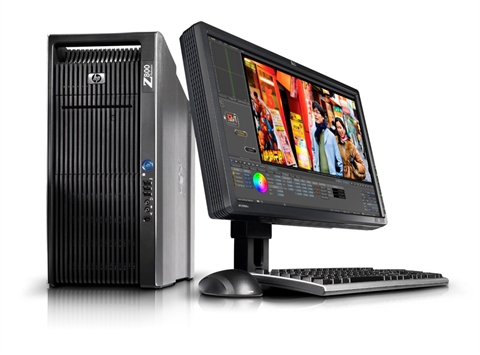

Z800 + LA2205wg
Model Z800 + LA2205wgPart no. KK644EA#UUZ#*B2
102 specifications
- Display55.9 cm (22")
- ProcessorIntel® Xeon® 5000 Sequence
- Memory6 GB
- Storage300 GB
- TypeWorkstation
- OSWindows 7 Professional
Overview
- Display
- 55.9 cm (22")
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 6 GB
- Storage
- 300 GB
- Type
- Workstation
- OS
- Windows 7 Professional
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Z800 + LA2205wg
- Part number
- KK644EA#UUZ#*B2
- Also known as
- HP Z800 + LA2205wg Intel® Xeon® 5000 Sequence X5660 6 GB DDR3-SDRAM Windows 7 Professional Minitower Workstation
Specifications
102 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | X5660 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 3.2 GHz |
| Processor frequency | 2.8 GHz |
| Processor cache | 12 MB |
| Processor cache type | L3 |
| Bus type | QPI |
| FSB Parity | No |
| System bus rate | 6.40 GT/s |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 5600 Series |
| Processor codename | Westmere EP |
| Thermal Design Power (TDP) | 95 W |
| Tcase | 81.3 °C |
| Number of QPI links | 2 |
| Number of processors installed | 1 |
| Processor socket | Socket B (LGA 1366) |
| CPU multiplier (bus/core ratio) | 21 |
| Stepping | B1 |
| Maximum internal memory supported by processor | 288 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory bandwidth supported by processor (max) | 32 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 6 GB |
| Maximum internal memory | 192 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 12x DIMM |
| Memory clock speed | 1333 MHz |
| ECC | Yes |
| Memory channels | Triple-channel |
Storage
| Specification | Value |
|---|---|
| Optical drive type | DVD Super Multi |
| Number of HDDs installed | 1 |
| HDD capacity | 300 GB |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD speed | 15000 RPM |
| Card reader integrated | No |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® 5520 |
Optical drive
| Specification | Value |
|---|---|
| LightScribe | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet (10/100/1000) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 9 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 2 |
| Serial ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 850 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Minitower |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 55.9 cm (22") |
| Resolution | 1680 x 1050 pixels |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 40 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 47921 |
| Processor code | SLBV6 |
| Processor package size | 42.5X45 mm |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 203.5 mm |
| Depth | 526.5 mm |
| Height | 445.1 mm |
| Weight | 19.5 kg |
