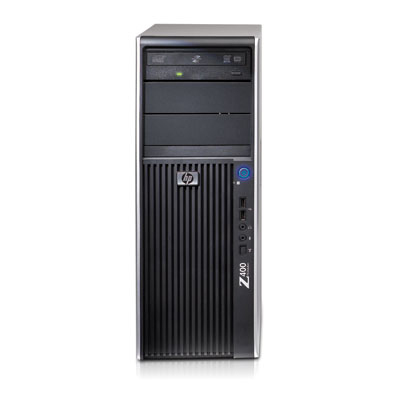

Z400 + NVIDIA Quadro FX 580
Model Z400 + NVIDIA Quadro FX 580Part no. KK613EA#ARL?FX580
101 specifications
- ProcessorIntel® Xeon® 3000 Sequence
- Memory3 GB
- Storage320 GB
- TypeWorkstation
- OSWindows 7 Professional
- Weight13.5 kg
Overview
- Processor
- Intel® Xeon® 3000 Sequence
- Memory
- 3 GB
- Storage
- 320 GB
- Type
- Workstation
- OS
- Windows 7 Professional
- Weight
- 13.5 kg
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Z400 + NVIDIA Quadro FX 580
- Part numbers
- KK613EA#ARL?FX580, KK548ET+FY945ET, KK546ET+FY945ET, KK547ET+FY945ET
- Also known as
- HP Z400 + NVIDIA Quadro FX 580 Intel® Xeon® 3000 Sequence W3520 3 GB DDR3-SDRAM Windows 7 Professional Minitower Workstation
Specifications
101 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 3000 Sequence |
| Processor model | W3520 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 2.93 GHz |
| Processor frequency | 2.66 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor front side bus | 1066 MHz |
| Bus type | QPI |
| FSB Parity | No |
| System bus rate | 4.80 GT/s |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 3500 Series |
| Processor codename | Bloomfield |
| Processor system type | Up |
| Thermal Design Power (TDP) | 130 W |
| Tcase | 67.9 °C |
| Number of QPI links | 1 |
| Number of processors installed | 1 |
| Processor socket | Socket B (LGA 1366) |
| Number of Processing Die Transistors | 731 M |
| Processing Die size | 263 mm² |
| CPU multiplier (bus/core ratio) | 20 |
| Processor core voltage (AC) | 0.800 - 1.225 V |
| Stepping | D0 |
| Maximum internal memory supported by processor | 24 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 3 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 6x DIMM |
| Memory clock speed | 1333 MHz |
| ECC | Yes |
| Memory channels | Triple-channel |
Storage
| Specification | Value |
|---|---|
| HDD capacity | 320 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® X58 Express |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power supply | 475 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Minitower |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 36 bit |
| Processor ARK ID | 39718 |
| Processor code | SLBEW |
| Processor package size | 42.5 x 45.0 mm |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 168 mm |
| Depth | 455.3 mm |
| Height | 450.2 mm |
| Weight | 13.5 kg |
