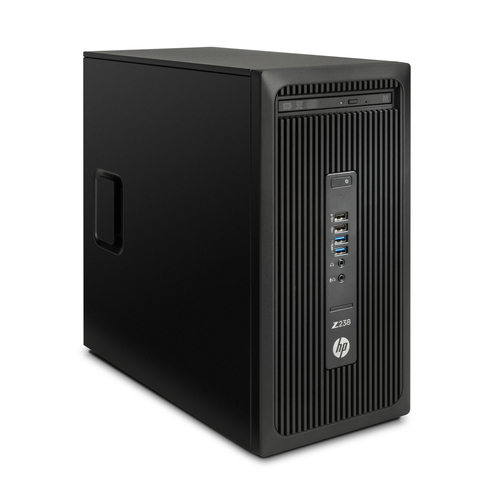

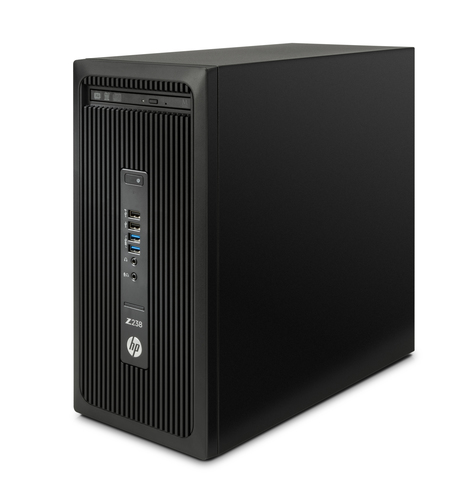

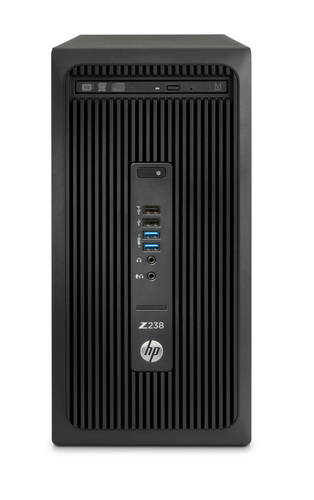

Z238 Intel® Core™ i5 i5-7500

4 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Micro Tower Workstation Black

Model Z238Part no. 2WU78ESEAN 192018753853

133 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: Z238
Part numbers: 2WU78ES, 2WU79ES
EAN / UPC: 192018753853, 192018753969
Also known as: HP Z238 Intel® Core™ i5 i5-7500 4 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Micro Tower Workstation Black

133 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	7th gen Intel® Core™ i5
Processor model	i5-7500
Processor cores	4
Processor threads	4
Processor boost frequency	3.8 GHz
Processor frequency	3.4 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Bus type	DMI3
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-7500 Desktop Series
Processor codename	Kaby Lake
Thermal Design Power (TDP)	65 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Number of QPI links	0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Stepping	B0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
ECC supported by processor	No
Memory voltage supported by processor	1.35 V

Specification	Value
Total storage capacity	256 GB
Optical drive type	DVD Super Multi
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	SATA
RAID support	Yes
RAID levels	0, 1

Specification	Value
On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics 630
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	5912
On-board graphics card OpenGL version	4.4

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C236

Specification	Value
Optical drives quantity	1

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	3
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
DVI port	No
PS/2 ports quantity	2
Serial ports quantity	1

Specification	Value
Number of 3.5" bays	2

Specification	Value
Power supply	280 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Processor ARK ID	97123
Processor code	SR335
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes
