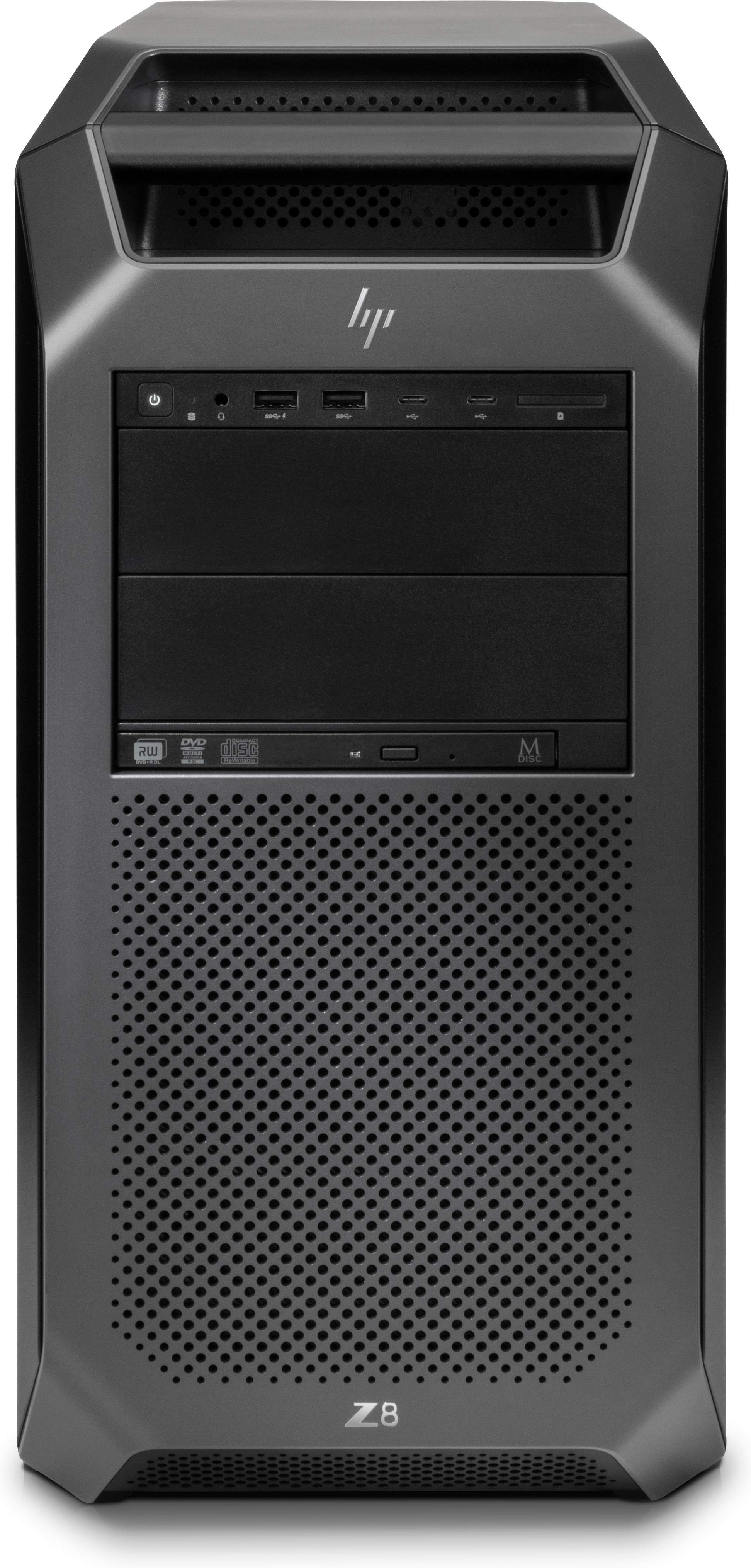

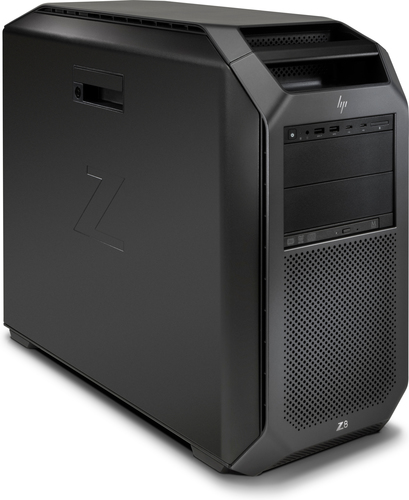

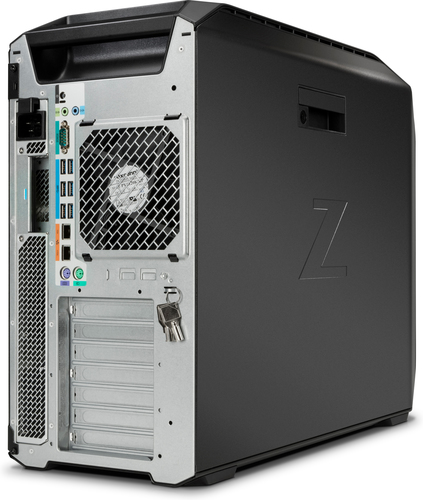

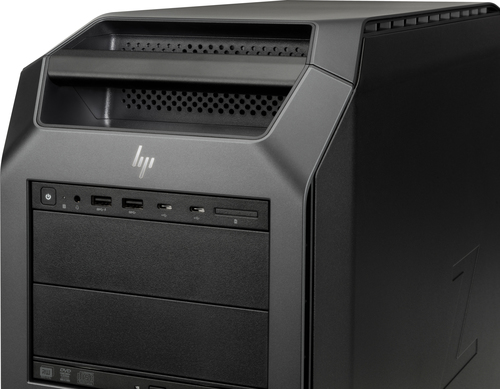

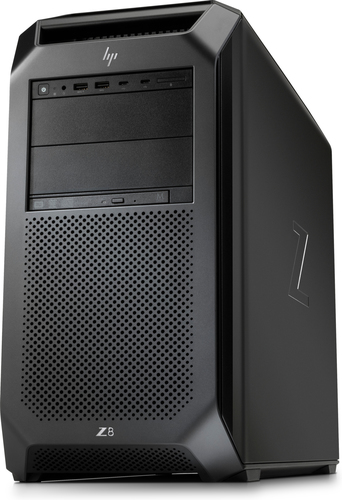

Workstation Z8 G4 Tower 6QN82EA
Model Workstation Z8 G4 Tower 6QN82EAPart no. 6QN82EA#ABBEAN 193808856150
92 specifications
- ProcessorIntel® Xeon® Gold
- Memory64 GB
- Storage256 GB
- GraphicsNot available
- TypeWorkstation
- OSWindows 10 Pro
Overview
- Processor
- Intel® Xeon® Gold
- Memory
- 64 GB
- Storage
- 256 GB
- Graphics
- Not available
- Type
- Workstation
- OS
- Windows 10 Pro
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Workstation Z8 G4 Tower 6QN82EA
- Part numbers
- 6QN82EA#ABB, 6QN82EA
- EAN / UPC
- 193808856150, 193808849770, 193808850110, 193808850127 +16 more
- Also known as
- HP Workstation Z8 G4 Tower 6QN82EA Intel® Xeon® Gold 5120 64 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Black
Specifications
92 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 5120 |
| Processor cores | 14 |
| Processor threads | 28 |
| Processor boost frequency | 3.2 GHz |
| Processor frequency | 2.2 GHz |
| Processor cache | 4 MB |
| Processor cache type | L2 |
| Processor front side bus | 1066 MHz |
| Bus type | FSB |
| FSB Parity | Yes |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 65 °C |
| Number of processors installed | 1 |
| Processor socket | LGA 771 (Socket J) |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| CPU multiplier (bus/core ratio) | 7 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 4 x 16 GB |
| Memory slots | 24x DIMM |
| Memory clock speed | 2666 MHz |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | DVD±RW |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD memory type | TLC |
| NVMe | Yes |
| SSD interface | NVMe |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Microphone in | No |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| PS/2 ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 2 |
| PCI Express x8 slots | 3 |
| PCI Express x16 slots | 4 |
Power
| Specification | Value |
|---|---|
| Power supply | 1700 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Placement supported | Vertical |
| Product colour | Black |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | No |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 27215 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
Brand-specific features
| Specification | Value |
|---|---|
| HP segment | Business |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek HD ALC221 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215.9 mm |
| Depth | 551.2 mm |
| Height | 444.5 mm |
| Weight | 22.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| Power cord included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84715000 |
