Station de travail Z440

Model Station de travail Z440Part no. Y3Y35ETEAN 190780711118

132 specifications

Overview

132 specifications in 19 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 v4
Processor model	E5-1603V4
Processor cores	4
Processor threads	4
Processor frequency	2.8 GHz
Processor cache	10 MB
Processor cache type	Smart Cache
Bus type	QPI
System bus rate	0 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-1600 v4
Processor codename	Broadwell
Thermal Design Power (TDP)	140 W
Tcase	69 °C
Maximum number of PCI Express lanes	40
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 2011-v3
Maximum internal memory supported by processor	1.54 TB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	68 GB/s
ECC supported by processor	Yes

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD Super Multi
Storage media	HDD
Number of storage drives installed	1
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA III
HDD speed	7200 RPM
Card reader integrated	Yes
RAID support	Yes
RAID levels	0, 1, 10

Specification	Value
On-board graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Not available

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C612
Compatible processor series	Intel® Xeon®
BIOS type	UEFI
Trusted Platform Module (TPM)	Yes

Specification	Value
Optical drives quantity	1

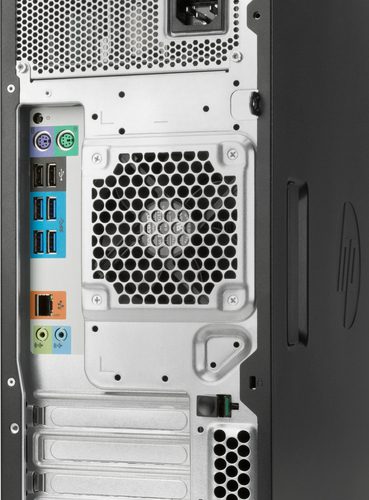

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
PS/2 ports quantity	2

Specification	Value
Power supply	700 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Bundled software	HP Performance Advisor, HP Remote Graphics Software (RGS) 7.1, PDF Complete - Corporate Edition, Cyberlink Power DVD and Power2Go, HP PC Hardware Diagnostics UEFI, HP Client Security Software, Buy Office

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Flex Memory Access	No
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	93100
Processor package size	52.5 x 51 mm
Scalability	1S
Supported instruction sets	AVX 2.0
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes

Specification	Value
Audio chip	Realtek ALC221

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	8 - 85%
Storage relative humidity (H-H)	8 - 90%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 9144 m
