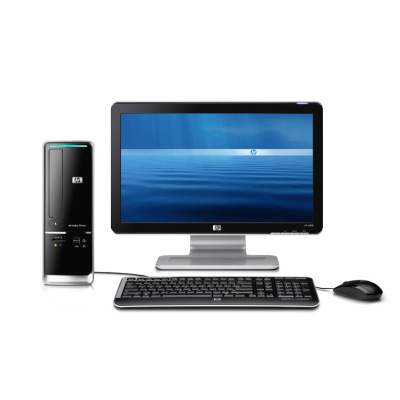

Pavilion Slimline s5500la + Monitor
Model Pavilion Slimline s5500la + MonitorPart no. VT697AA + MONITOR
107 specifications
- ProcessorIntel® Pentium®
- Memory2 GB
- Storage500 GB
- GraphicsIntel® GMA X4500HD
- TypePC
- OSWindows 7 Home Basic
Overview
- Processor
- Intel® Pentium®
- Memory
- 2 GB
- Storage
- 500 GB
- Graphics
- Intel® GMA X4500HD
- Type
- PC
- OS
- Windows 7 Home Basic
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Pavilion Slimline s5500la + Monitor
- Part number
- VT697AA + MONITOR
- Also known as
- HP Pavilion Slimline s5500la + Monitor Intel® Pentium® E5400 2 GB DDR3-SDRAM 500 GB Intel® GMA X4500HD Windows 7 Home Basic Desktop PC Black
Specifications
107 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® |
| Processor model | E5400 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.7 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium E5000 Series for Desktop |
| Processor codename | Wolfdale |
| Thermal Design Power (TDP) | 45, 65 |
| Tcase | 74.1 °C |
| Number of processors installed | 1 |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 228 M |
| Processing Die size | 82 mm² |
| CPU multiplier (bus/core ratio) | 13.5 |
| Stepping | R0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 2x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | DVD Super Multi |
| Number of HDDs installed | 1 |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
| Floppy drive installed | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Intel® GMA X4500HD |
| Graphics card family | Intel |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Wi-Fi | No |
| Networking features | Fast Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 220 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Product colour | Black |
| External drive bays | 1x 5.25" |
| Internal drive bays | 1x 3.5" |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Basic |
| Trial software | Norton Internet Security 2010 (60) |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | 2 |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 40478 |
| Processor code | SLGH7 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 113 mm |
| Depth | 404 mm |
| Height | 311 mm |
| Weight | 9.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | No |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
