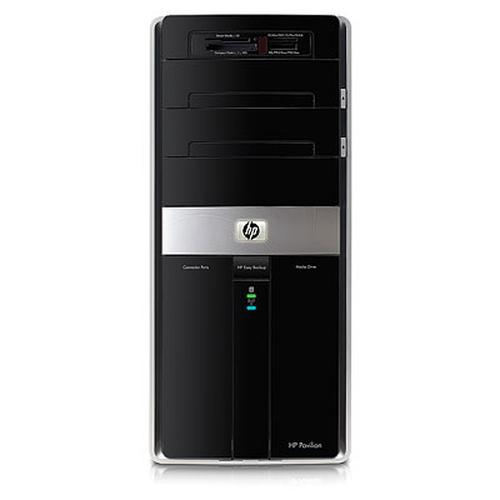

HP Pavilion Elite m9740nl Desktop PC
Model Pavilion Elite m9740nl Desktop PCPart no. VC974AA#ABH
91 specifications
- ProcessorIntel® Core™2 Quad
- Memory6 GB
- Storage640 GB
- GraphicsNVIDIA® GeForce® GT 220
- TypePC
- OSWindows Vista Home Premium
Overview
- Processor
- Intel® Core™2 Quad
- Memory
- 6 GB
- Storage
- 640 GB
- Graphics
- NVIDIA® GeForce® GT 220
- Type
- PC
- OS
- Windows Vista Home Premium
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Pavilion Elite m9740nl Desktop PC
- Part number
- VC974AA#ABH
- Also known as
- HP Pavilion Elite m9740nl Desktop PC Intel® Core™2 Quad Q9300 6 GB DDR3-SDRAM 640 GB NVIDIA® GeForce® GT 220 Windows Vista Home Premium Micro Tower
Specifications
91 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Quad |
| Processor model | Q9300 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor frequency | 2.5 GHz |
| Processor cache | 6 MB |
| Processor cache type | L2 |
| Processor front side bus | 1333 MHz |
| Bus type | FSB |
| FSB Parity | Yes |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Quad Q9000 Series for Desktop |
| Processor codename | Yorkfield |
| Thermal Design Power (TDP) | 95 W |
| Tcase | 71.4 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 456 M |
| Processing Die size | 164 mm² |
| CPU multiplier (bus/core ratio) | 7.5 |
| Stepping | M1 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 6 GB |
| Internal memory type | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 640 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® GT 220 |
| Discrete graphics card memory | 1 GB |
| Maximum graphics card memory | 3.07 GB |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Optical drive
| Specification | Value |
|---|---|
| LightScribe | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Micro Tower |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Home Premium |
| Bundled software | Microsoft Internet Explorer 7.0; Windows Mail; HP MediaSmart suite: Muziek, video, dvd, foto; Windows Photo Gallery; Windows Media Player; Windows Movie Maker, Windows DVD Maker; Cyberlink DVDSuite; Windows Media Center |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 33922 |
| Processor code | SLAWE |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio 7.1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 178 mm |
| Depth | 422 mm |
| Height | 394 mm |
| Weight | 15 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 17 kg |
Features
| Specification | Value |
|---|---|
| TV tuner type | Analogue & DVB-T |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | Yes |
Compare HP Pavilion Elite m9740nl Desktop PC
Compare any products- HP Pavilion Elite m9740nl Desktop PC vsHP Pavilion p6120nl-m Desktop PC BundleCompare specs
- HP Pavilion Elite m9740nl Desktop PC vsHP Pavilion Elite m9751nl Desktop PCCompare specs

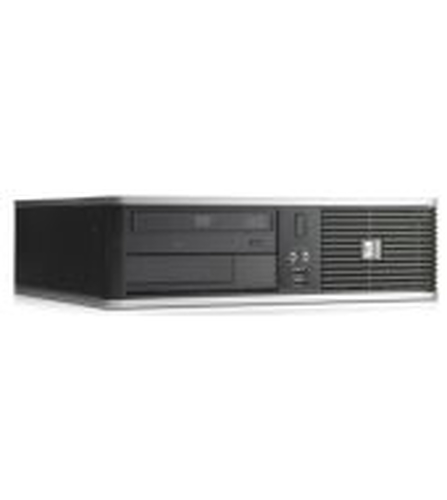

- HP Pavilion Elite m9740nl Desktop PC vsHP dc7900 SFFCompare specs

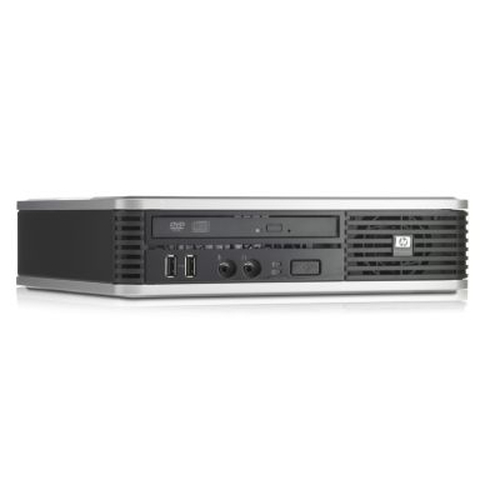

- HP Pavilion Elite m9740nl Desktop PC vsHP dc7900 Ultra-slim Desktop PCCompare specs

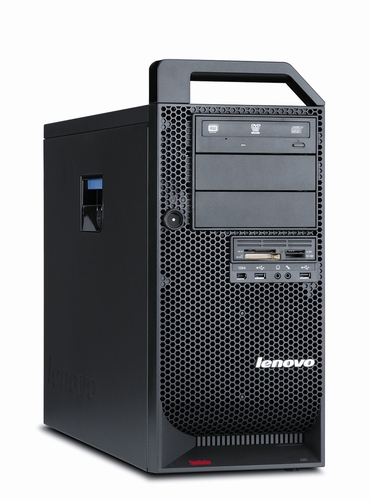

- HP Pavilion Elite m9740nl Desktop PC vsLenovo ThinkStation D20 (415521G), FRCompare specs

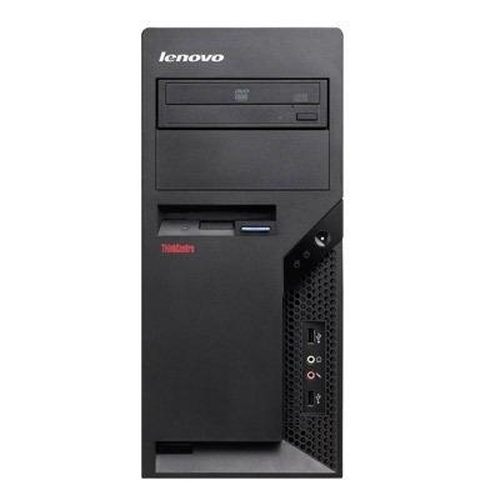

- HP Pavilion Elite m9740nl Desktop PC vsLenovo ThinkCentre A58 Tower (75157FG), FRCompare specs

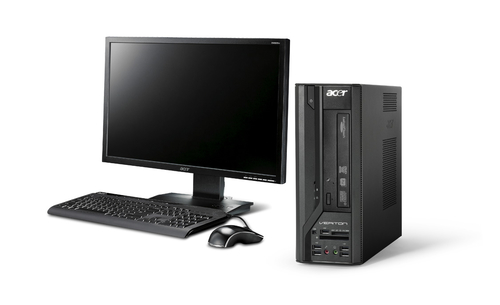

- HP Pavilion Elite m9740nl Desktop PC vsAcer Veriton X270 + V193WBbCompare specs

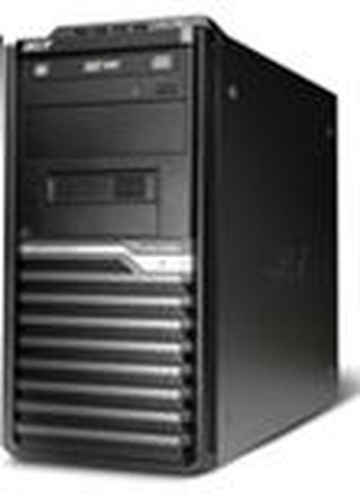

- HP Pavilion Elite m9740nl Desktop PC vsAcer Veriton M421GCompare specs
