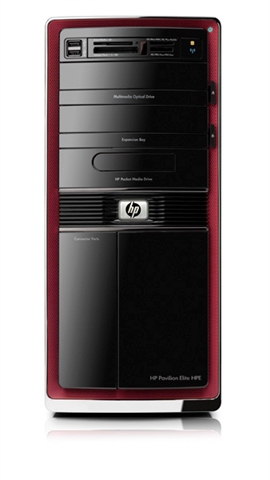

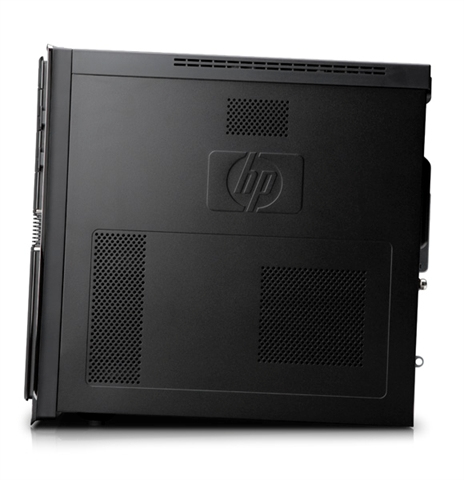

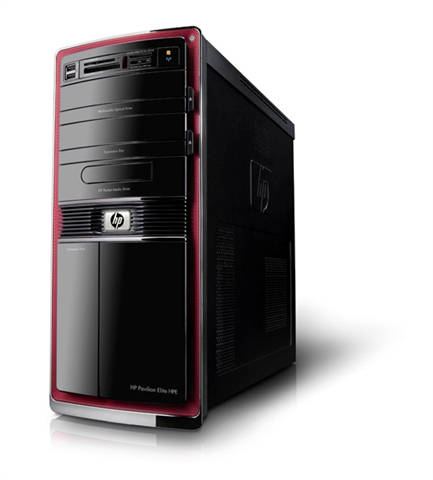

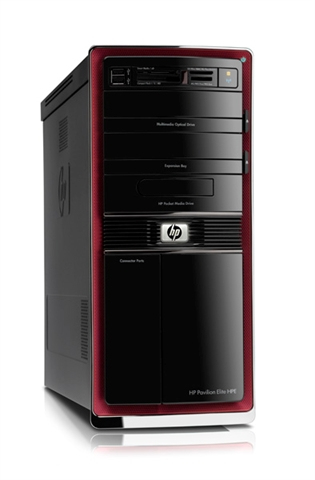

Pavilion Elite HPE-130be
Model Pavilion Elite HPE-130bePart no. WC702AAEAN 884962728659
112 specifications
- ProcessorIntel® Core™ i7
- Memory8 GB
- Storage3 TB
- GraphicsNVIDIA® GeForce® GTX 260
- TypePC
- OSWindows 7 Home Premium
Overview
- Processor
- Intel® Core™ i7
- Memory
- 8 GB
- Storage
- 3 TB
- Graphics
- NVIDIA® GeForce® GTX 260
- Type
- PC
- OS
- Windows 7 Home Premium
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Pavilion Elite HPE-130be
- Part number
- WC702AA
- EAN / UPC
- 884962728659
- Also known as
- HP Pavilion Elite HPE-130be Intel® Core™ i7 i7-860 8 GB DDR3-SDRAM 3 TB NVIDIA® GeForce® GTX 260 Windows 7 Home Premium Micro Tower PC
Specifications
112 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 |
| Processor model | i7-860 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.46 GHz |
| Processor frequency | 2.8 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor front side bus | 1333 MHz |
| Bus type | DMI |
| FSB Parity | No |
| System bus rate | 2.5 GT/s |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-800 Desktop Series |
| Processor codename | Lynnfield |
| Thermal Design Power (TDP) | 95 W |
| Tcase | 72.7 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8 |
| PCI Express slots version | 2.0 |
| Processor socket | LGA 1156 (Socket H) |
| Number of Processing Die Transistors | 774 M |
| Processing Die size | 296 mm² |
| CPU multiplier (bus/core ratio) | 21 |
| Maximum internal memory supported by processor | 16 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 3 TB |
| Total HDDs capacity | 3 TB |
| Number of HDDs installed | 2 |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, MS Duo, MS Pro, MS Pro Duo, SD, xD |
| Floppy drive installed | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| Discrete graphics card model | NVIDIA® GeForce® GTX 260 |
| Discrete graphics card memory | 1.792 GB |
| Maximum graphics card memory | 5.374 GB |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® H57 Express |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Networking features | Gigabit Ethernet |
| Wireless technology | IEEE 802.11b/g/n |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 2 |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Micro Tower |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 36 bit |
| Processor ARK ID | 41316 |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 179 mm |
| Depth | 422 mm |
| Height | 401 mm |
| Weight | 11.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | No |
Features
| Specification | Value |
|---|---|
| TV tuner type | Analogue & DVB-T |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | Yes |
